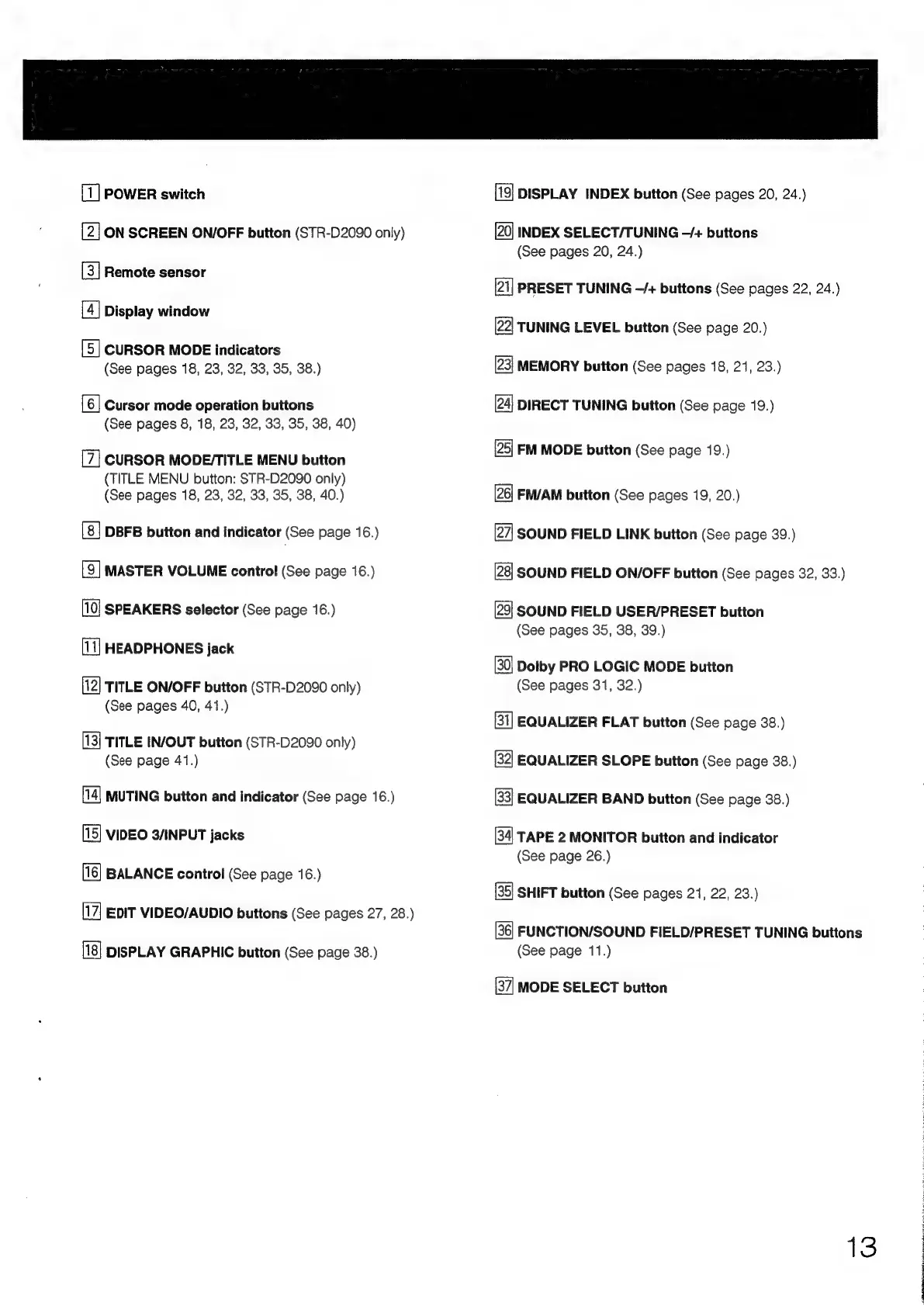

Sony STR-D2090 - Front Panel Button Functions

[7] POWER switch
ON SCREEN ON/OFF button (STR-D2090 only)
Remote sensor
>
[4] Display window
ol
[5] CURSOR MODE indicators
(See pages 18, 23, 32, 33, 35, 38.)
[2]
Cursor mode operation buttons
(See pages 8, 18, 23, 32, 33, 35, 38, 40)
S]
CURSOR MODE/TITLE MENU button
(TITLE MENU button: STR-D2090 only)
(See pages 18, 23, 32, 33, 35, 38, 40.)
[8] DBFB button and indicator (See page 16.)
[9] MASTER VOLUME control (See page 16.)
[10] SPEAKERS selector (See page 16.)
[17] HEADPHONES jack
TITLE ON/OFF button (STR-D2090 only)
(See pages 40, 41.)
TITLE IN/OUT button (STR-D2090 only)
(See page 41.)
[14] MUTING button and indicator (See page 16.)
[15] VIDEO 3ANPUT jacks
[16] BALANCE control (See page 16.)
[17] EDIT VIDEO/AUDIO buttons (See pages 27, 28.)
[18] DISPLAY GRAPHIC button (See page 38.)
DISPLAY INDEX button (See pages 20, 24.)
INDEX SELECT/TUNING -/+ buttons
(See pages 20, 24.)
[21] PRESET TUNING -/+ buttons (See pages 22, 24.)
[22] TUNING LEVEL button (See page 20.)
[23] MEMORY button (See pages 18, 21, 23.)
[24] DIRECT TUNING button (See page 19.)
FM MODE button (See page 19.)
[26] FM/AM button (See pages 19, 20.)
(27| SOUND FIELD LINK button (See page 39.)
28) SOUND FIELD ON/OFF button (See pages 32, 33.)
23] SOUND FIELD USER/PRESET button
(See pages 35, 38, 39.)
[30] Dolby PRO LOGIC MODE button
(See pages 31, 32.)
w
[31] EQUALIZER FLAT button (See page 38.)
[32] EQUALIZER SLOPE button (See page 38.)
[33] EQUALIZER BAND button (See page 38.)
[34] TAPE 2 MONITOR button and indicator
(See page 26.)
[35] SHIFT button (See pages 21, 22, 23.)
[36] FUNCTION/SOUND FIELD/PRESET TUNING buttons
(See page 11.)
[37] MODE SELECT button
