Sony STR-DA3200ES - Exploded Views of Unit Components; Case Section Exploded View

124
STR-DA3200ES/DG1000
#1
#1
VIDEO board block
(DA3200ES: US, CND/
DG1000)
not supplied
#1
DISPLAY board block
1
2
7
3
3
7
not supplied
not supplied
4
4
8
8
8
6
5
5
5
5
(DA3200ES: AEP, UK)
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-698-310-01 LID (A2) (BLACK)
1 2-698-310-11 LID (A2) (SILVER)
2 2-668-102-11 CASE (BLACK)
2 2-668-102-31 CASE (SILVER)
3 4-227-843-03 SCREW (TP), FLAT HEAD (for BLACK)
3 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER)
4 3-655-653-11 BAND (TAITON), BINDING
5 3-302-708-11 COVER, CONNECTOR
(for pin jack of rear panel)(DA3200ES: AEP, UK)
6 1-400-061-11 CORE, FERRITE (CLAMP FILTER)
(DA3200ES: US, CND/DG1000)
7 2-580-630-01 SCREW +BVST 4X8 (for BLACK)
7 7-685-881-04 SCREW +BVTT 4X8 (S) (for SILVER)
8 3-655-653-21 BAND (TAITON), BINDING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

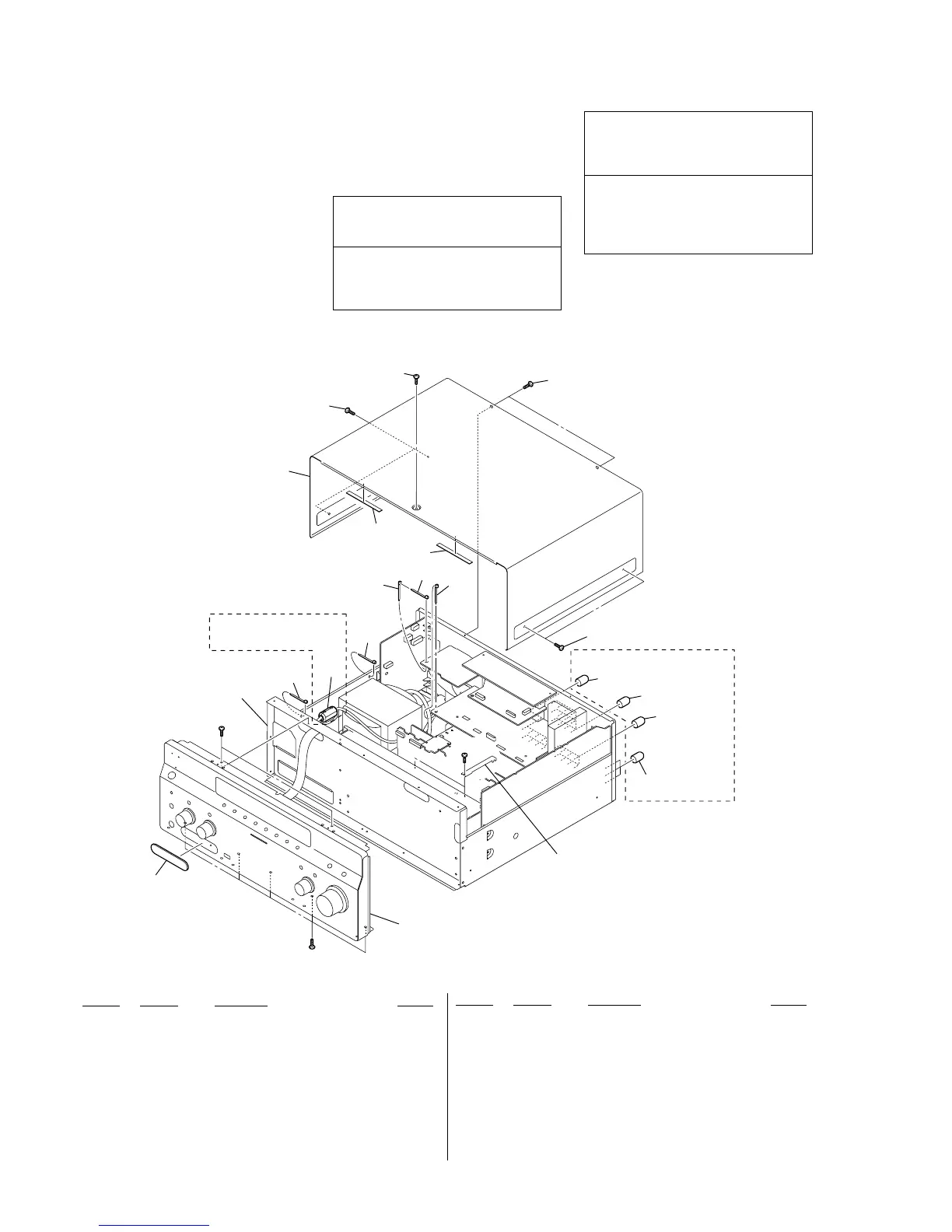

7-1. CASE SECTION
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
CND : Canadian model
TW : Taiwan model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• The mechanical parts with no reference
number in the exploded views are not supplied.
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque 9
contiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et /
ou réparé.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
