Sony STR-DA3200ES - MAIN Board Block

129
STR-DA3200ES/DG1000

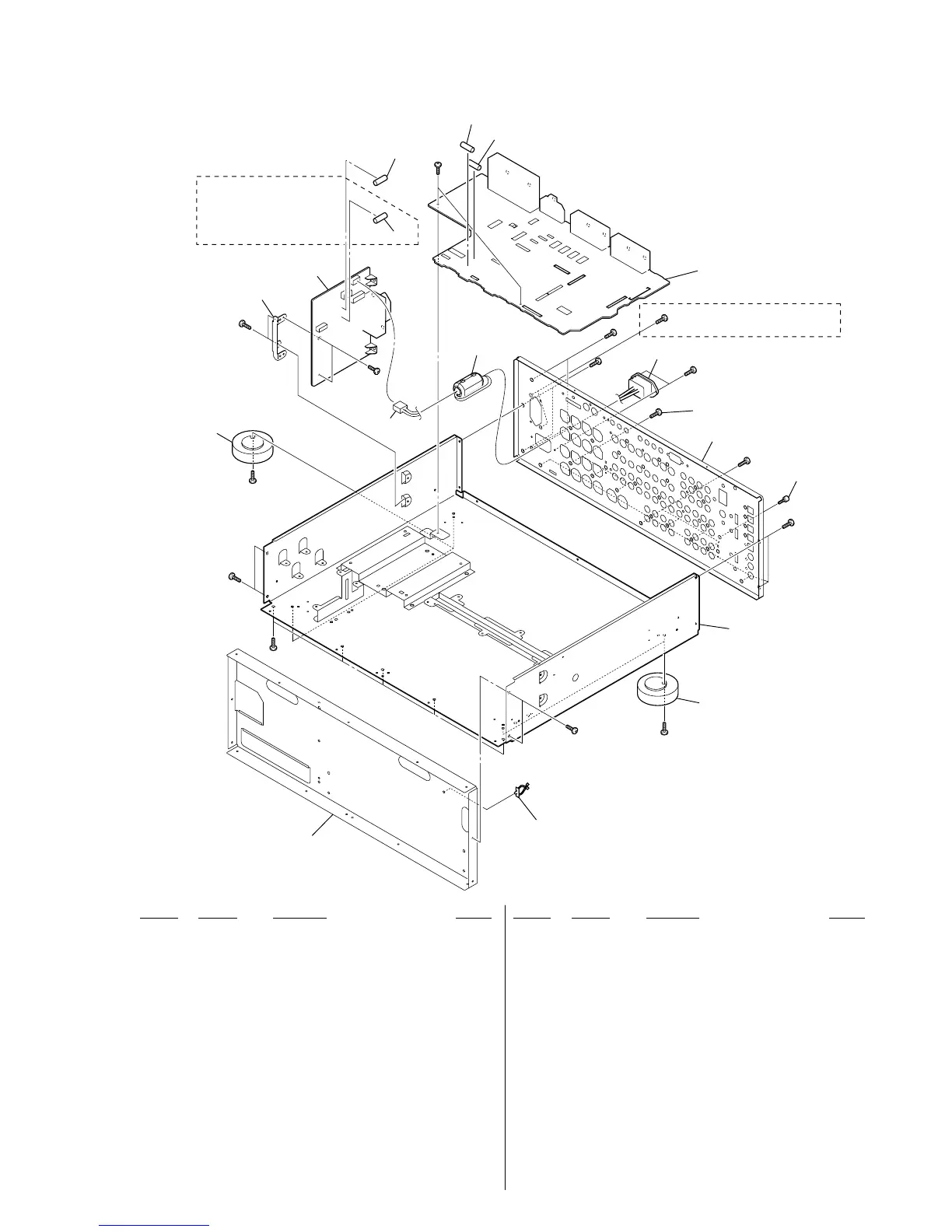

7-6. MAIN BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 X-4955-348-1 FOOT ASSY
252 A-1182-298-A AC BOARD, COMPLETE (DA3200ES: AEP)
252 A-1183-456-A AC BOARD, COMPLETE
(DA3200ES: US, CND/DG1000)
252 A-1183-637-A AC BOARD, COMPLETE (DA3200ES: TW)
252 A-1197-514-A AC BOARD, COMPLETE (DA3200ES: UK)
253 A-1183-224-A MAIN BOARD, COMPLETE
(DA3200ES: AEP, UK)
253 A-1183-450-A MAIN BOARD, COMPLETE
(DA3200ES: US, CND, TW/DG1000)
254 1-500-824-11 FERRITE CORE
256 3-704-515-51 SCREW (BV/RING)
257 4-947-010-01 SCREW, FEEDER FIXED
0 F01 1-532-504-33 FUSE (T4AL/250V) (DA3200ES: AEP, UK)
0 F01 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(DA3200ES: US, CND/DG1000)
0 F01 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
(DA3200ES: TW)
0 F02 1-532-464-33 FUSE (T2.5AL/250V) (DA3200ES: AEP)
0 F02 1-533-420-12 FUSE, GLASS CYLINDRICAL(DIA.5) (5A/125V)
(DA3200ES: US, CND/DG1000)
0 F1403 1-532-504-33 FUSE (T4AL/250V)
0 F1404 1-532-504-33 FUSE (T4AL/250V)
0 J01 1-820-651-11 INLET, AC 2P (~AC IN)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-885-09 SCREW +BVTT 4X16 (S)
#5 2-580-644-01 SCREW, +KTP2 3X8 (DG1000)
#5 7-685-246-19 SCREW +KTP 3X8 TYPE2 NON-SLIT
(DA3200ES)
253
252
254
257
256
251
251
not supplied
not
supplied
F01
F1403
F1404
J01
F02
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#4
#4
#1
#1
#5
(DA3200ES: US, CND,
AEP, UK/DG1000)
(DA3200ES: US, CND, AEP/
DG1000)
