Sony STR-DA3200ES Service Manual

128
STR-DA3200ES/DG1000
204
202
203
205
206
207
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#3
#1
#1
#1
#1
#1
#1
not supplied
not supplied
HDMI board
not
supplied
(DA3200ES: US, CND/
DG1000)
(DA3200ES:
US, CND/
DG1000)
not supplied
MAIN board block
heat sink block
not supplied
(SP TERMINAL board
)
not
supplied
not
supplied
not supplied
not supplied
209
208
not supplied
not supplied

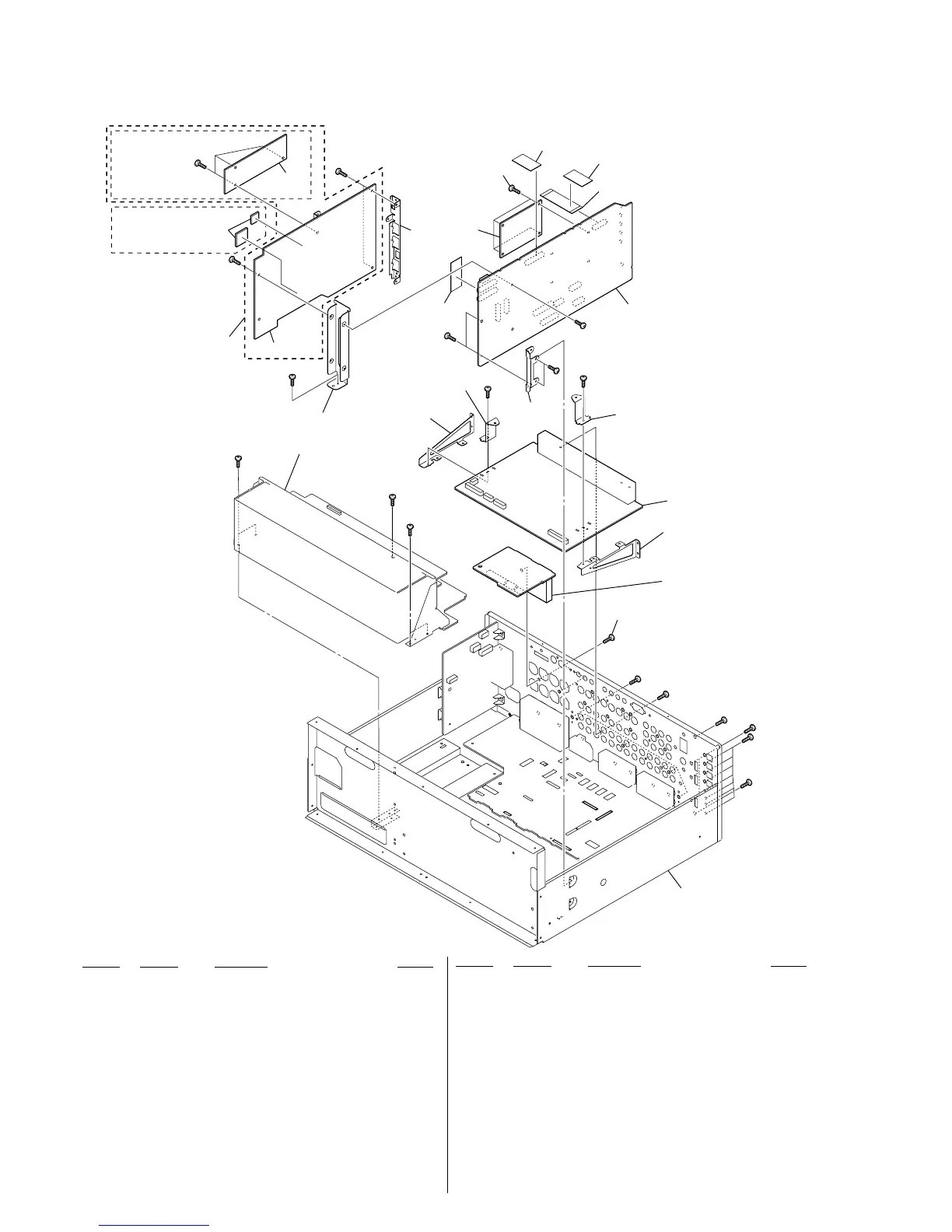

7-5. ANALOG BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
202 A-1182-351-A DSP BOARD, COMPLETE
203 3-087-053-01 +BVTP2.6 (3CR)
204 1-828-964-51 WIRE (FLAT TYPE) (11 CORE)
(DA3200ES: US, CND, TW/DG1000)
204 1-828-981-51 WIRE (FLAT TYPE) (15 CORE)
(DA3200ES: AEP, UK)
205 A-1183-236-A DIGITAL BOARD, COMPLETE
(DA3200ES: AEP, UK)
205 A-1183-464-A DIGITAL BOARD, COMPLETE
(DA3200ES: US, CND)
205 A-1183-644-A DIGITAL BOARD, COMPLETE (DA3200ES: TW)
205 A-1202-209-A DIGITAL BOARD, COMPLETE (DG1000)
206 A-1183-233-A ANALOG BOARD, COMPLETE
(DA3200ES: AEP, UK, TW)
206 A-1183-461-A ANALOG BOARD, COMPLETE
(DA3200ES: US, CND/DG1000)
207 3-704-515-51 SCREW (BV/RING)
9 208 A-1212-138-A HDMI BOARD, COMPLETE (for SERVICE)
(DA3200ES: AEP, UK, TW)
9 208 A-1212-139-A HDMI BOARD, COMPLETE (for SERVICE)
(Including XM board) (DA3200ES: US, CND/
DG1000)
209 A-1183-270-A XM BOARD, COMPLETE
(Included in HDMI board) (DA3200ES: US, CND/
DG1000)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-547-04 SCREW +B 3X6

Sony STR-DA3200ES Specifications

Audio

impedance	8 Ohm
channel power rating	120 Watts X 7 Amp
zones	2 Zone/2 Room

Inputs and Outputs

s-video outputs	1 (Rear)
composite video outputs	3 (Rear)
optical audio outputs	1 (Rear)

Power

power requirements	AC 120V, 60 Hz
power consumption (in operation)	TBD
power consumption (in standby)	TBD

Weight and Dimensions

weight	34 lbs 3oz (15.5kg)
measurements	17" x 7" x 17" (430mm x 175mm x 430mm)
color	Black
