Sony STR-DA3200ES - DISPLAY Board Block

125
STR-DA3200ES/DG1000

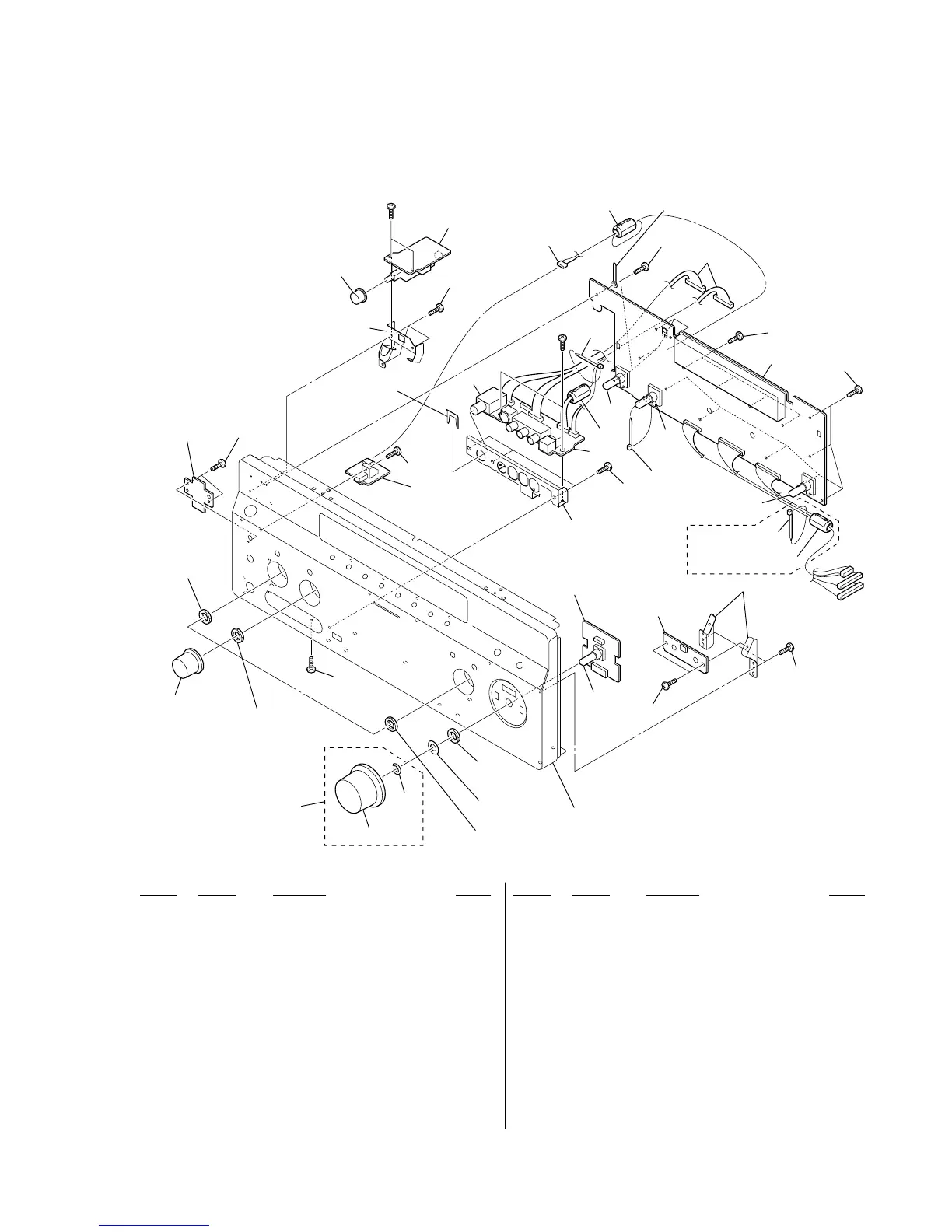

7-2. DISPLAY BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4955-650-1 KNOB (VOL) ASSY (SILVER)
51 X-4955-657-1 KNOB (VOL) ASSY (BLACK)
52 3-704-515-22 SCREW (BV/RING)
53 2-661-141-31 MENU KNOB (BLACK)
53 2-661-141-41 MENU KNOB (SILVER)
54 3-087-053-01 +BVTP2.6 (3CR)
55 1-543-793-11 FILTER, CLAMP (FERRITE CORE)
56 X-4955-616-1 BUTTON (POWER) ASSY (BLACK)
56 X-4955-618-1 BUTTON (POWER) ASSY (SILVER)
57 A-1182-363-A VIDEO 3 BOARD, COMPLETE
58 A-1194-646-A DISPLAY BOARD, COMPLETE
59 3-655-653-11 BAND (TAITON), BINDING
60 3-087-053-11 +BVTP2.6 (3CR)
61 3-350-426-01 SPRING
62 1-469-241-11 CORE, FERRITE (RFC-8 BK)
(DA3200ES: US, CND/DG1000)
63 1-400-061-11 CORE, FERRITE (CLAMP FILTER)
(DA3200ES: AEP, UK, TW)
J702 1-815-313-11 JACK (PHONES)
S713 1-418-400-11 ENCODER, ROTARY (TONE)
S714 1-418-400-11 ENCODER, ROTARY (TUNING)
S715 1-418-400-11 ENCODER, ROTARY (INPUT SELECTOR)
S722 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
56
55
58
57
62
52
53
54
54
54
54
60
54
54
54
63
59
54
#1
#1
not supplied
(MIC board)
not supplied
not supplied
not supplied
not supplied
not supplied
(M-VOL board)
S715
(DA3200ES:
AEP, UK, TW)
S714
S713
S722
not supplied
not supplied
(KEY 1 board)
supplied
with S722
front panel block
supplied with S715
supplied with S714
supplied
with S713
not supplied
(KEY 2 board)
not supplied
supplied with
J702
not supplied
(POWER SW board)
51
61
not supplied
not
supplied
not supplied
not supplied
J702
