Sony STR-DA3200ES - S-VIDEO;CIS Board; Tuner

STR-DA3200ES/DG1000
20

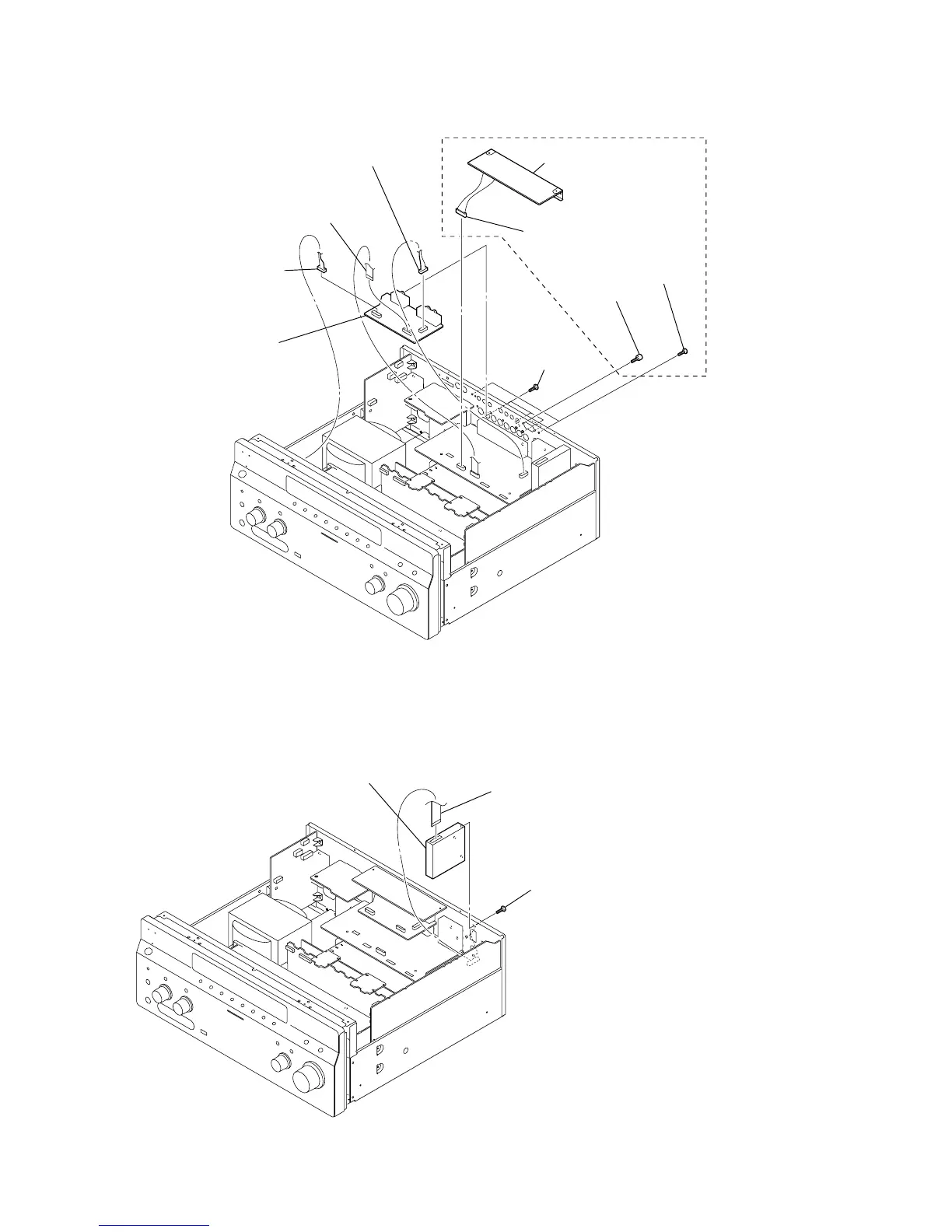

3-5. TUNER
3-4. S-VIDEO/CIS BOARD
6 connector
(CNP6901)
1 connector
(CN6801)
4 CIS board
(DA3200ES)
7 connector
(CNP6902)
9 S-VIDEO board
8 three screws
(BVTP3 × 8)
3 two screws
(BVTP3 × 8)
2 two screws
5 wire (flat type) (15 core)
(CNS6903)
2 three screws
(BVTP3
× 8)
3 tuner
1 wire (flat type) (11 core)
(DA3200ES: US, Canadian, Taiwan/DG1000)
wire (flat type) (15 core) (DA3200ES: AEP, UK)
