Sony STR-DA3200ES - Case; Front Panel Assy

STR-DA1200ES/DG1000
19

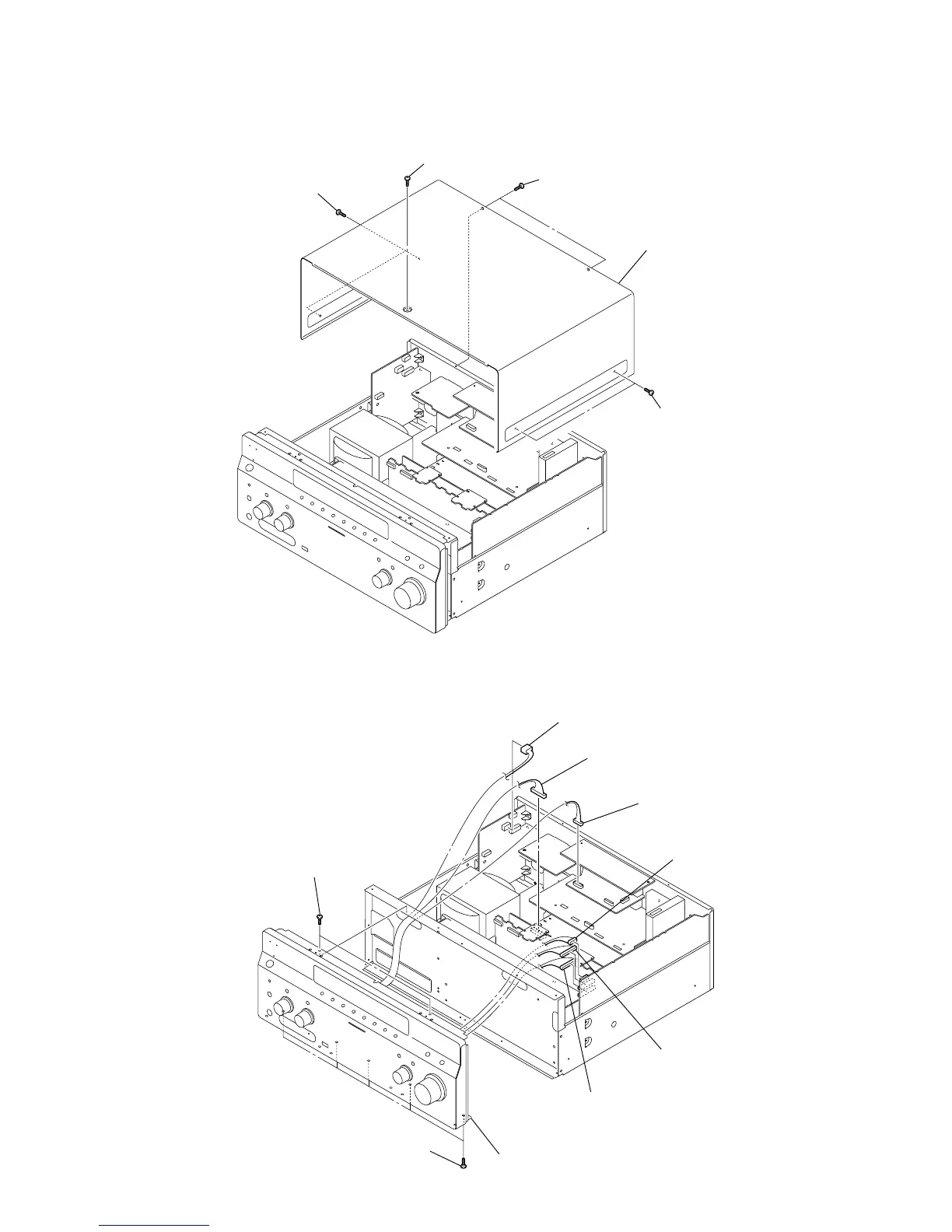

3-3. FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
3 flat head screw
4 case
1 two screws (4 × 8)
2 two flat head screws
1 two screws (4 × 8)
1 connector
(CNP53)
8 two screws
(BVTP3
× 8)
7 five screws
(BVTP3
× 8)
9 front panel assy
6 connector
(CN2014)
5 connector
(CN2016)
4 connector
(CN2015)
3 connector
(CNP6902)
2 connector
(CN606)
