Sony STR-DA3200ES - VIDEO Board Block

127
STR-DA3200ES/DG1000
151
152
153
155
154
156
157
#1
#1
#1
#1
#1
#1
#1
#1
not
supplied
not supplied
not supplied
(CONNECTOR L board)
not supplied
(CONNECTOR R board)
not supplied
not supplied
T01
F1405
ANALOG board block
#2
#2
#1
#1
#1
#1
not supplied
158
(DA3200ES)
(DA3200ES)
not supplied

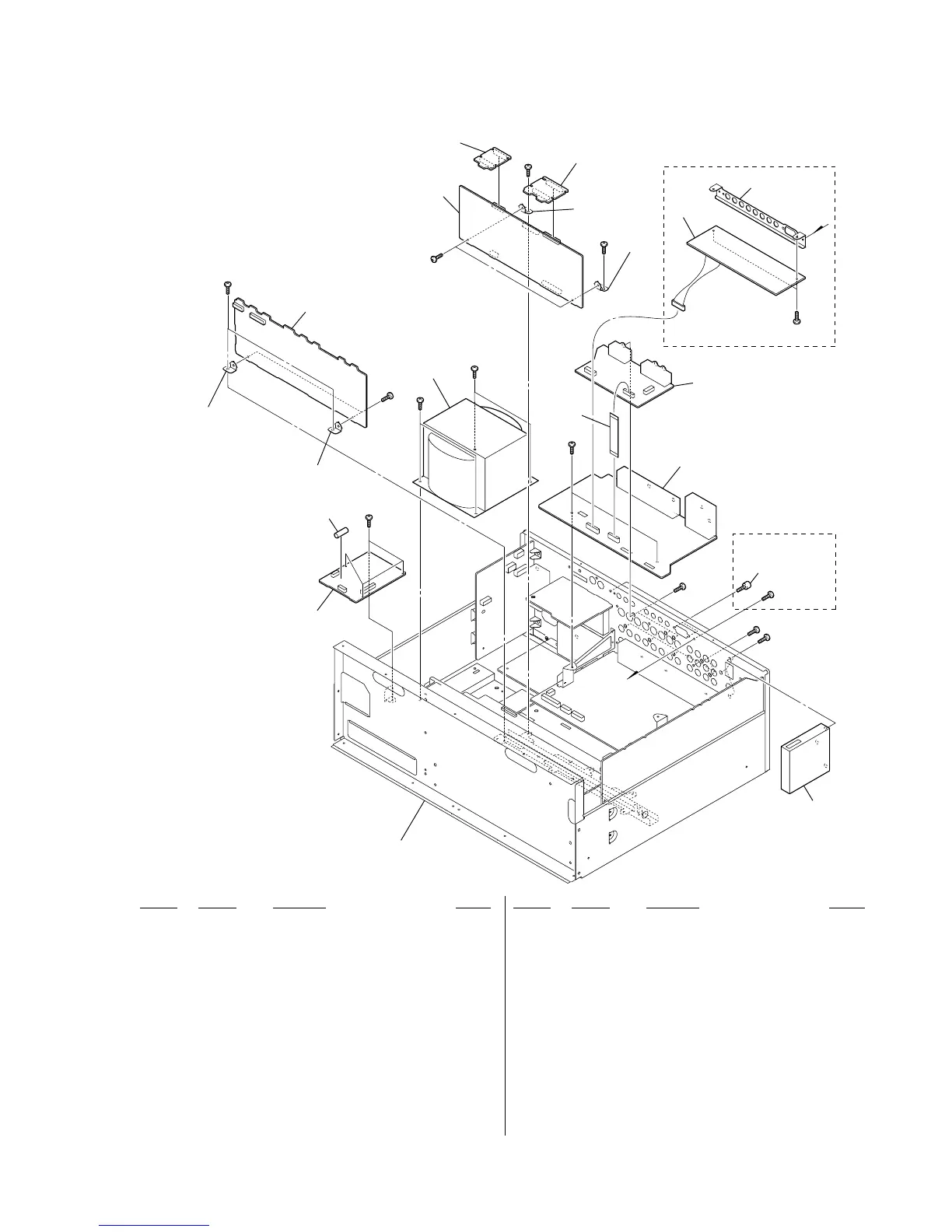

7-4. VIDEO BOARD BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 A-1221-148-A DCDC-1 BOARD, COMPLETE
152 A-1183-230-A A CLASS AMP BOARD, COMPLETE
(DA3200ES: AEP, UK)
152 A-1183-457-A A CLASS AMP BOARD, COMPLETE
(DA3200ES: US, CND/DG1000)
152 A-1217-507-A A CLASS AMP BOARD, COMPLETE
(DA3200ES: TW)
153 A-1182-340-A E-VOLUME BOARD, COMPLETE
154 1-828-337-51 WIRE (FLAT TYPE) (15 CORE)
155 A-1183-246-A S-VIDEO BOARD, COMPLETE
156 A-1183-238-A VIDEO BOARD, COMPLETE
(DA3200ES: AEP, UK)
156 A-1183-465-A VIDEO BOARD, COMPLETE
(DA3200ES: US, CND, TW)
156 A-1202-211-A VIDEO BOARD, COMPLETE (DG1000)
157 1-693-654-11 TUNER (FM/AM) (DA3200ES: TW)
157 1-693-675-11 TUNER (DA3200ES: US, CND/DG1000)
157 1-693-676-11 TUNER (DA3200ES: AEP, UK)
158 A-1183-234-A CIS BOARD, COMPLETE (DA3200ES)
0 F1405 1-532-506-33 FUSE (T6.3AL/250V)
0 T01 1-445-040-11 TRANSFORMER, POWER
(DA3200ES: US, CND/DG1000)
0 T01 1-445-041-11 TRANSFORMER, POWER (DA3200ES: AEP, UK)
0 T01 1-445-042-11 TRANSFORMER, POWER (DA3200ES: TW)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
