Sony STR-DA3200ES - Waveform Diagrams; Digital, HDMI, and Video Board Waveforms

6464
STR-DA3200ES/DG1000
STR-DA3200ES/DG1000

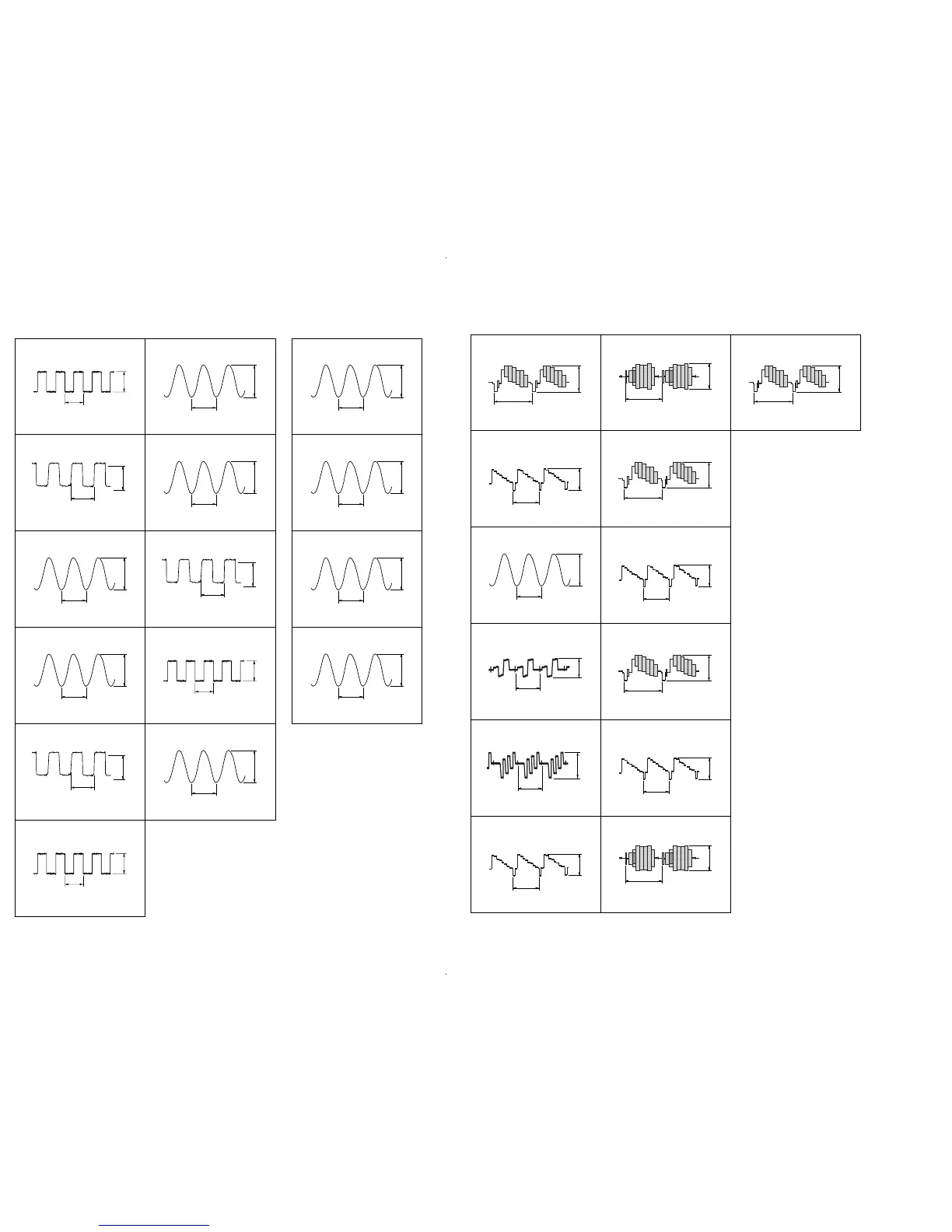

• Waveforms
– DIGITAL Board –
3
IC2024 qg (SCLKI)
1 V/DIV, 20 ns/DIV
40.8 ns
2.4 Vp-p
4
IC2006 qh (RMCK)
1 V/DIV, 20 ns/DIV
40.4 ns
3.3 Vp-p
7
IC2006 wk (XOUT)
1 V/DIV, 20 ns/DIV
40.4 ns
2.7 Vp-p
ra
IC3505 oh (XTALOUT)
500 mV/DIV, 20 ns/DIV
35.4 ns
1.1 Vp-p
rs
IC3509 qd (10M)
1 V/DIV, 50 ns/DIV
101 ns
3.1 Vp-p
rd
IC3526 eh (LLC1)
1 V/DIV, 20 ns/DIV
37.2 ns
2.4 Vp-p
rf
IC3526 ek (XTAL)
1 V/DIV, 20 ns/DIV
35.2 ns
2.5 Vp-p
8
IC2034 ek (SCKI)
1 V/DIV, 20 ns/DIV
40.4 ns
2.4 Vp-p
qa
IC2054 <zvc (X-OUT)
1 V/DIV, 50 ns/DIV
79.5 ns
3.1 Vp-p
21 µ s
3.2 Vp-p
1
IC2024 q; (LRCK)
1 V/DIV, 10 µ s/DIV
21 µ s
3.2 Vp-p
q;
IC2034 ra (LRCK)
1 V/DIV, 10 µ s/DIV
21 µ s
3.2 Vp-p
6
IC2006 w; (RLRCK)
1 V/DIV, 10 µ s/DIV
2
IC2024 qa (BCK)
1 V/DIV, 200 ns/DIV
324 ns
3.2 Vp-p
9
IC2034 r; (VLK)
1 V/DIV, 200 ns/DIV
324 ns
3.2 Vp-p
5
IC2006 qj (RBCK)
1 V/DIV, 200 ns/DIV
324 ns
3.2 Vp-p
– HDIM Board –
– VIDEO Board –
wd
IC6307 rs (X1)
(VIDEO 1 mode)
1 V/DIV, 20 ns/DIV
40.8 ns
2.6 Vp-p
wj
IC6703 1 (1Y)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.6 Vp-p
es
IC6702 qg (C OUT)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
1.3 Vp-p
wk
IC6703 3 (1Z)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
0.8 Vp-p
ed
IC6402 qd (V1.IN)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
0.9 Vp-p
e;
IC6702 qa (CV OUT)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
1.7 Vp-p
wa
IC6306 8 (CVOUT)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.7 Vp-p
wf
IC6701 1 (CR IN)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.5 Vp-p
wg
IC6701 4 (CB IN)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.5Vp-p
ws
IC6307 4 (VIDEOIN2),
5 (TVIDEOIN2)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.7 Vp-p
wl
IC6703 qd (1X)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.7 Vp-p
ea
IC6702 qd (Y OUT)
(VIDEO 1 mode)
500 mV/DIV, 20 µ s/DIV
H
1.4 Vp-p
wh
IC6701 7 (Y IN)
(VIDEO 1 mode)
200 mV/DIV, 20 µ s/DIV
H
0.7 Vp-p
