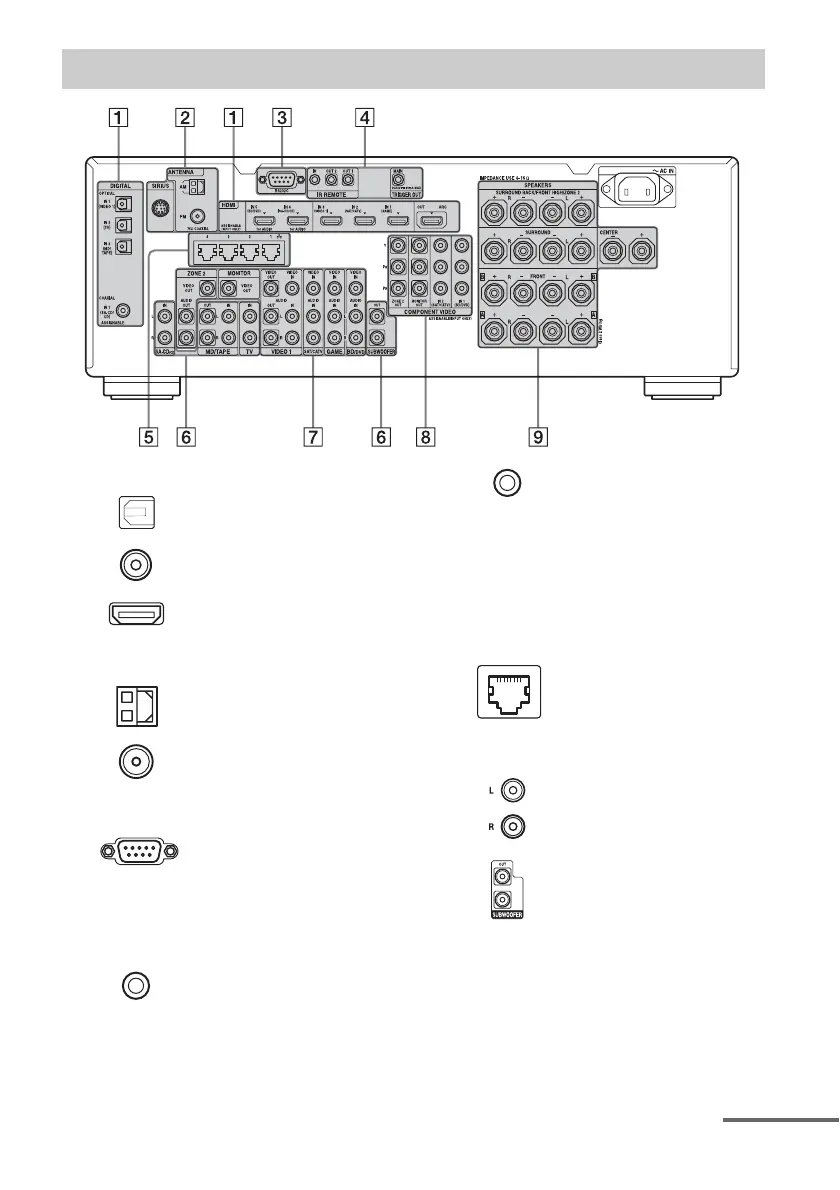

Rear panel
A DIGITAL INPUT/OUTPUT section
OPTICAL IN jacks
(page 26, 30, 32, 39)
COAXIAL IN jacks
(page 29, 37)
HDMI IN/OUT* jacks
(page 26, 28, 30, 32)
B ANTENNA section
AM ANTENNA jack
(page 40)
FM ANTENNA jack
(page 40)
C RS232C port
Used for maintenance and service.
D Control jacks for Sony equipment
and other external equipment
IR REMOTE IN/OUT
jacks (page 74)
Connect an IR repeater (not supplied) to
use the Multi-zone function.
TRIGGER OUT jacks
(page 106)
Connect to interlock on/off of the power
supply of other 12V TRIGGER compliant
equipment, or the amplifier/receiver of
zone 2.
E LAN ports (switching hubs)
(page 42)
F AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
(page 37, 39)
SUBWOOFER jacks
Connect to subwoofer(s).
