Connect your speakers to the receiver. This receiver allows you to use a 7.1 channel speaker system.
To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a
center speaker, and two surround speakers) and a sub woofer (5.1 channel).
You can enjoy high fidelity reproduction of DVD software recorded in the Surround EX format if you
connect one additional surround back speaker (6.1 channel) or two surround back speakers (7.1
channel) (see “Selecting the surround back decoding mode” on page 35).

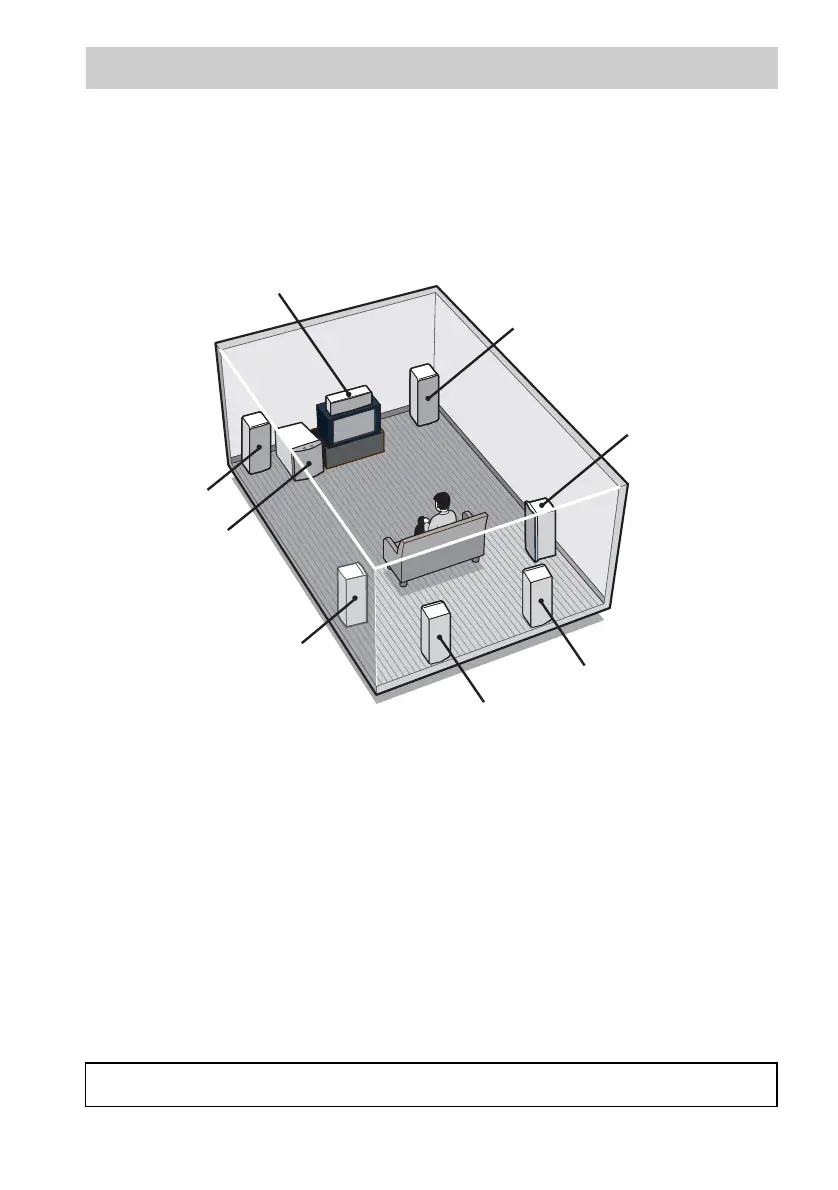

Example of 7.1 channel speaker system configuration
Tips
• When you connect 6.1 channel speaker system, place the surround back speaker behind the listening position (see
“When placing only one surround back speaker” illustration on page 19).
• Since the sub woofer does not emit highly directional signals, you can place it wherever you want.
Speaker impedance
(Except for models of area code CEK)
To enjoy the best possible multi channel surround, connect speakers with a nominal impedance of 8
ohms or higher to the FRONT A or FRONT B, CENTER, SURR and SURR BACK terminals, and set
the IMPEDANCE SELECTOR to “8Ω”. Use the screwdriver to set the impedance selector to the
correct position. Refer to the operating instructions supplied with your speakers if you are not sure of
their impedance. (This information is often on the back of the speaker.)
Alternatively, you may connect speakers with nominal impedances between 4 and 8 ohms to any or all
of the speaker terminals. However, be sure to set the IMPEDANCE SELECTOR to “4Ω” if you
connect even one speaker with a nominal impedance between 4 and 8 ohms.
3: Connecting speakers
Front speaker (Right)
Surround speaker
(Right)
Center speaker
Front speaker (Left)
Sub woofer
Surround speaker (Left)
Surround back speaker (Left)
Surround back speaker (Right)
Note
Be sure to turn the power off before adjusting the IMPEDANCE SELECTOR.
GB01COV_STR-DB798-CEL.book Page 14 Thursday, August 18, 2005 8:59 AM

Sony STR-DB798 Specifications

General

Impedance	8 Ω
Supported radio bands	FM
Radio Data System (RDS)	Yes
Channels quantity	7 channels
I/O ports	Output(Component x 1, Optical Digital x 1, Composite x 1, S-Video x 1), Input(Component x 2, Optical Digital x 4, S-Video x 4, Coaxial Digital x 2, Composite x 4)
