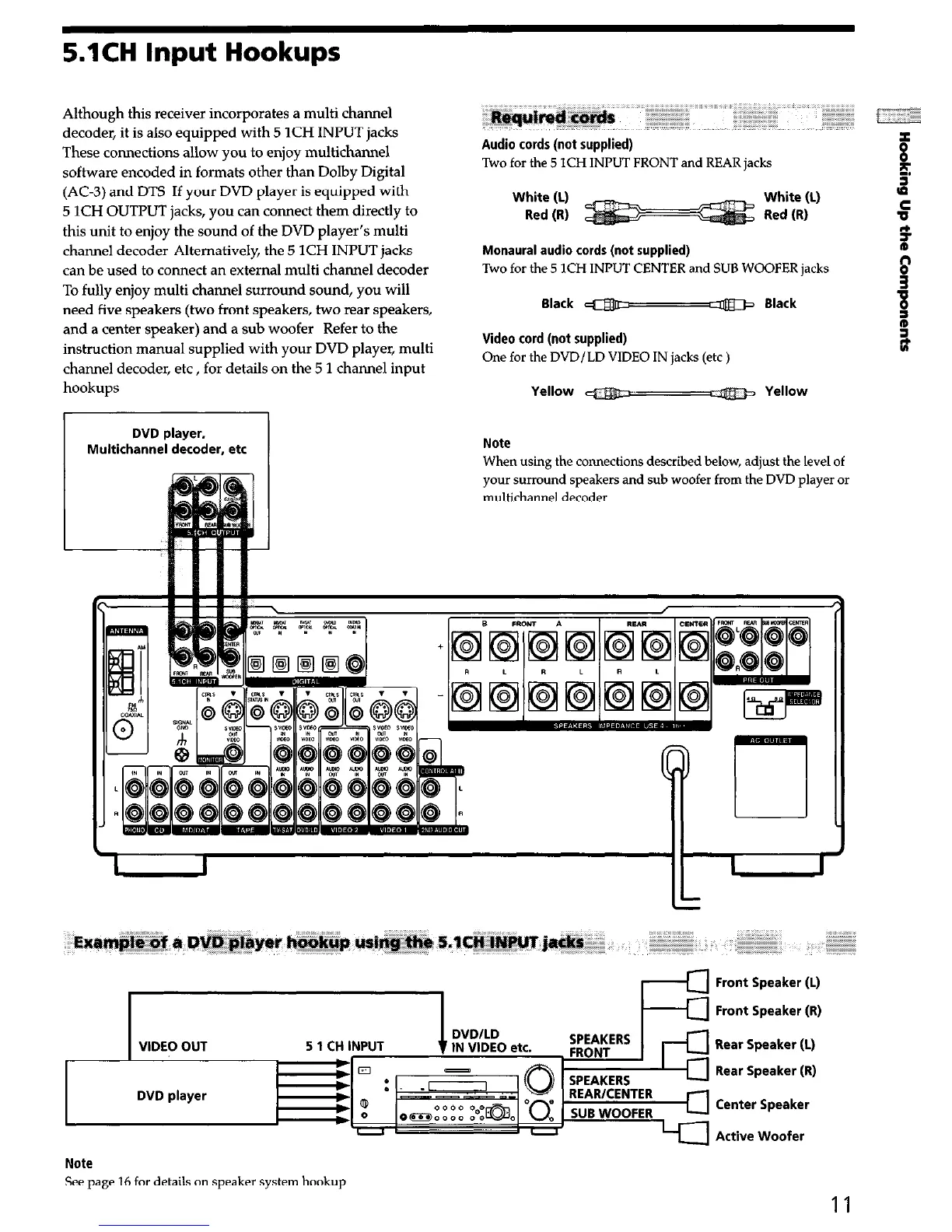

5.1CH Input Hookups
Although this receiver incorporates a multi channel
decoder, it is also equipped with 5 1CH INPUT jacks
These connections allow you to enjoy multichannel
software encoded in formats other than Dolby Digital
(AC-3) and DTS If your DVD player is equipped with
5 1CH OUTPUT jacks, you can connect them directly to
this unit to enjoy the sound of the DVD player’s multi
channel decoder Alternatively, the 5 1CH INPUT jacks
can be used to connect an external multi channel decoder
To fully enjoy multi channel surround sound, you will
need five speakers (two front speakers, two rear speakers,
and a center speaker) and a sub woofer
Refer to the
instruction manual supplied with your DVD player, multi
channel decoder, etc , for details on the 5 1 channel input
hookups
Audio cords (not supplied)
Two for the 5 ICH INPUT FRONT and REAR jacks
White (L)
Red (R)
White (L)
Red (R)
Monaural audio cords (not supplied)
Two for the 5 1CH INPUT CENTER and SUB WOOFER jacks
Black ~EU Black
Video cord (not supplied)
One for the DVD/LD VIDEO IN jacks (etc )
Yellow Yellow
Note
When using the connections described below, adjust the level of
your surround speakers and sub woofer from the DVD player or
multichannel decoder
Note
See page 16 for details on speaker system hookup
Front Speaker(L)
Front Speaker(R)
Rear Speaker (L)
Rear Speaker (R)
Center Speaker
Active Woofer
11
To Next Page
