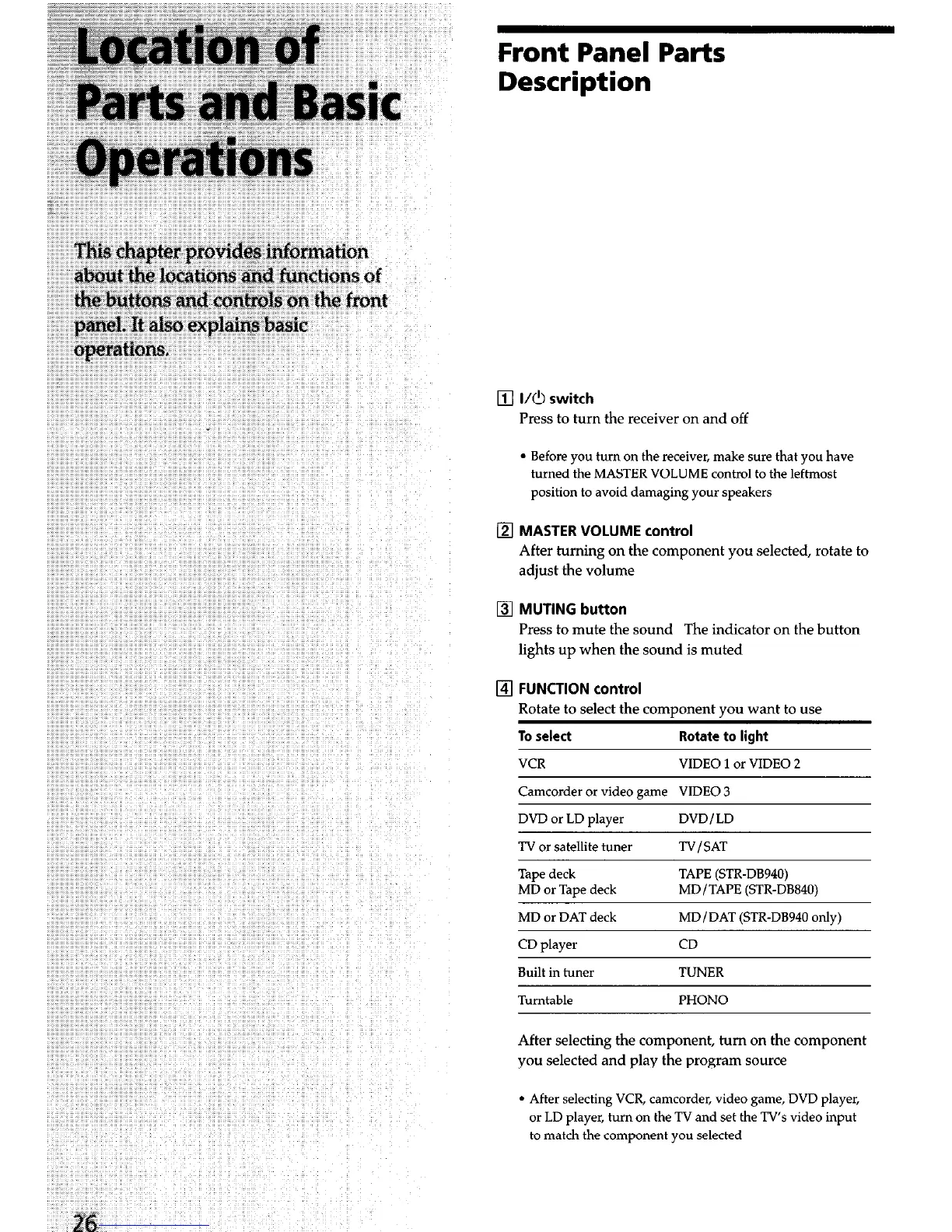

Front Panel Parts
Description
q
I/& switch
Press to turn the receiver on and off
l
Before you turn on the receiver, make sure that you have
turned the MASTER VOLUME control to the leftmost
position to avoid damaging your speakers
q
MASTER VOLUME control
After turning on the component you selected, rotate to
adjust the volume
q
MUTING button
Press to mute the sound
The indicator on the button
lights up when the sound is muted
q
FUNCTION control
Rotate to select the comoonent vou want to use
To select Rotate to light
VCR
VIDEO 1 or VIDEO 2
Camcorder or video game VIDEO 3
DVD or LD player
DVDILD
TV or satellite toner
TV/SAT
Tape deck
MD or Tape deck
MD or DAT deck
TAPE (STR-DB940)
MD/TAPE (STR-DB840)
MD /DAT (STR-DB940 only)
CD player CD
Built in tuner
TUNER
Turntable
PHONO
After selecting the component, turn on the component
you selected and play the program source
l
After selecting VCR, camcorder, video game, DVD player,
or LD player, turn on the TV and set the TV’s video input
to match the component you selected
