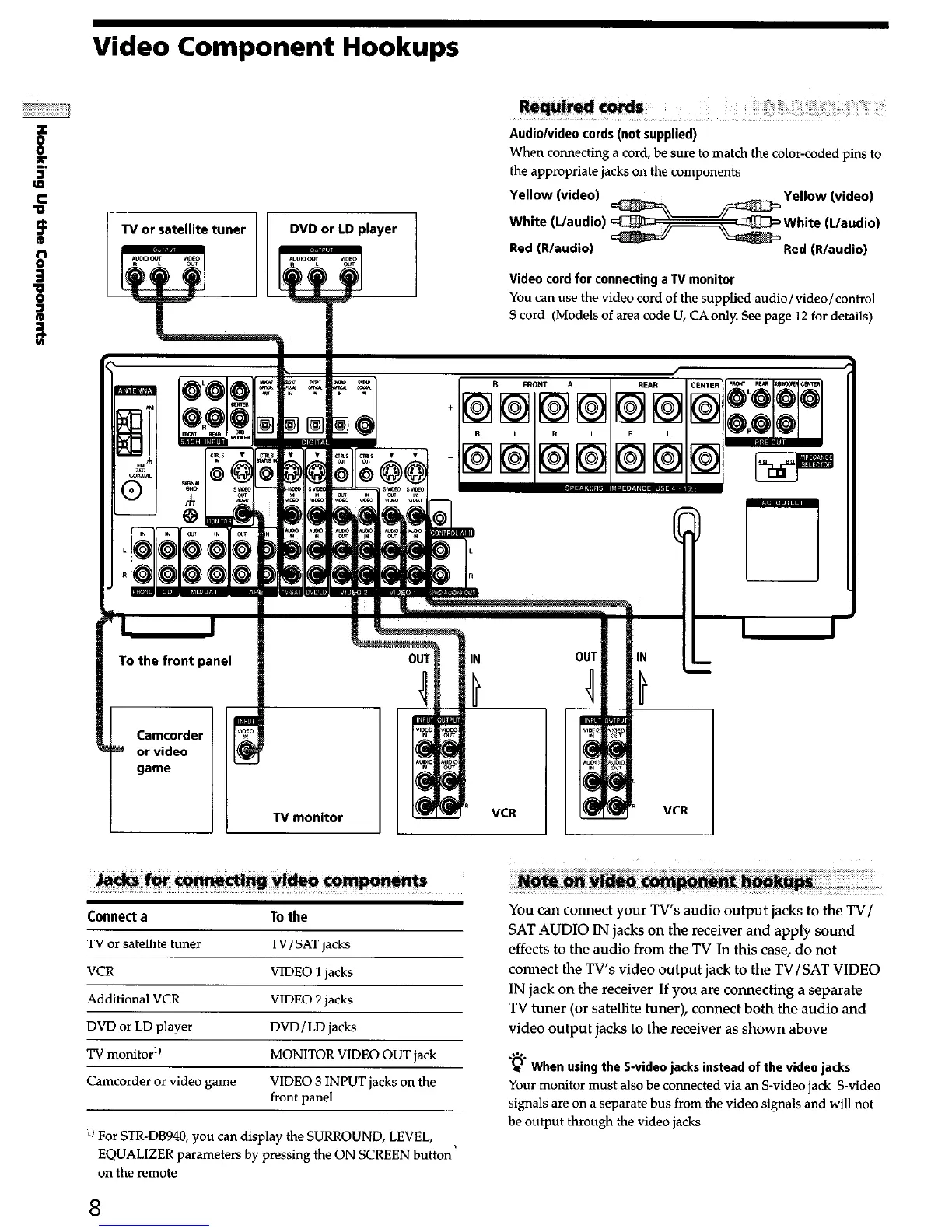

Video Component Hookups
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components
II
DVD or LD player
Yellow (video)
White (L/audio)
Red (R/audio)
Yellow (video)
White (L/audio)
Red (R/audio)
Video cord for connecting a TV monitor
You can use the video cord of the supplied audio/video/control
S cord (Models of area code U, CA only. See page 12 for details)
To the front panel
TV monitor
Connect a To the
TV or satellite tuner TV/SAT jacks
VCR VIDEO 1 iacks
Additional VCR VIDEO 2 jacks
DVD or LD player DVDILD iacks
TV monitor”
Camcorder or video game
MONITOR VIDEO OUT jack
VIDEO 3 INPUT jacks on the
front panel
I) For STR-DB940, you can display the SURROUND, LEVEL,
EQUALIZER parameters by pressing the ON SCREEN button ’
on the remote
You can connect your TV’s audio output jacks to the TV/
SAT AUDIO IN jacks on the receiver and apply sound
effects to the audio from the TV In this case, do not
connect the TV’s video output jack to the TV/SAT VIDEO
IN jack on the receiver If you are connecting a separate
TV tuner (or satellite tuner), connect both the audio and
video output jacks to the receiver as shown above
-p h W en using the S-video jacks instead of the video jacks
Your monitor must also be connected via an S-video jack S-video
signals are on a separate bus from the video signals and will not
be output through the video jacks
8
