Sony STR-DB840 User Manual

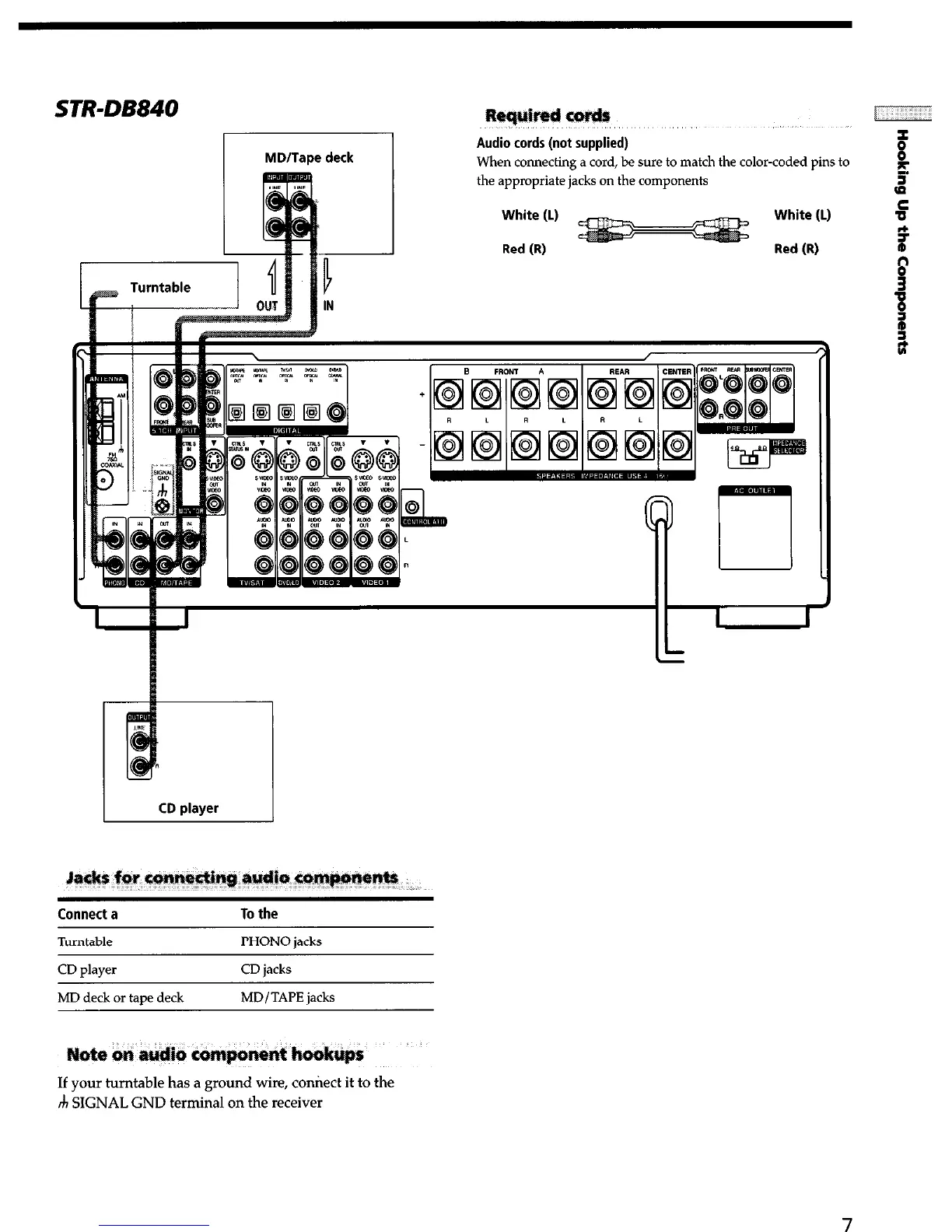

STR-DB840
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components
White (1)
Red (R)
White (L)
Red (R)
I
CD player
Connect a To the
Turntable
CD player
PHONO jacks
CD jacks
MD deck or tape deck
MD/TAPE jacks
If your turntable has a ground wire, comiect it to the
Ih SIGNAL GND terminal on the receiver
7

Sony STR-DB840 Specifications

General

Digital inputs	2 Optical, 1 Coaxial
Power output	100 watts per channel into 8Ω (stereo)
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	2.5mV (MM), 200mV (line)
Speaker load impedance	8 ohms
Dimensions	430 x 157mm
Tuning range	FM, MW
Video Connections	composite
