Sony STR-DB840 User Manual

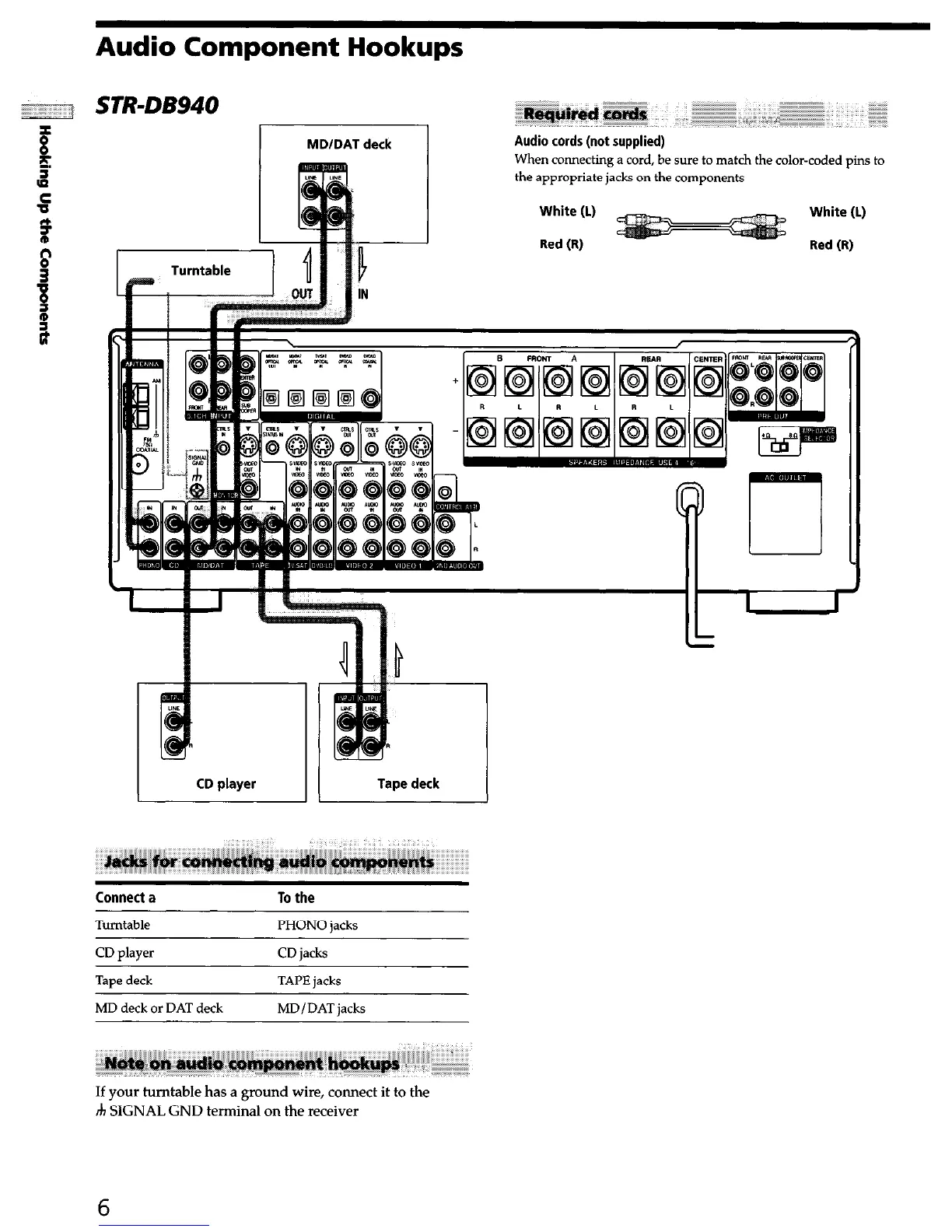

Audio Component Hookups
STR-DB940
MDlDAT deck
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components
( CD player 1 ( Tapedeck
Connect a To the
Turntable
CD player
PHONO jacks
CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
White (1)
Red (R)
White (1)
Red (R)
If your turntable has a ground wire, connect it to the
rh SIGNAL GND terminal on the receiver
6

Sony STR-DB840 Specifications

General

Digital inputs	2 Optical, 1 Coaxial
Power output	100 watts per channel into 8Ω (stereo)
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	2.5mV (MM), 200mV (line)
Speaker load impedance	8 ohms
Dimensions	430 x 157mm
Tuning range	FM, MW
Video Connections	composite
