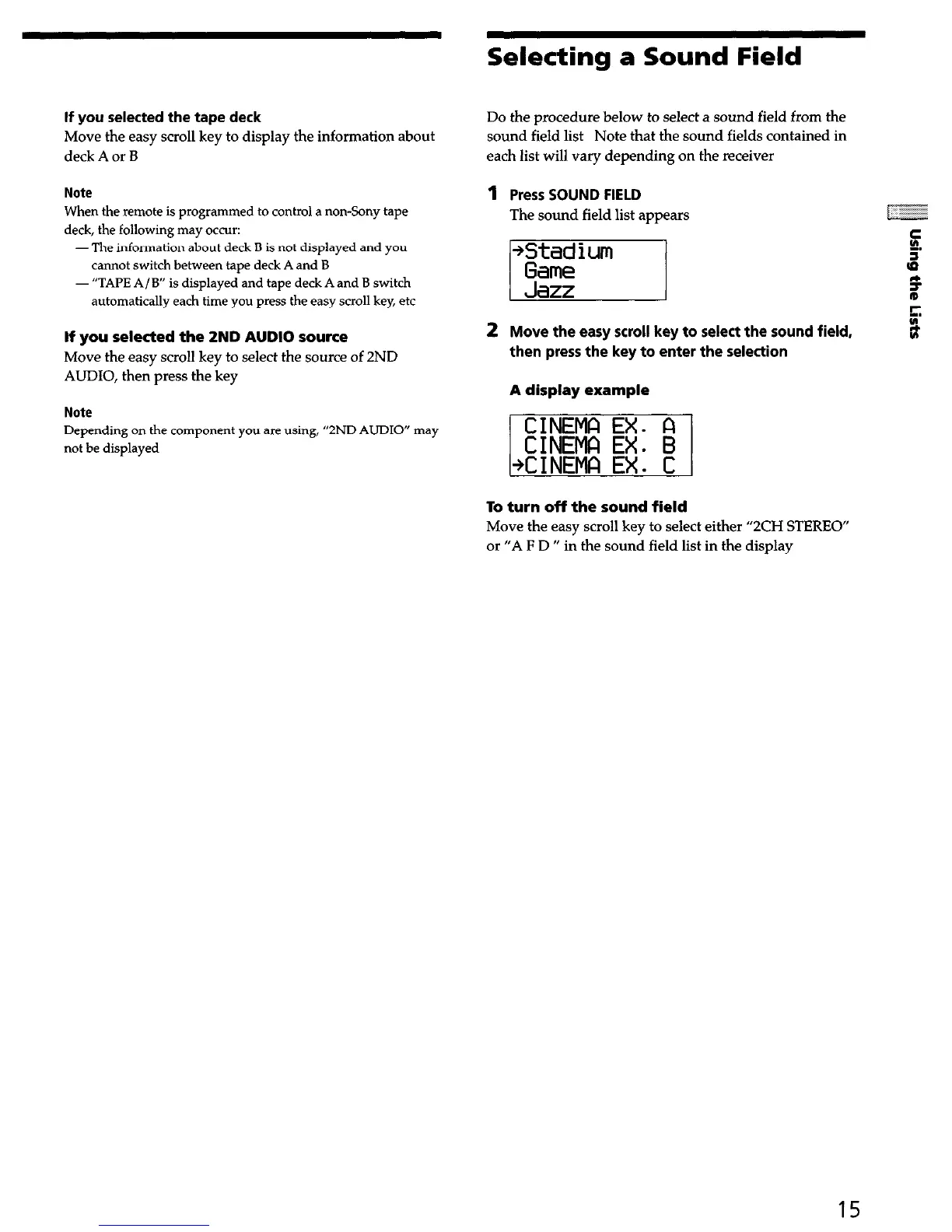

Sony STR-DB840 User Manual

If you selected the tape deck
Do the procedure below to select a sound field from the
Move the easy scroll key to display the information about
sound field list Note that the sound fields contained in
deck A or B each list will vary depending on the receiver
Note
Press SOUND FIELD
When the remote is programmed to control a non-Sony tape
deck, the following may occur:
-The information about deck B is not displayed and you
cannot switch between tape deck A and B
- “TAPE A/B” is displayed and tape deck A and B switch
automatically each time you press the easy scroll key, etc
The sound field list appears
If you selected the 2ND AUDIO source
Move the easy scroll key to select the source of 2ND
AUDIO, then press the key
Move the easy scroll key to select the sound field,
E
then press the key to enter the selection
A display example
Note
Depending on the component you are using, “2ND AUDIO” may
not be displayed
Selecting a Sound Field
To turn off the sound field
Move the easy scroll key to select either “2CH STEREO”
or “A F D “ in the sound field list in the display
15

Sony STR-DB840 Specifications

General

Digital inputs	2 Optical, 1 Coaxial
Power output	100 watts per channel into 8Ω (stereo)
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	2.5mV (MM), 200mV (line)
Speaker load impedance	8 ohms
Dimensions	430 x 157mm
Tuning range	FM, MW
Video Connections	composite
