Sony STR-DB840 User Manual

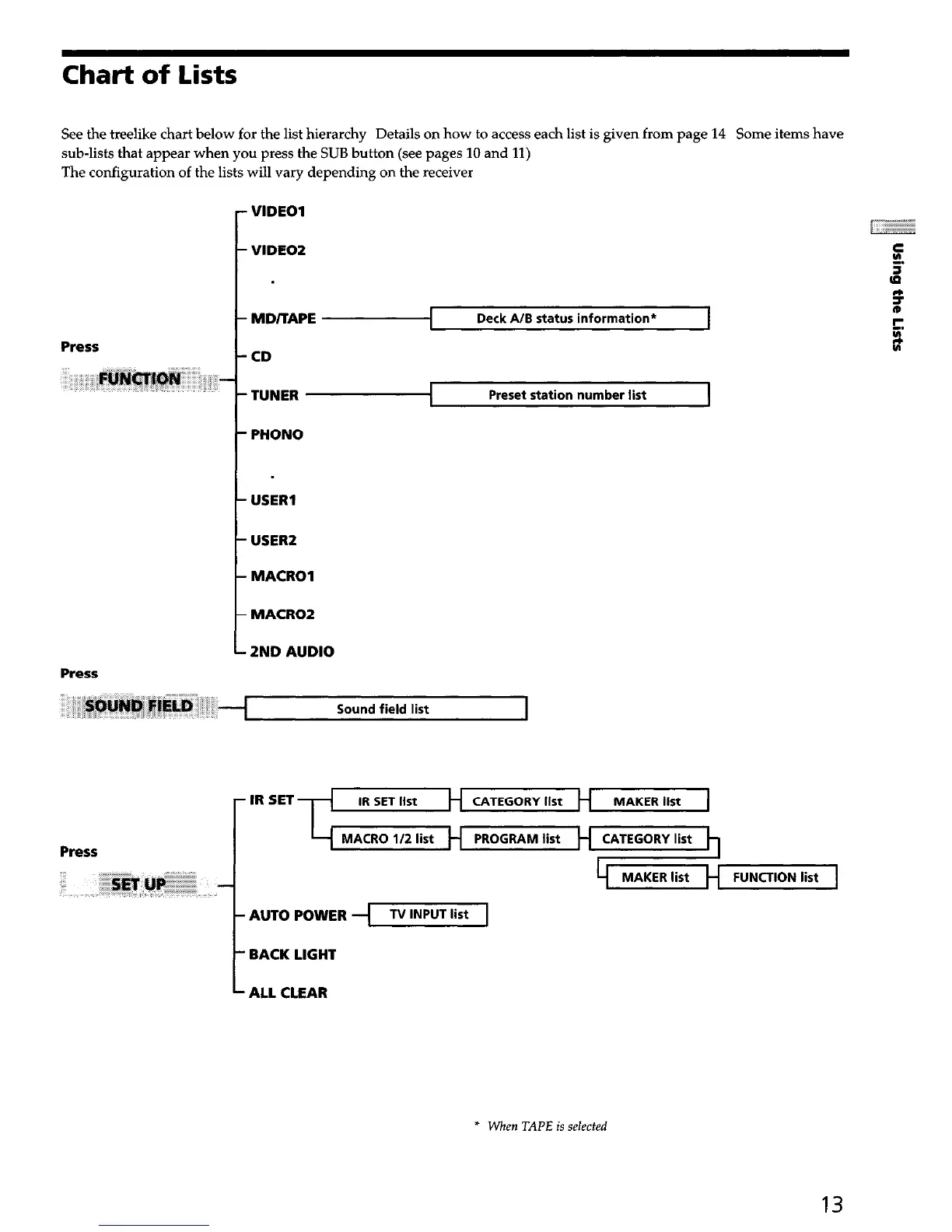

Chart of Lists
See the treelike chart below for the list hierarchy Details on how to access each list is given from page 14
Some items have
sub-lists that appear when you press the SUB button (see pages 10 and 11)
The configuration of the lists will vary depending on the receiver
r
VIDEO1
VIDEO2
MD/TAPE Deck A/B status information*
Press
CD
TUNER
PHONO
1
Preset station number list
I
t -
USER1
USER2
MACRO1
MACRO2
2ND AUDIO
Press
IR SET
CATEGORY list
MACRO 112 list PROGRAM list CATEGORY list
FUNCTION list
AUTO POWER -I
TV INPUT list
Press
SET
t
BACK LIGHT
ALL CLEAR
* When TAPE is selected
13

Sony STR-DB840 Specifications

General

Digital inputs	2 Optical, 1 Coaxial
Power output	100 watts per channel into 8Ω (stereo)
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	2.5mV (MM), 200mV (line)
Speaker load impedance	8 ohms
Dimensions	430 x 157mm
Tuning range	FM, MW
Video Connections	composite
