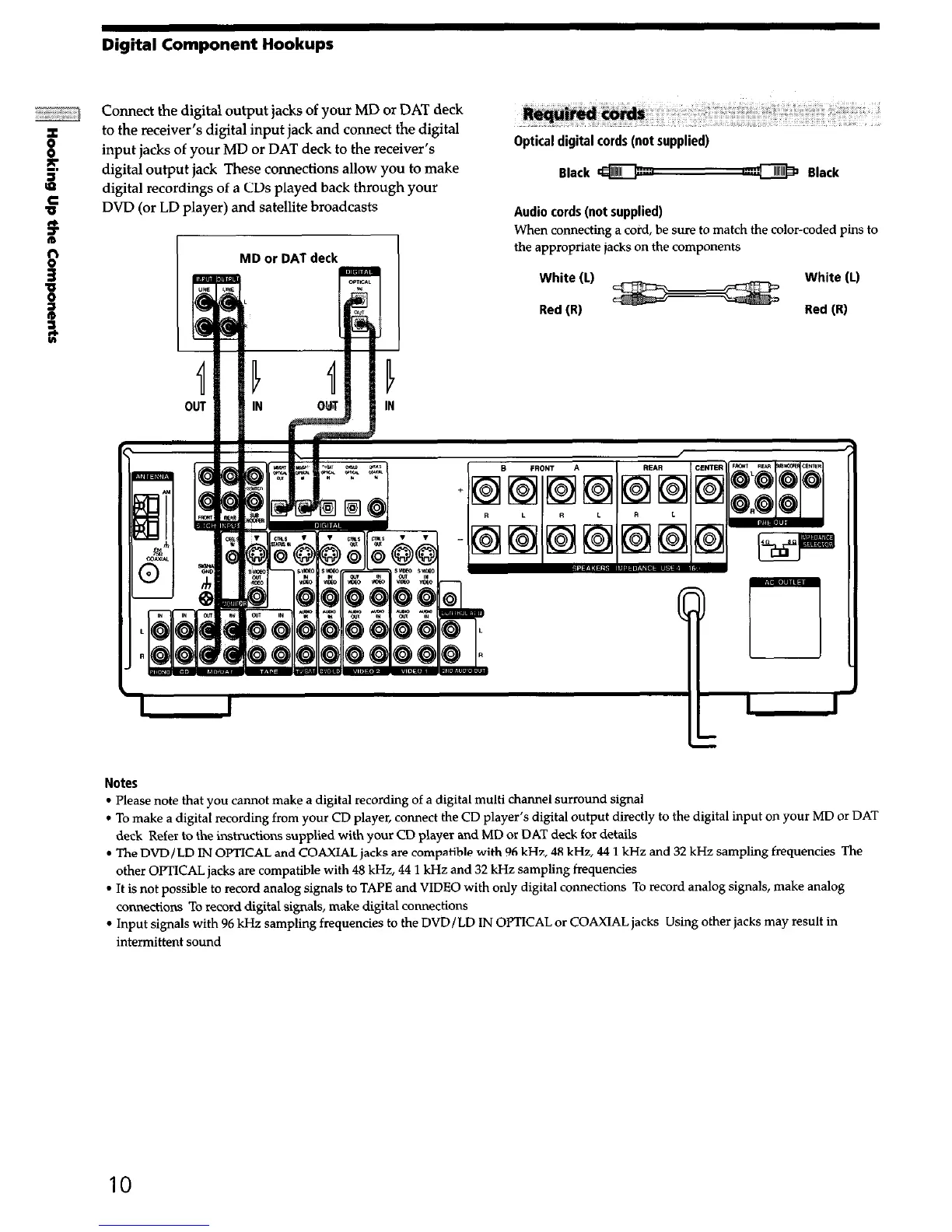

Digital Component Hookups
Connect the digital output jacks of your MD or DAT deck
to the receiver’s digital input jack and connect
the
digital
input jacks of your MD or DAT deck to the receiver’s
digital output jack These connections allow you to make
digital recordings of a CDs played back through your
DVD (or LD player) and satellite broadcasts
,:‘,; ;.,. .:j,, :_ , *;
. I. ,
Optical digital cords (not supplied)
Black
y
Black
Audio cords (not supplied)
MD or DAT deck
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components
White (1) White (L)
Red (R)
Red (R)
Notes
l
Please note that you cannot make a digital recording of a digital multi channel surround signal
l
To make a digital recording from your CD player, connect the CD player’s digital output directly to the digital input on your MD or DAT
deck Refer to the instructions supplied with your CD player and MD or DAT deck for details
l
The DVD/LD IN OPTICAL and COAXIAL jacks are compatible with 96 kHz, 48 kHz, 44 1 kHz and 32 kHz sampling frequencies The
other OPTICAL jacks are compatible with 48 kHz, 44 1 kHz and 32 kHz sampling frequencies
l
It is not possible to record analog signals to TAPE and VIDEO with only digital connections To record analog signals, make analog
connections To record digital signals, make digital connections
l
Input signals with 96 kHz sampling frequencies to the DVD/LD IN OPTICAL or COAXIAL jacks Using other jacks may result in
intermittent sound
10
