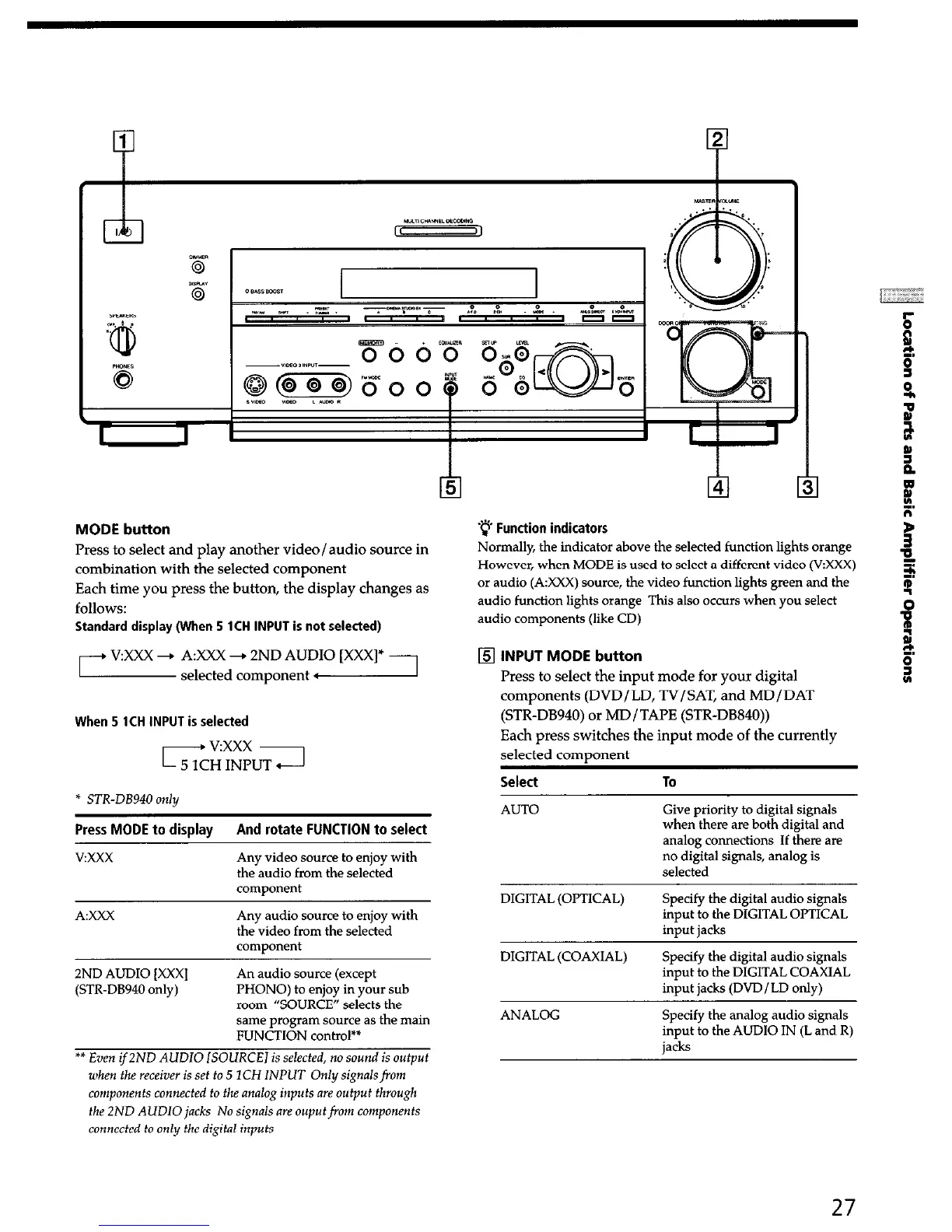

MODE button
be Function indicators
Press to select and play another video/audio source in
combination with the selected component
Each time you press the button, the display changes as
follows:
Standard display (When 5 1CH INPUT is not selected)
Normally, the indicator above the selected function lights orange
However, when MODE is used to select a different video (VKXX)
or audio @XXX) source, the video function lights green and the
audio function lights orange This also occurs when you select
audio components (like CD)
When 5 1CH INPUT is selected
q
INPUT MODE button
Press to select the input mode for your digital
components (DVD/LD, TV/SAT, and MD/DAT
(STR-DB940) or MD/TAPE (STR-DB840))
Each press switches the input mode of the currently
selected component
* STR-DB940 only
Press MODE to display And rotate FUNCTION to select
vxxx Any video
source to enjoy with
the
audio from
the selected
component
Select
AUTO
AXXX Any audio source to enjoy with
the video from the selected
component
DIGITAL (OPTICAL)
2ND AUDIO [XXX]
(STR-DB940 only)
An audio source (except
PHONO) to enjoy in your sub
room “SOURCE” selects the
same program source as the main
FUNCTION control**
DIGITAL (COAXIAL)
** Even if2ND AUDIO lSOURCE1 is selected, no sound is output
when the receiver is set to 5 ICH INPUT Only sign&from
components connected to the analog inputs are output through
the 2ND AUDIO jacks No signals me ouputfrom components
connected to only the digital inputs
ANALOG
To
Give priority to digital signals
when there are both digital and
analog connections If there are
no digital signals, analog is
selected
Specify the digital audio signals
input to the DIGITAL OPTICAL
input jacks
Specify the digital audio signals
input to the DIGITAL COAXIAL
input jacks (DVD / LD only)
Specify the analog audio signals
input to the AUDIO IN (Land R)
jacks
27
