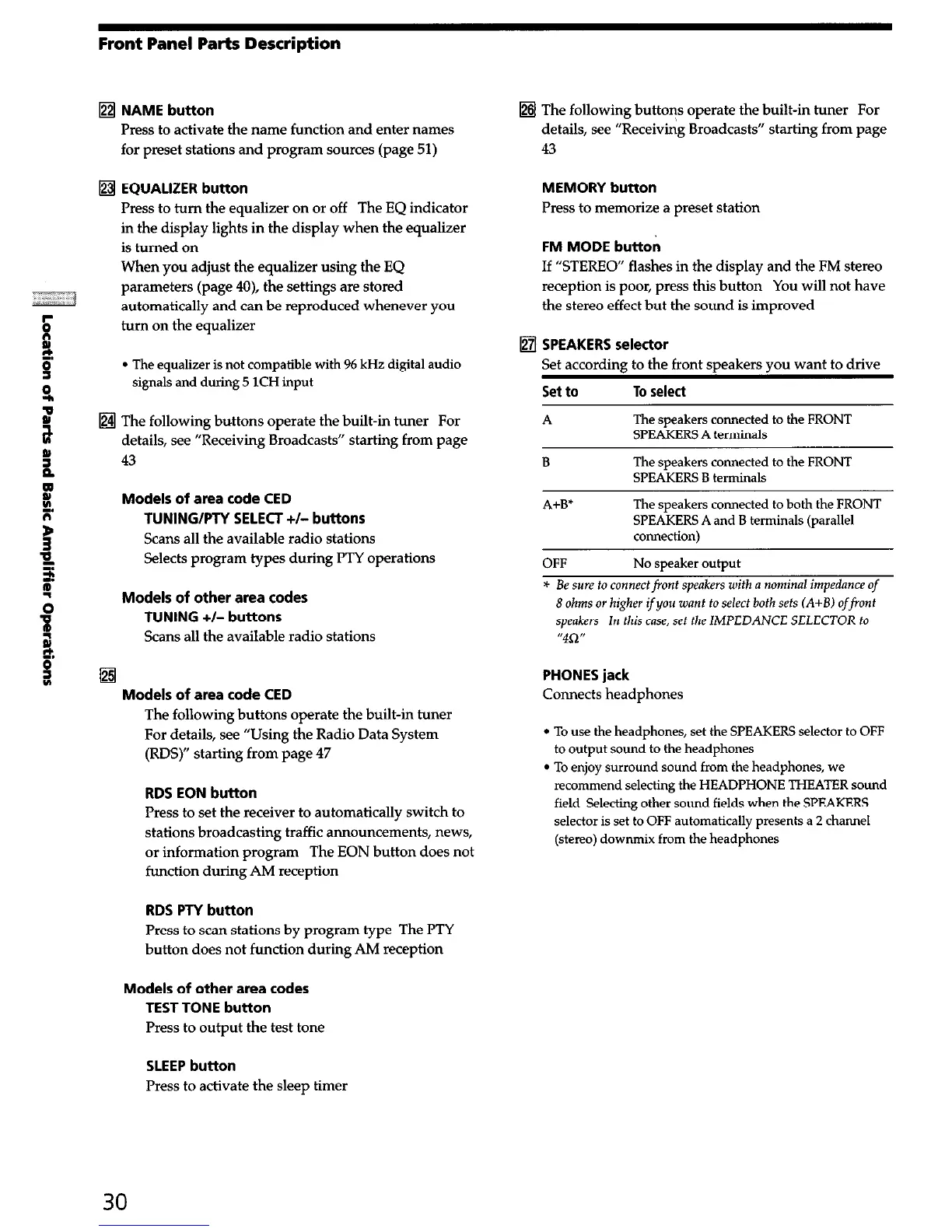

Front Panel Parts Description
q
NAME button
Press to activate the name function and enter names
for preset stations and program sources (page 51)
q
EQUALIZER button
Press to turn the equalizer on or off The EQ indicator
in the display lights in the display when the equalizer
is turned on
When you adjust the equalizer using the EQ
parameters (page 40), the settings are stored
automatically and can be reproduced whenever you
turn on the equalizer
l
The equalizer is not compatible with 96 kHz digital audio
signals and during 5 1CH input
q
The following butttons operate the built-in tuner For
details, see “Receiving Broadcasts” starting from page
43
Models of area code CED
TUNlNGlPTY SELECT +/- buttons
Scans all the available radio stations
Selects program types during PTY operations
Models of other area codes
TUNING +I- buttons
Scans all the available radio stations
q
Models of area code CED
The following buttons operate the built-in tuner
For details, see “Using the Radio Data System
(RDS)” starting from page 47
RDS EON button
Press to set the receiver to automatically switch to
stations broadcasting traffic announcements, news,
or information program The EON button does not
function during AM reception
RDS PTY button
Press to scan stations by program type The PTY
button does not function during AM reception
Models of other area codes
TEST TONE button
Press to output the test tone
SLEEP button
Press to activate the sleep timer
q
The following buttoqs operate the built-in tuner For
details, see “Receiving Broadcasts” starting from page
43
MEMORY button
Press to memorize a preset station
FM MODE button
If “STEREO” flashes in the display and the FM stereo
reception is poor, press this button You will not have
the stereo effect but the sound is improved
q
SPEAKERS selector
Set according to the front speakers you want to drive
Set to To select
A The speakers connected to the FRONT
SPEAKERS A terminals
B The speakers connected to the FRONT
SPEAKERS B terminals
A+B*
The speakers connected to both
the FRONT
SPEAKERS A and B terminals (parallel
connection)
OFF No speaker output
* Be sure to connectfront speakers with n nominal impedance of
8 ohms or higher ifyou want to select both sets (A+B) offront
speakers In this case, set the IMPEDANCE SELECTOR to
“4Q”
PHONES jack
Connects headphones
l
To use the headphones, set the SPEAKERS selector to OFF
to output sound to the headphones
l
To enjoy surround sound from the headphones, we
recommend selecting the HEADPHONE THEATER sound
field Selecting other sound fields when the SPEAKERS
selector is set to OFF automatically presents a 2 channel
(stereo) downmix from the headphones
30
