Sony STR-DB840 User Manual

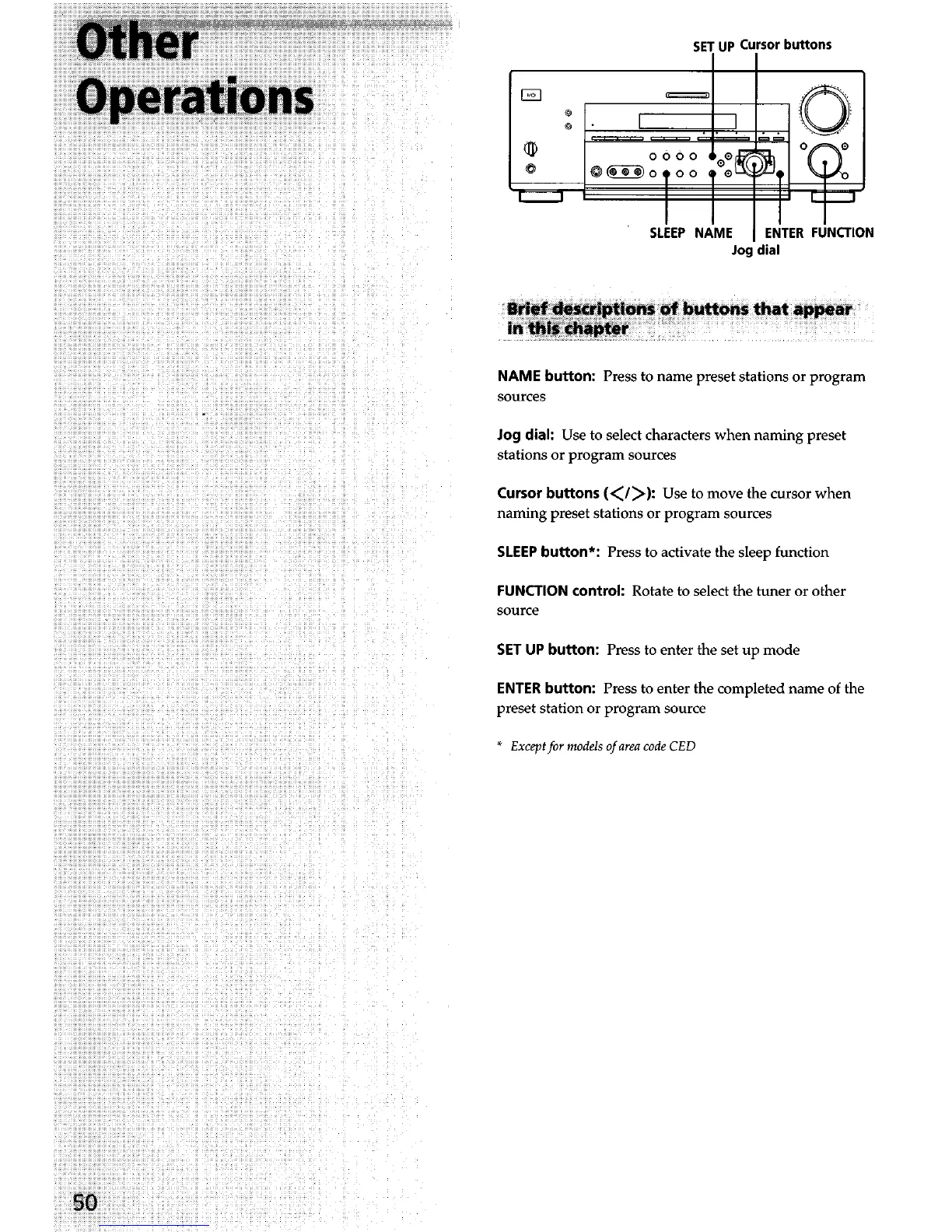

SET Up Cursor buttons
I I
Jog dial
NAME button: Press to name preset stations or program
sources
Jog dial: Use to select characters when naming preset
stations or program sources
Cursor buttons (</>): Use to move the cursor when
naming preset stations or program sources
SLEEP button*: Press to activate the sleep function
FUNCTION control: Rotate to select the tuner or other
source
SET UP button: Press to enter the set up mode
ENTER button: Press to enter the completed name of the
preset station or program source
Exceptfor models of area code CED

Sony STR-DB840 Specifications

General

Digital inputs	2 Optical, 1 Coaxial
Power output	100 watts per channel into 8Ω (stereo)
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	2.5mV (MM), 200mV (line)
Speaker load impedance	8 ohms
Dimensions	430 x 157mm
Tuning range	FM, MW
Video Connections	composite
