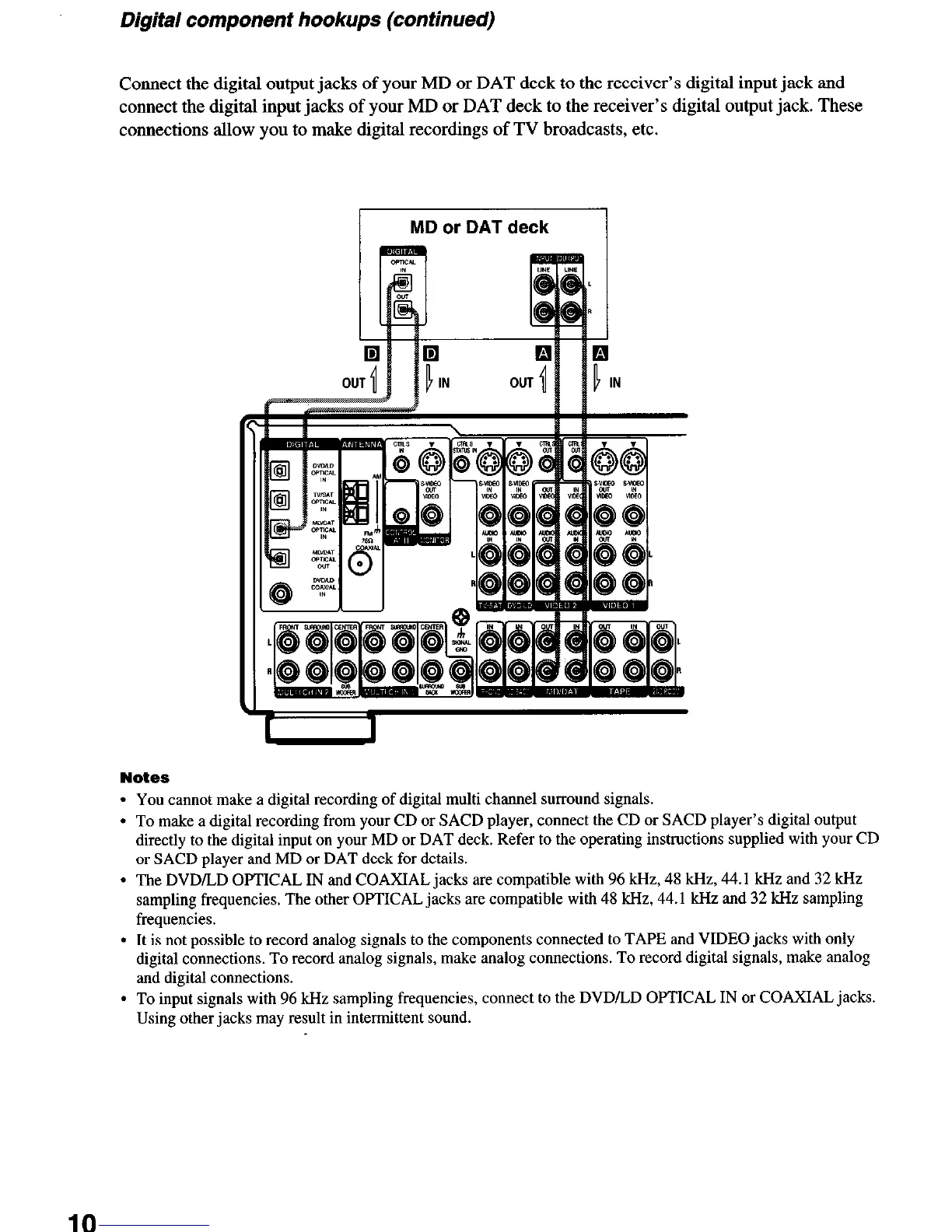

Digital component hookups (continued)
Connect the digital output jacks of your MD or DAT deck to the receiver’s digital input jack and
connect the digital input jacks of your MD or DAT deck to the receiver’s digital output jack. These
comections allow you to make digital recordings of TV broadcasts, etc.
MD or DAT deck
Notes
l
You cannot make a digital recording of digital multi channel surround signals.
l
To make a digital recording from your CD or SACD player, connect the CD or SACD player’s digital output
directly to the digital input on your MD or DAT deck. Refer to the operating instructions supplied with your CD
or SACD player and MD or DAT deck for details.
l
The DVD/LD OPTICAL IN and COAXIAL jacks are compatible with 96 kHz, 48 kHz, 44.1 kHz and 32 Wz
sampling frequencies. The other OPTICAL jacks are compatible with 48 kHz, 44.1 kHz and 32 kHz sampling
frequencies.
l
It is not possible to record analog signals to the components connected to TAPE and VIDEO jacks with only
digital connections. To record analog signals, make analog connections. To record digital signals, make analog
and digital connections.
l
To input signals with 96 kHz sampling frequencies, connect to the DVDiLD OPTICAL IN or COAXIAL jacks.
Using other jacks may result in intermittent sound.
10
