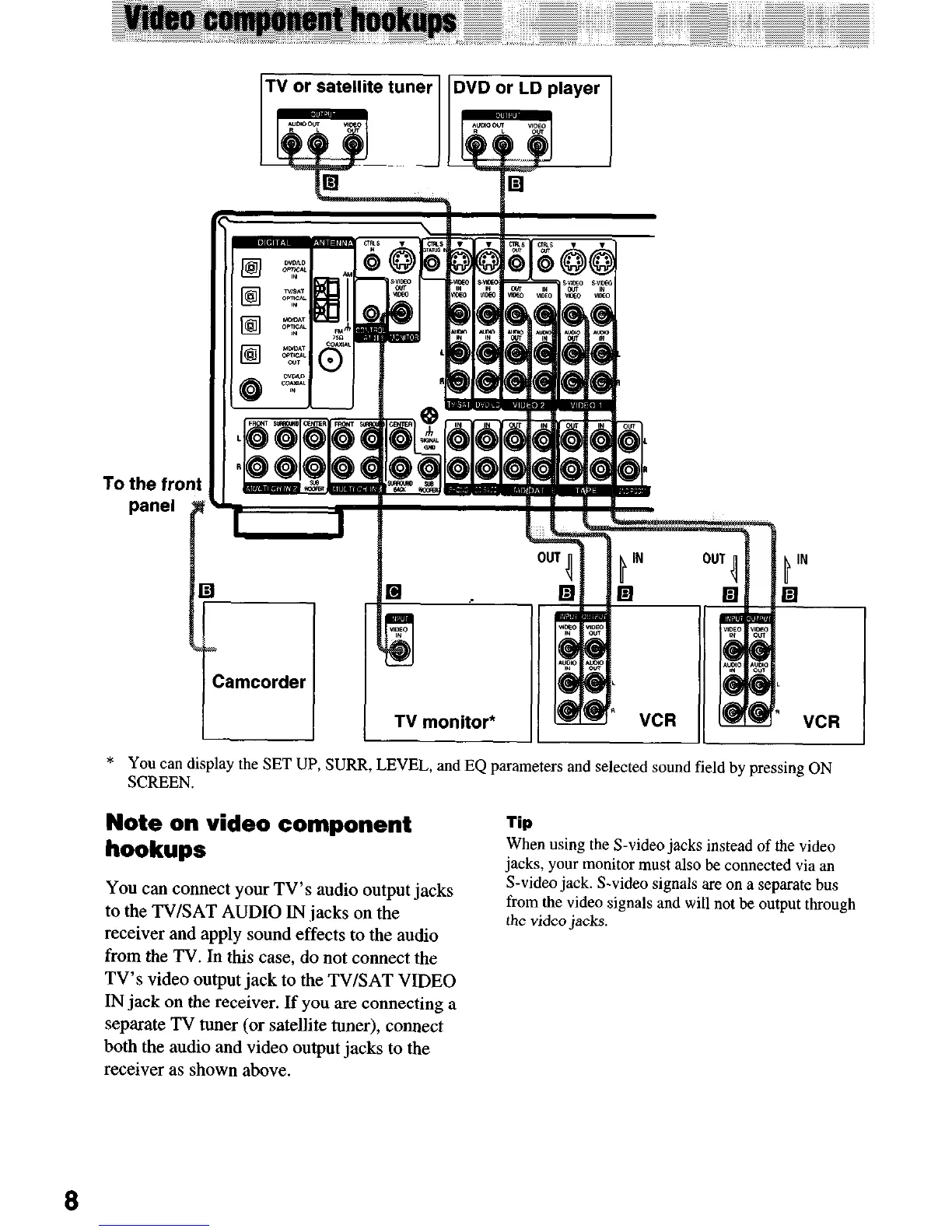

TV or satellite tuner
DVD or LD player
To he fro
panel
monitor*
* You can display the SET UP, SURR, LEVEL, and EQ parameters and selected sound field by pressing ON
SCREEN.
Note on video component
hookups
Tip
When using the S-video jacks instead of the video
jacks, your monitor must also be connected via an
You can connect your TV’s audio output jacks
to the TV/SAT AUDIO IN jacks on the
receiver and apply sound effects to the audio
from the TV. In this case, do not connect the
TV’s video output jack to the TV/SAT VIDEO
IN jack on the receiver. If you are connecting a
separate TV tuner (or satellite tuner), connect
both the audio and video output jacks to the
receiver as shown above.
S-video jack. S-video signals are on a separate bus
from the video signals and will not be output through
the video iacks.
