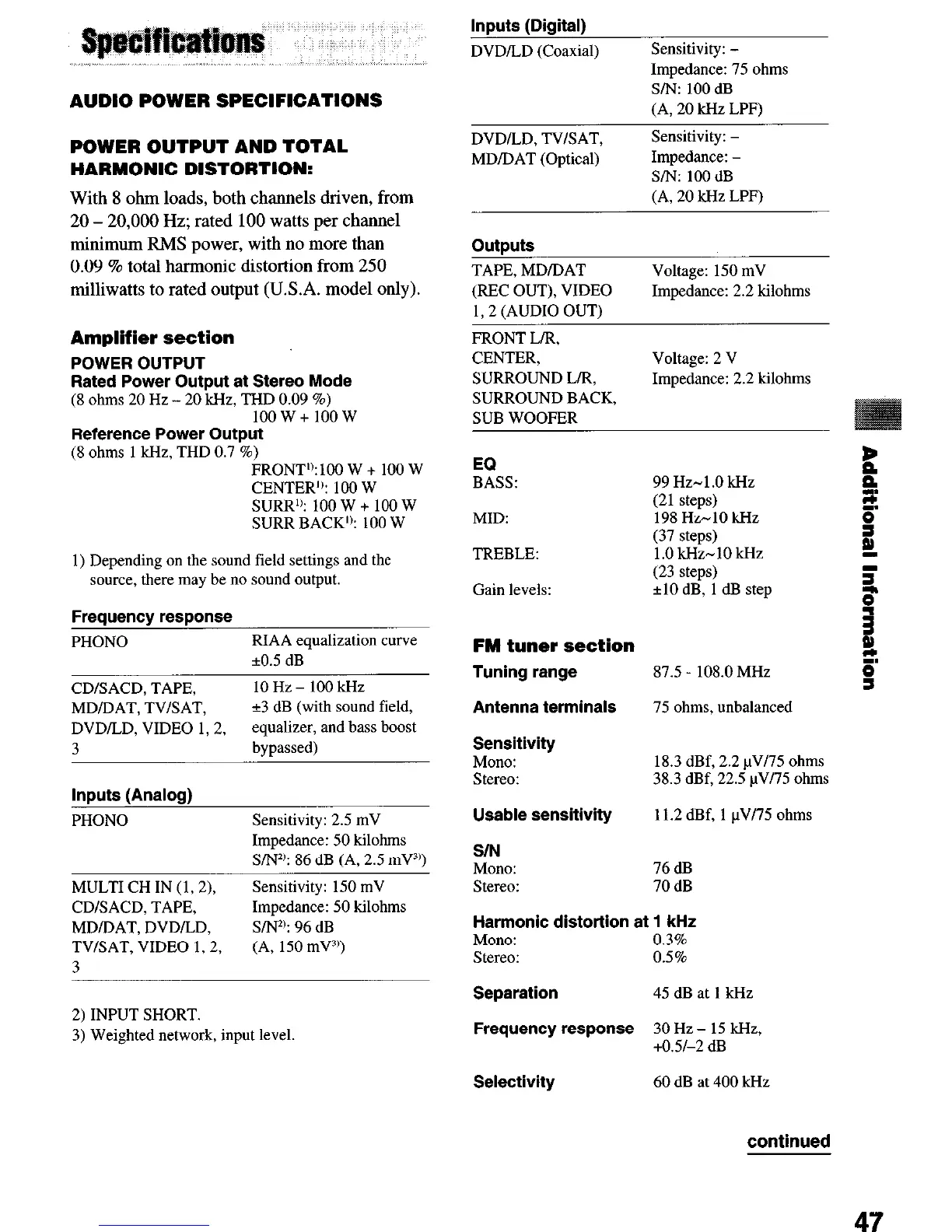

AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from
20 - 20,000 Hz; rated 100 watts per channel
minimum RMS power, with no more than
0.09 % total harmonic distortion from 250
milliwatts to rated output (U.S.A. model only).
Amplifier section
POWER OUTPUT
Rated Power Output at Stereo Mode
(8 ohms 20 Hz - 20 kHz, THD 0.09 %)
1oow+1oow
Reference Power Output
(8 ohms 1 kHz, THD 0.7 %)
FRONT? 100 W + 100 W
CENTER? 100 W
SURR? 100 w + loo w
SURR BACK”: 100 W
1) Depending on the sound field settings and the
source, there may be no sound output.
Freauencv resoonse
PHONO RIAA
equalization curve.
*0.5
dB
CDISACD, TAPE, lOHz- 1OOkHz
MD/DAT, TV/SAT,
+3 dB (with sound field,
DVD/LD, VIDEO 1,2,
equalizer, and bass boost
3 bypassed)
Inputs (Analog)
PHONO Sensitivity: 2.5 mV
Impedance: 50 kilohms
S/N? 86 dB (A, 2.5 mV”)
MULTI CH IN (1,2),
Sensitivity: 150 mV
CDISACD, TAPE,
Impedance: 50 kilohms
MD/DAT, DVDiLD,
SW: 96
dB
TV/SAT, VIDEO 1,2, (A, 150 mV3))
3
2) INPUT SHORT.
3) Weighted network, input level
Inputs (Digital)
DVD/LD
(Coaxial)
Sensitivity: -
Impedance: 75 ohms
s/N: 100 dB
(A, 20 Wz LPF)
DVDiLD, TV/SAT,
MD/DAT (Optical)
Sensitivity: -
Impedance: -
S/N: 100 dB
(A, 20 kHz LPF)
outputs
TAPE, MDIDAT
(REC OUT), VIDEO
Voltage: 150 mV
Impedance: 2.2 kilohms
1,2 (AUDIO OUT)
FRONT L/R,
CENTER,
SURROUND L/R,
SURROUND BACK,
SUB WOOFER
Voltage: 2 V
Impedance: 2.2 kilohms
EQ
BASS: 99Hz-l.OkHz
(21 steps)
z
I.
MID: 198 Hz-10 kHz
(37 steps)
TREBLE: l.OkHz-1okHz
%
(23 steps)
Gain levels: *lo dB, 1 dB step
5
s
g
FM tuner section
s
Ia
Tuning range
87.5 - 108.0 MHz
:
Antenna terminals 75 ohms, unbalanced
Sensitivity
Mono:
Stereo:
18.3 dBf, 2.2 pV/75 ohms
38.3 dBf, 22.5 pV/75 ohms
Usable sensitivity 11.2 dBf, 1 pV/75 ohms
S/N
Mono: 76dB
Stereo: 70
dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response 30 Hz - 15 kHz,
+0.5/-2 dB
Selectivity 60 dB at 400 kHz
continued
47
