Sony STR-DN1050 - Section 2: Disassembly Procedures; Disassembly Flow and Case Removal

STR-DN1050
12
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

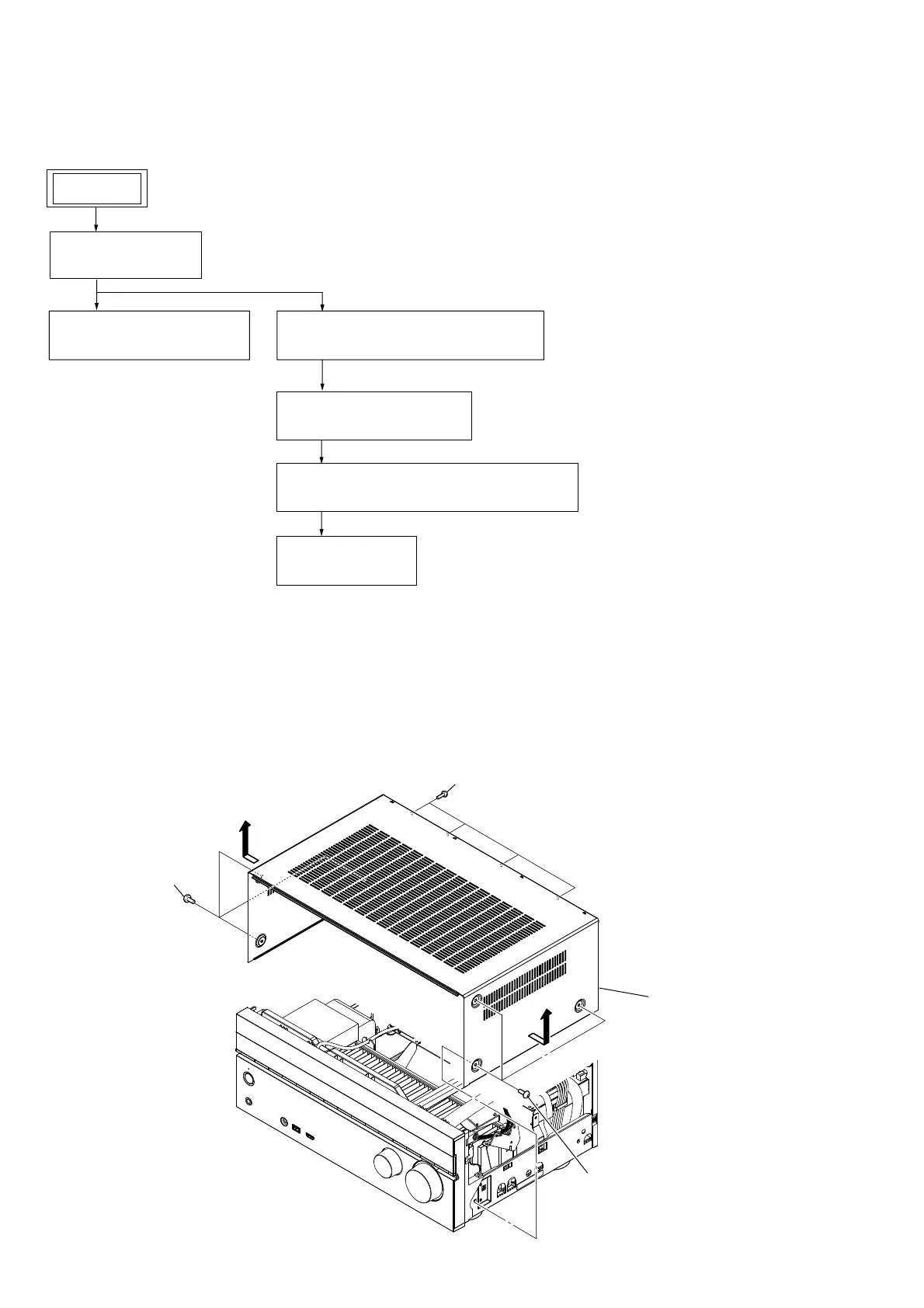

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE (STEPUP)
3 four screws
(+BVTP 3 u 8)
4
2 three screws
(B-TYPE 4 u 8)
5 case (stepup)
1 three screws
(B-TYPE 4 u 8)
4
2-2. CASE (STEPUP)
(Page 12)
2-6. STANDBY BOARD, MAIN BOARD SECTION
(Page 16)
2-7. MAIN BOARD
(Page 16)
2-5. BACK PANEL SECTION
(Page 15)
2-4. DIGITAL BOARD, NETWORK BOARD
(Page 14)
2-3. FRONT PANEL SECTION
(Page 13)
SET
