Sony STR-DN1050 - STANDBY Board, MAIN Board Section; MAIN Board

STR-DN1050
16

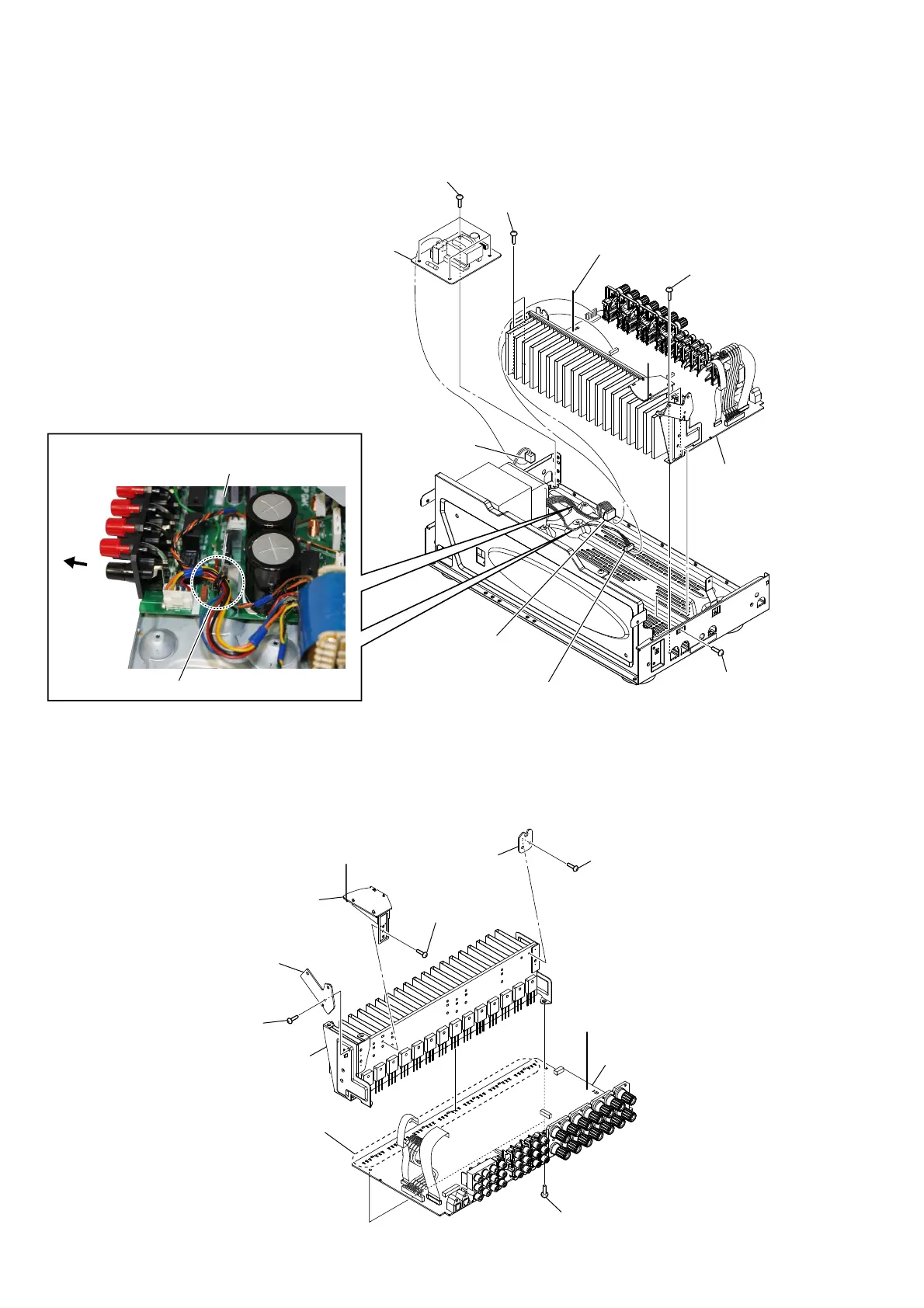

2-7. MAIN BOARD
Note: This illustration sees the MAIN board from back side.
7 heat sink section
9 two screws
(+BVTP 3 u 8)
0 MAIN board
8 Remove the
forty-two solders.
1 one screw
(+BVTP 3 u 8)
5 one screw
(+BVTP 3 u 8)
6 SUPPORT board
2 INSULATION board
4 USB INSULATION
MT PC board
3 one screw
(+BVTP 3 u 8)
2-6. STANDBY BOARD, MAIN BOARD SECTION
7 two screws
(+BVTP 3 u 8)
7 two screws
(+BVTP 3 u 8)
9 MAIN BOARD
section
8 one screw
(+BVTP 3 u 8)
2 four screws
(+BVTP 3 u 8)
3 STANDBY board
1 CNP902 (4P)
5 CNP920 (5P)
6 CNP930 (5P)
4 Wire is removed
from the pin, lead.
:LUHVHWWLQJ
pin, lead
MAIN board
rear side
