Sony STR-DN1050 - DIGITAL Board

93
STR-DN1050

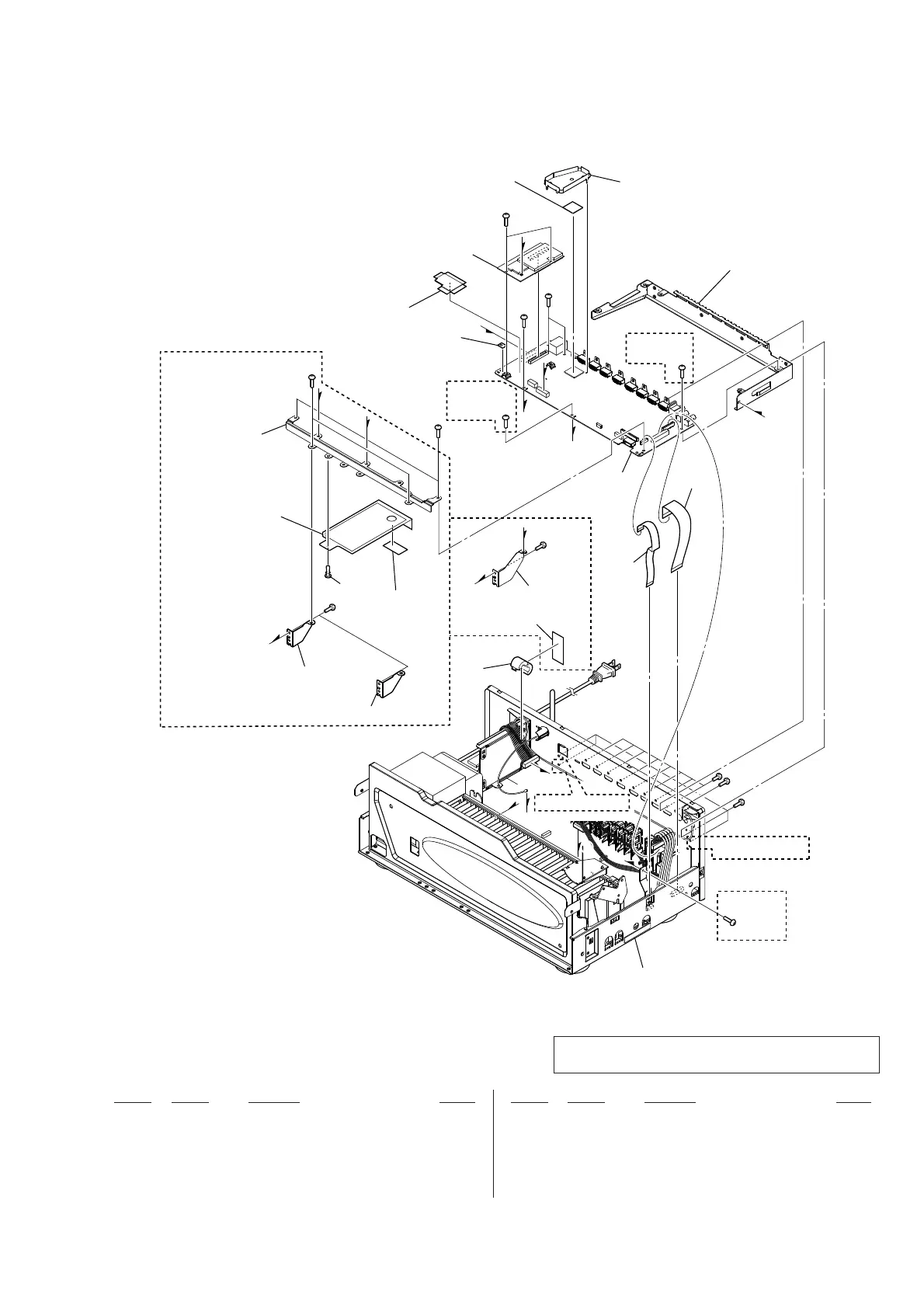

7-3. DIGITAL BOARD
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
101 1-500-082-11 CLAMP, SLEEVE FERRITE (US, CND)
101 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
(EXCEPT US, CND)
102 1-828-240-61 WIRE (FLAT TYPE) (22 CORE)
103 1-828-360-61 WIRE (FLAT TYPE) (19 CORE)
104 A-1989-890-A NETWORK BOARD, COMPLETE (for SERVICE)
105 3-531-576-41 RIVET (DIA. 3), NYLON (AEP, UK, AUS)
106 A-1989-884-A DIGITAL BOARD, COMPLETE (for SERVICE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
H
D
D
B
B
C
C
(AEP, UK, AUS)
(AEP, UK,
AUS)
(AEP, UK, AUS)
F
G
(AEP, UK, AUS)
(US, CND)
E
E
106
105
104
101
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
back panel section
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
102
103
H
H
(US, CND)
(US, CND)
not supplied
not supplied
not supplied
not supplied
F
G
F
