Sony STR-DN1050 - Front Panel Section

92
STR-DN1050

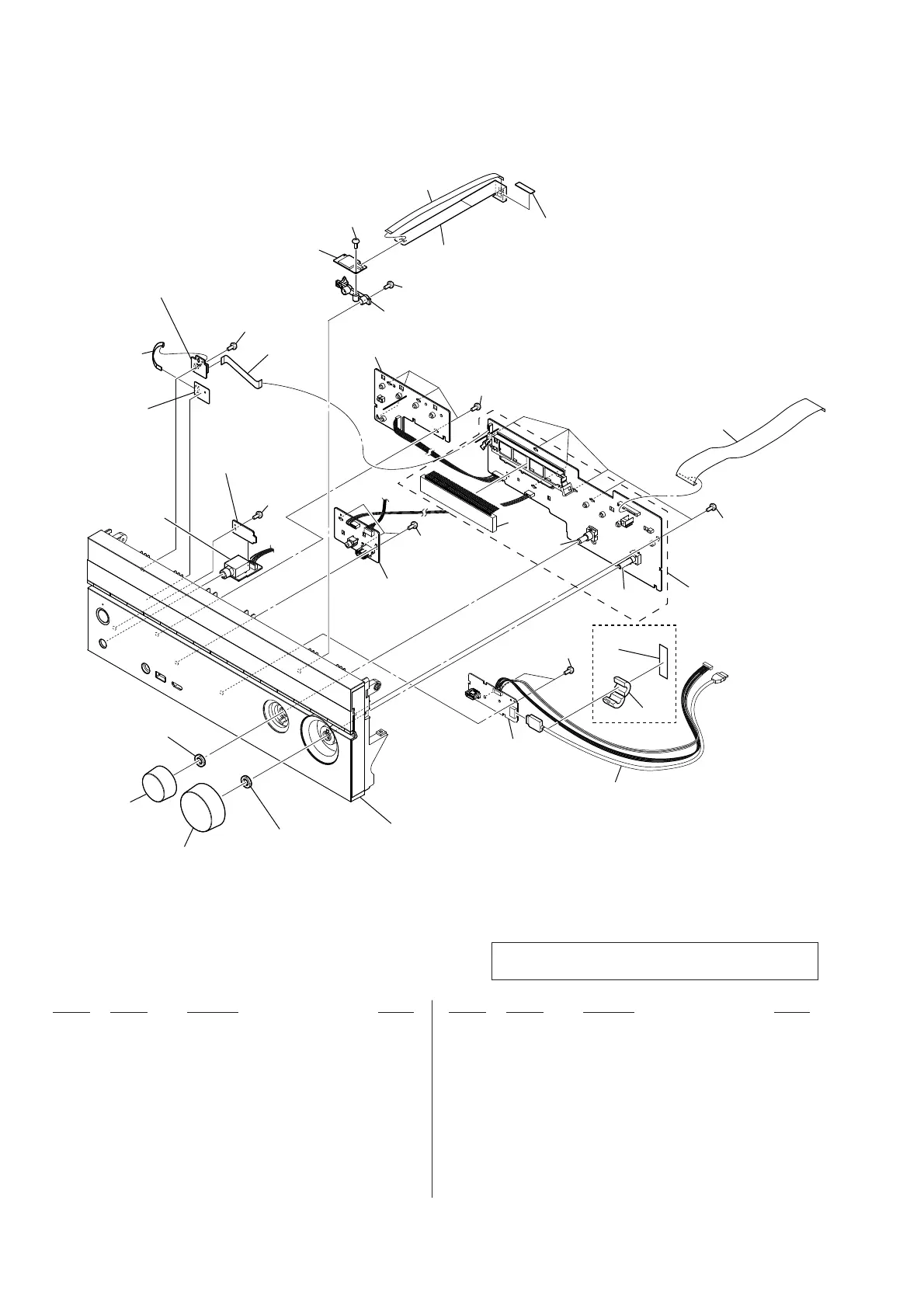

7-2. FRONT PANEL SECTION
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
53
52
51
not supplied
(NFC ICON PC board)
supplied with
EN101
supplied with
EN100
63
54
54
55
54
65
66
62
64
56
57
58
ND100
EN100
EN101
not supplied
(HEADPHONE board)
not supplied
(HP SUPPORT board)
not supplied
not
supplied
59
54
54
54
54
54
not supplied
not supplied
61
60
(US, CND)
51 X-2588-819-1 FRONT PANEL ASSY
52 4-442-859-01 KNOB, MENU
53 4-442-860-01 KNOB, VOLUME
54 3-087-053-01 +BVTP2.6 (3CR)
55 A-1989-183-A POWER KEY BOARD, COMPLETE
56 A-1989-182-A DISPLAY BOARD, COMPLETE
57 1-828-412-61 WIRE (FLAT TYPE) (29 CORE)
58 A-1989-184-A FRONT JACK BOARD, COMPLETE
59 A-1989-192-A HDMI FRONT IN BOARD, COMPLETE
60 1-500-082-11 CLAMP, SLEEVE FERRITE
61 1-848-318-11 HDMI CABLE
62 1-828-308-61 WIRE (FLAT TYPE) (9 CORE)
63 1-828-167-61 WIRE (FLAT TYPE) (8 CORE)
64 8-989-470-05 RC-S801/A5 (WW)
65 1-490-558-72 BLUETOOTH MODULE
66 1-828-201-61 WIRE (FLAT TYPE) (14 CORE)
EN100 1-418-817-21 ENCODER, ROTARY (INPUT SELECTOR)
EN101 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
ND100 1-811-724-11 VACUUM FLOURESCENT DISPLAY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
