6-42. PRINTED WIRING BOARD – HEADPHONE Board –
• See page 26 for Circuit Boards Location.
•
: Uses unleaded solder.

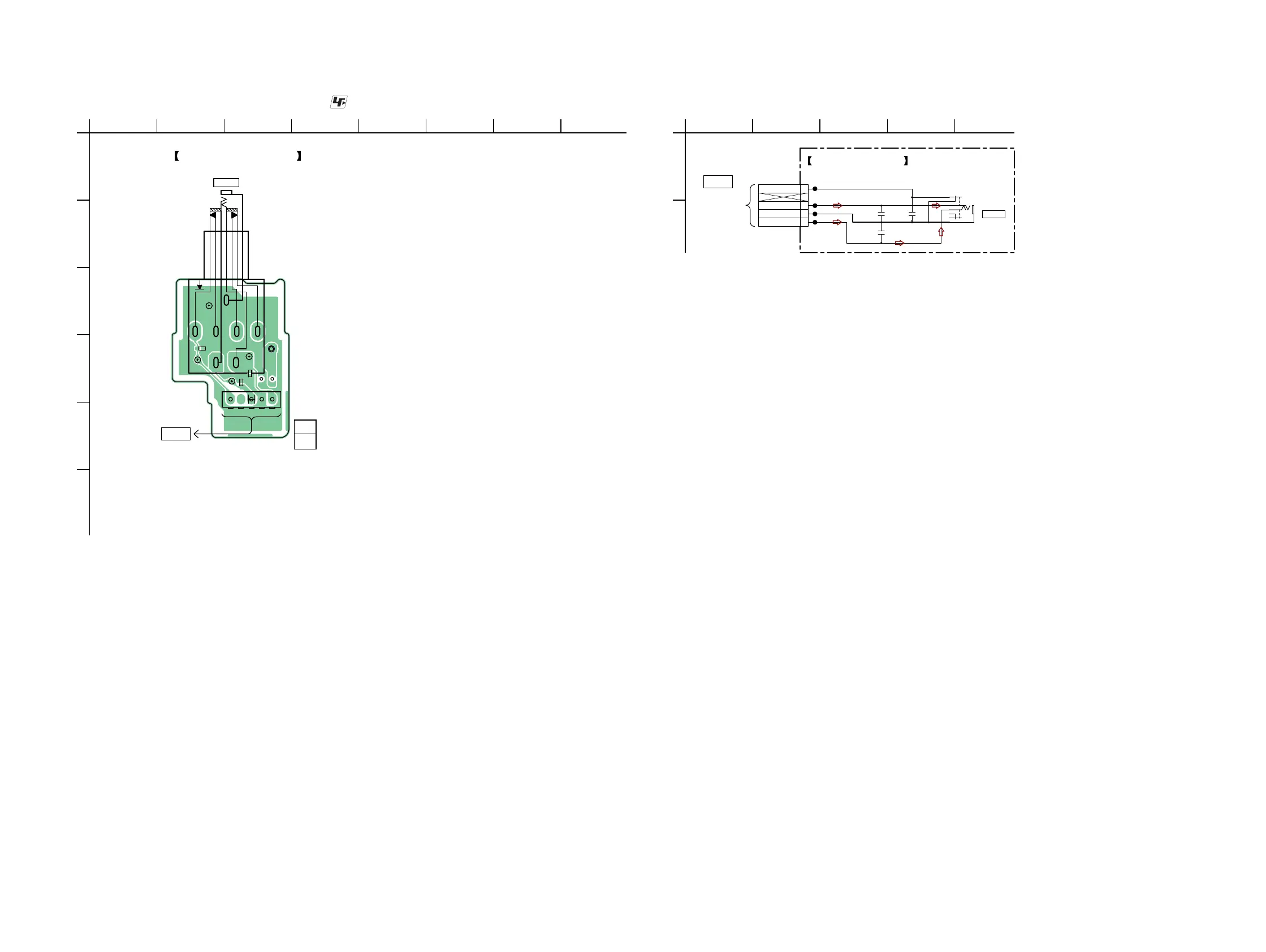

6-43. SCHEMATIC DIAGRAM – HEADPHONE Board –
1
A
B
2 3 45
HEADPHONE BOARD
CL185
CL186
CL187
CL188
CN107
5P
C160
0.001u
C162
0.001u
C161
0.001u
J101
PHONES
1HP_DETECT
3HP_R
4HP_GND
5HP_L
1
2
3
4
5
6
7
>050S
MAIN BOARD
(2/4)
CN391
(Page 52)
1
A
B
C
D
E
F
2 3 4 5 6 78
LP106
J101
153
CN107
C160
C162
C161
CL185
CL186
CL187
CL188
>012P
HEADPHONE BOARD
PHONES
1-889-541-
12
(12)
MAIN
BOARD
CN391
(Page 49)
