Sony STR-DN1050 - Front Panel Section

STR-DN1050
13

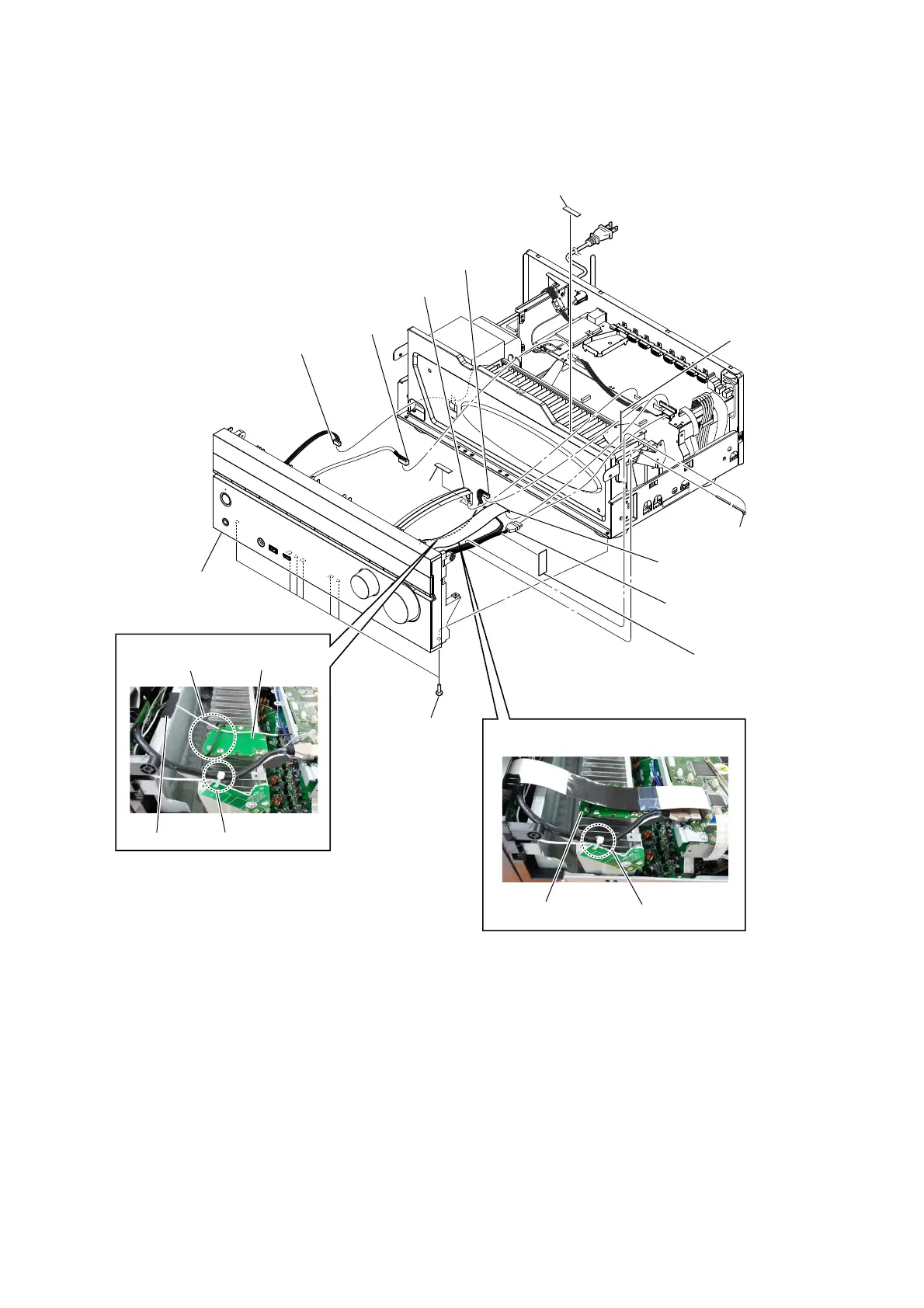

2-3. FRONT PANEL SECTION
qs seven screws
(+BVTP 3 u 8)
5 Wire is removed
from the pin, lead.
3 wire (flat type)
(14 core) (CN4800)
2 cushion (R)
9 cushion (R)
cushion (R)
1 CN4000 (5P)
0 CN3518 (7P)
qa CN391 (4P)
qd front panel section
4 wire (flat type)
(29 core) (CN2101)
8 HDMI cable
(CN3508)
7 teflon tape
6 Cut the cable tie
cable tie
INSULATION board
INSULATION board
:LUHVHWWLQJ
:LUHVHWWLQJ
pin, lead
cable tie
