For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in  and 1/4 W or less unless otherwise
specifi ed.
•
f
: internal component.
• 2 : nonfl ammable resistor.
• C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
f : TUNER
L : USB
E : VIDEO
J : AUDIO (DIGITAL)
N : MIC
• Abbreviation
AUS : Australian model
CND : Canadian model
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
•
f
: Internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Note:
The components identi-
fi ed by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specifi ed.
Note:
Les composants identifi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le nu-
méro spécifi é.
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• HDMI board and DSP board are multi-layer printed board.
However, the patterns of intermediate-layers have not
been included in diagrams.
• Indication of transistor.
C
B
These are omitted.
E
Q
• Abbreviation
AUS : Australian model
CND : Canadian model
* Replacement of Q550, Q551, Q600, Q601, Q650,
Q651, Q700, Q701, Q750, Q751, Q800, Q801, Q850
and Q851 on the MAIN board used in this unit requires
L type screw driver.
* Replacement of Q550, Q551, Q600, Q601, Q650,
Q651, Q700, Q701, Q750, Q751, Q800, Q801, Q850
and Q851 on the MAIN board used in this unit requires
L type screw driver.

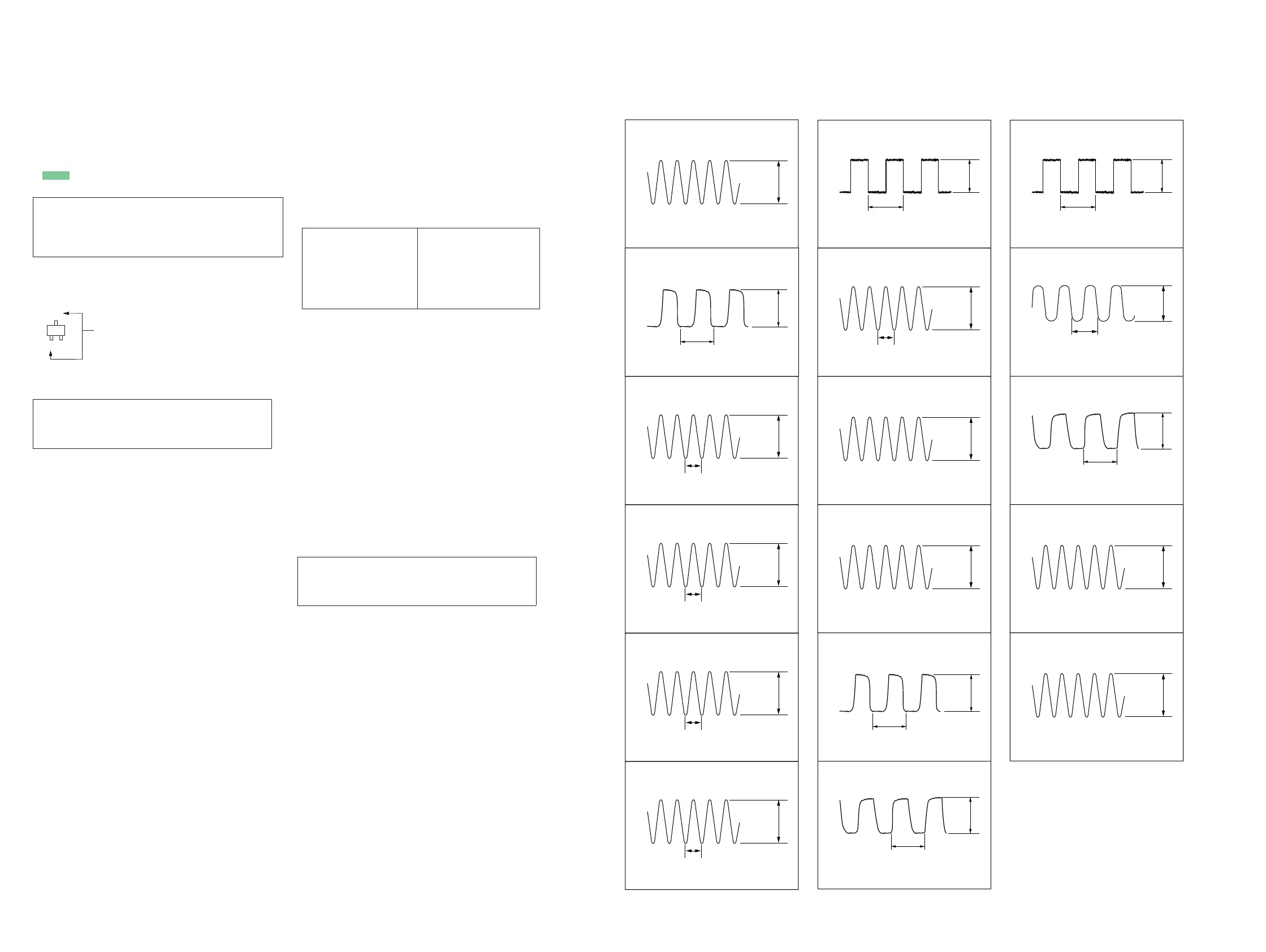

• Waveforms
– DIGITAL Board –
1.2 Vp-p
24.5 MHz
0 IC2107 es (XIN)
200 mV, 10 ns/DIV
8.8 Vp-p
20 ms
3 IC2107 3 (MCKIN)
2 V/DIV, 5 ms/DIV
8.8 Vp-p
20 ms
4 IC2107 4 (BCKIN)
2 V/DIV, 5 ms/DIV
9.12 Vp-p
20 ms
5 IC2107 5 (LRCKIN)
2 V/DIV, 5 ms/DIV
9.0 Vp-p
20 ms
6 IC2107 qf (BCKOUT)
2 V/DIV, 5 ms/DIV
3.36 Vp-p
20 ms
8 IC2107 qh (DATAOUT)
500 mV/DIV, 5 Ps/DIV
1.2 Vp-p
24.5 MHz
9 IC2107 ea (XOUT)
200 mV/DIV, 10 ns/DIV
2 IC2100 rl (PE3/X1)
100 mV/DIV, 50 ns/DIV
4.0 MHz
352 mVp-p
qa IC2502 wg (XTAL2)
200 mV/DIV, 10 ns/DIV
25.0 MHz
760 mVp-p
3.12 Vp-p
4.0 MHz
qf IC3000 ij (X1)
500 mV/DIV, 100 ns/DIV
3.0 Vp-p
4.0 MHz
1 IC2100 rk (PE2/X0)
500 mV/DIV, 100 ns/DIV
qd IC2502 ok (BCLK_OUT)
100 mV/DIV, 25 ns/DIV
68.3 ns
492 mVp-p
7 IC2107 qg (LRCKOUT)
500 mV/DIV, 5 Ps/DIV
20 ms
3.36 Vp-p
qs IC2502 ug (BCLK_IN)
500 mV/DIV, 100 ns/DIV
2.2 Vp-p
3.0 MHz
qg IC3201 ws (XTAL)
50 mV/DIV, 10 ns/DIV
264 mVp-p
28.63 MHz
80 mVp-p
27.0 MHz
qh IC3506 <zzc (XTALOUT)
20 mV/DIV, 10 ns/DIV
180 mVp-p
27.0 MHz
qj IC3506 <zzv (XTALIN)
50 mV/DIV, 100 ns/DIV
