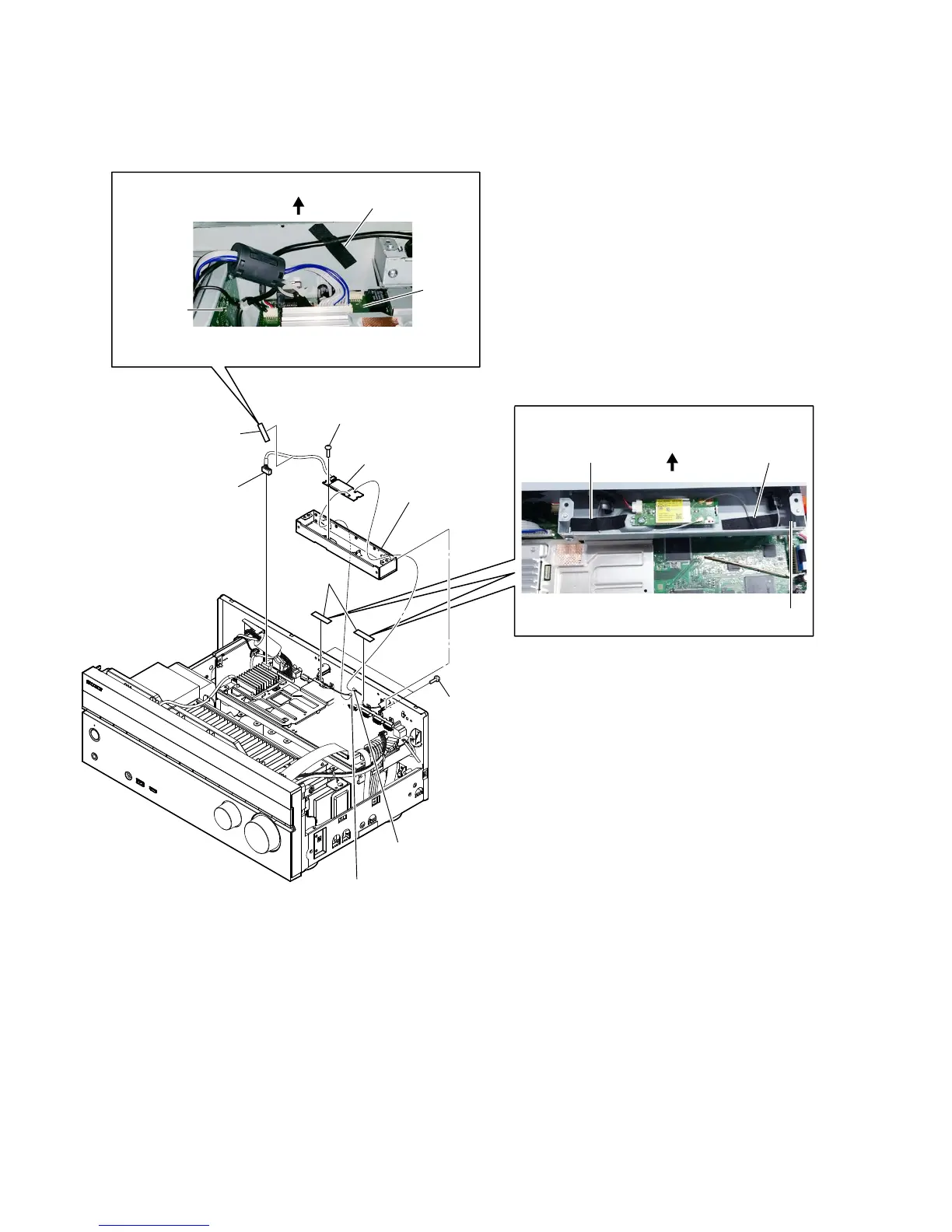

2-5. CARD WLAN/BT COMBO (DN1060)
9 card WLAN/BT combo
4 CON4 (1P)
5 CON5 (1P)
7 bracket,
module (bottom)
1 CN502 (5P)
3 cushion (R)
2 cushion (R)
6 two screws
(+BVTP 3 u 8)
8 one screw
(+BVTP 3 u 8)
Note: Process so that lead wire
does not contact CN301 and W1990
rear side
DCDC board
MB-1409
board
cushion (R)
rear side
bracket, module (bottom)
cushion (R)
cushion (R)
