Sony STR-DN1060 - MAIN Board

STR-DN860/DN1060
19

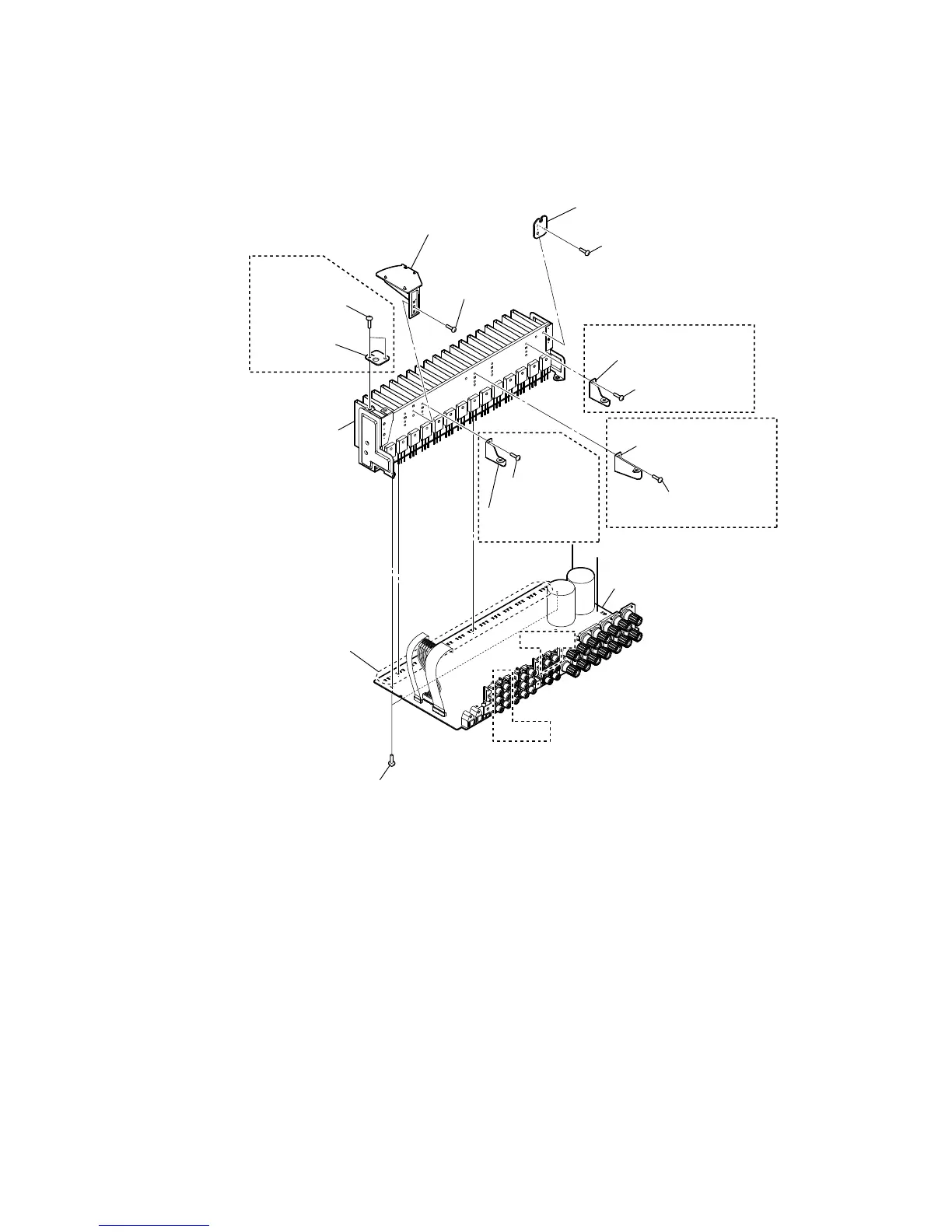

2-12. MAIN BOARD
Note : This illustration sees the MAIN board from back side.
9 heat sink section
qa two screws
(+BVTP 3 u 8)
qs MAIN board
0 Remove the
forty-two solders.
1 one screw
(+BVTP 3 u 8)
2 INSULATION board
4 USB INSULATION
board
3 one screw
(+BVTP 3 u 8)
7 one screw
(+BVTP 3 u 8)
7 one screw
(+BVTP 3 u 8)
8 bracket, HDMI support
7 one screw
(+BVTP 3 u 8)
5 two screws
(+BVTP 3 u 8)
6 SUPPORT
board
8 bracket, support beam
8 bracket,
support beam
(DN1060)
(DN1060)
(DN1060)
(DN1060)
(DN1060)
(DN860)
