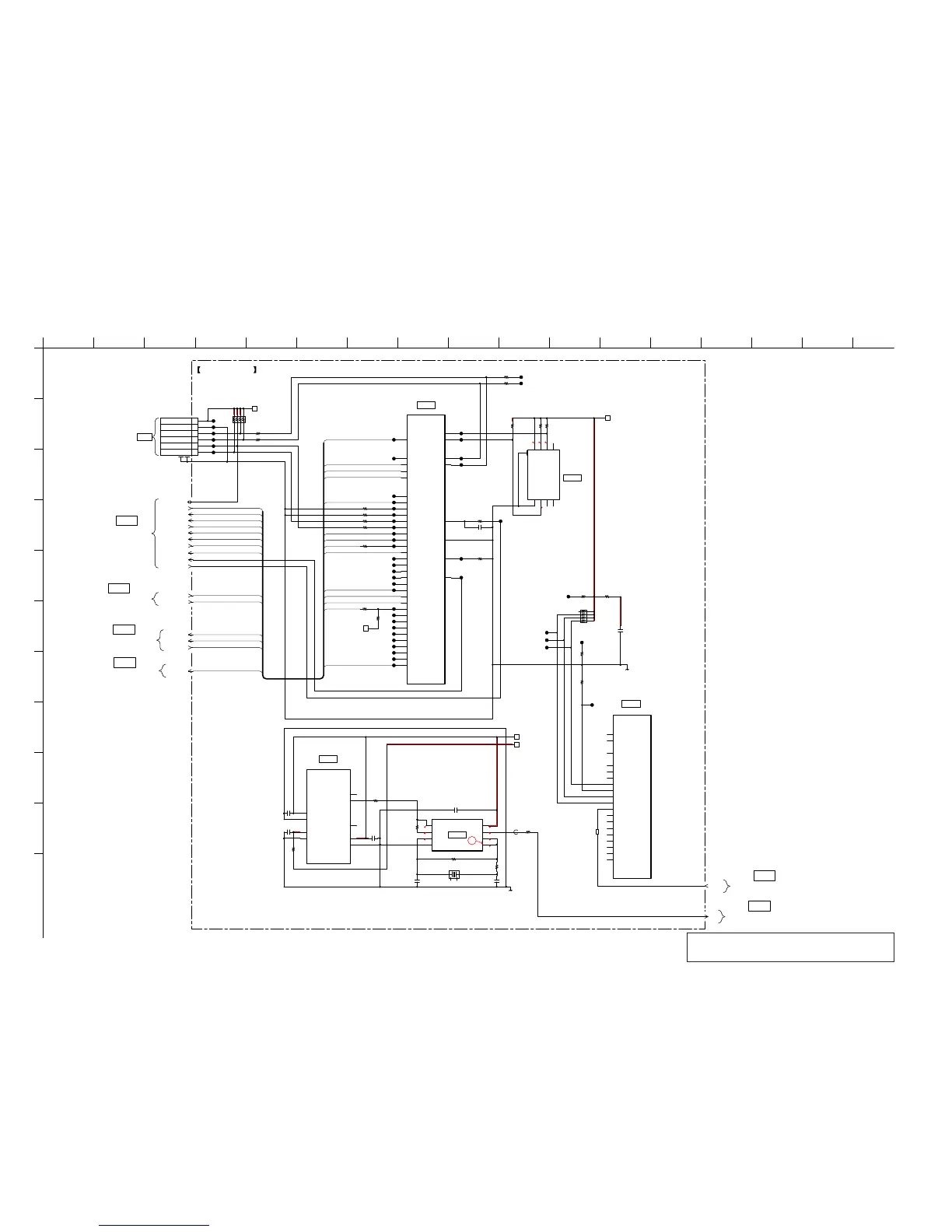

6-13. SCHEMATIC DIAGRAM – MB-1409 Board (4/18) –
• See page 42 for Waveforms. • See page 91 for IC Pin Function Descriptions.
1
A
B
C
D
E
F
G
H
I
J
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
MB-1409 BOARD (4/18)
3.3
3.3 0 3.3
1.7 3.3
1.7
1.7
1.7
1.7
1.6
UART/GPIO
G4
AMUTE
AH27
VSTB
AG27
VDATA
AG26
VCLK
AG28
LCDRD
E4
GPIO0
D1
GPIO1
E2
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
E1
G1
H2
E3
F3
AG25
H3
C4
GPIO10
C5
GPIO11
A2
GPIO12
C3
GPIO13
A1
GPIO14
C1
GPIO15
D2
GPIO16
D3
GPIO17
D4
GPIO18
F5
GPIO19
G5
GPIO20
F4
GPIO21
G3
GPIO22
G2
GPIO23
B2
GPIO24
B1
GPIO25
C2
GPIO26
AC24
GPIO27
B3
SCL
A3
SDA
AH26
UATXD
AF25
UARXD
AF26
RESET_
H1
EFPWRQ
AH28
IR
AH25
OPWRSB
VIDEO OUT
L25
VOUTVSYNC
L24
VOUTHSYNC
P22
VOUTCLK
W26
VOUTD0
W25
VOUTD1
V23
VOUTD2
R24
VOUTD3
V24
VOUTD4
V25
VOUTD5
U25
VOUTD6
U24
VOUTD7
R23
VOUTD8
U23
VOUTD9
T26
VOUTD10
U26
VOUTD11
P24
VOUTD12
P25
VOUTD13
P23
VOUTD14
P26
VOUTD15
CLOCK/PLL/POWER
F26
AVDD33_PLLGP
L22
AVSS33_PLLGP
D26
AVDD33_DAC
K23
AVSS33_DAC
C28
NS_XTALO
C27
NS_XTALI
AB21
AVDD12_LDO
AD20
AVDD33_LDO
AB20
AVSS33_LDO
0.1u
C433
0.1u
C434
0.1u
C435
C403
0.1u
10p
C438
0.1u
C436
CN401
6P
1
2
3
4
5
6
MTKSTB_3.3V
MTKSTB_3.3V
MTK_3.3V
MTKSTB_3.3V
MTK_3.3V
0uH
FB401
JL441
JL411
JL428
JL410
JL409
JL431
JL430
JL429
JL448
JL436
JL406
JL405
JL404
JL403
JL402
JL401
JL407
JL449
JL433
JL420
JL434
JL414
JL432
JL413
JL418
JL416
JL445
JL444
JL443
JL442
JL417
JL440
JL439
JL438
JL437
JL415
JL435
JL419
JL447
JL446
0
R466
10k
RB401
R419 100
100R423
0.1uC402
R431 100
R430 100
R418 100
R428
JL424
10k
R429
JL425
JL422
JL423
JL426
10k
0
R452
R465
2.2k
R462
2.2k
R463
2.2k
RB402
10k
R432
1k
R427
10k
10kR467
10kR468
100R420
100R421
0R472
0R470
R443
0
820
R478
100
R475
100
R474
100
R476
1MR477
R473
10k
IF_SDO
STRAP_XAMUTE
IF_SDO
STRAP_XAMUTE
START_BIT
UPG_STATUS
SYS_REQ
WOL_INT
USB_PCONT
STRAP_GPIO9
OCPI
XIF_CS
WIFI_PCONT
MTK_MUTE
IF_SCK
IF_SDI
START_BIT
STRAP_GPIO9
XIF_CS
OCPI
SYS_REQ
MTK_MUTE
USB_PCONT
IF_SDI
IF_SCK
CLK
UPG_STATUS
WOL_INT
OPWRSB
WIFI_PCONT
IF_SDO
STRAP_XAMUTE
START_BIT
STRAP_GPIO9
XIF_CS
OCPI
SYS_REQ
MTK_MUTE
USB_PCONT
IF_SDI
IF_SCK
UPG_STATUS
WOL_INT
WIFI_PCONT
EXT_JIG_MODE1
TC7WHU04FK
IC401
1A
1
3Y
2
2A
3
GND
4
2Y
5
3A
6
1Y
7
VCC
8
MFI337S3959
IC110
GND
1
SDA
2
NC_3
3
NC_4
4
NC_5
5
SCL
6
RST
7
VCC
8
9
27MHz
X401
GND
GND
10p
C437
ADC_IN
GND
JIG_MODE0
JIG_MODE1
TXD
3.3V
RXD
CPU_XRST
IC101 (8/15)
CXD90028GB-B (EXCEPT TW)
CXD90028GB-C (TW)
BD DECODER
IC101
EEPROM
IC110
IC101 (10/15)
CXD90028GB-B (EXCEPT TW)
CXD90028GB-C (TW)
BD DECODER
IC101
RESONATOR
IINVERTER
IC401
IC101 (9/15)
CXD90028GB-B (EXCEPT TW)
CXD90028GB-C (TW)
BD DECODER
IC101
(NC)
>008S
MB-1409 BOARD
(11/18)
(Page 55)
>009S
MB-1409 BOARD (6/18)
(Page 50)
>010S
MB-1409 BOARD (5/18)
(Page 49)
>011S
MB-1409 BOARD (13/18)
(Page 57)
>012S
MB-1409 BOARD (13/18)
(Page 57)
>013S
MB-1409 BOARD (17/18)
(Page 61)
1
Note: IC101 and IC110 on the MB-1409 board cannot exchange
with single. When these parts on the MB-1409 board are
damaged, exchange the entire mounted board.
