Sony STR-DN1060 - MB-1409 Board (DN1060)

122
STR-DN860/DN1060

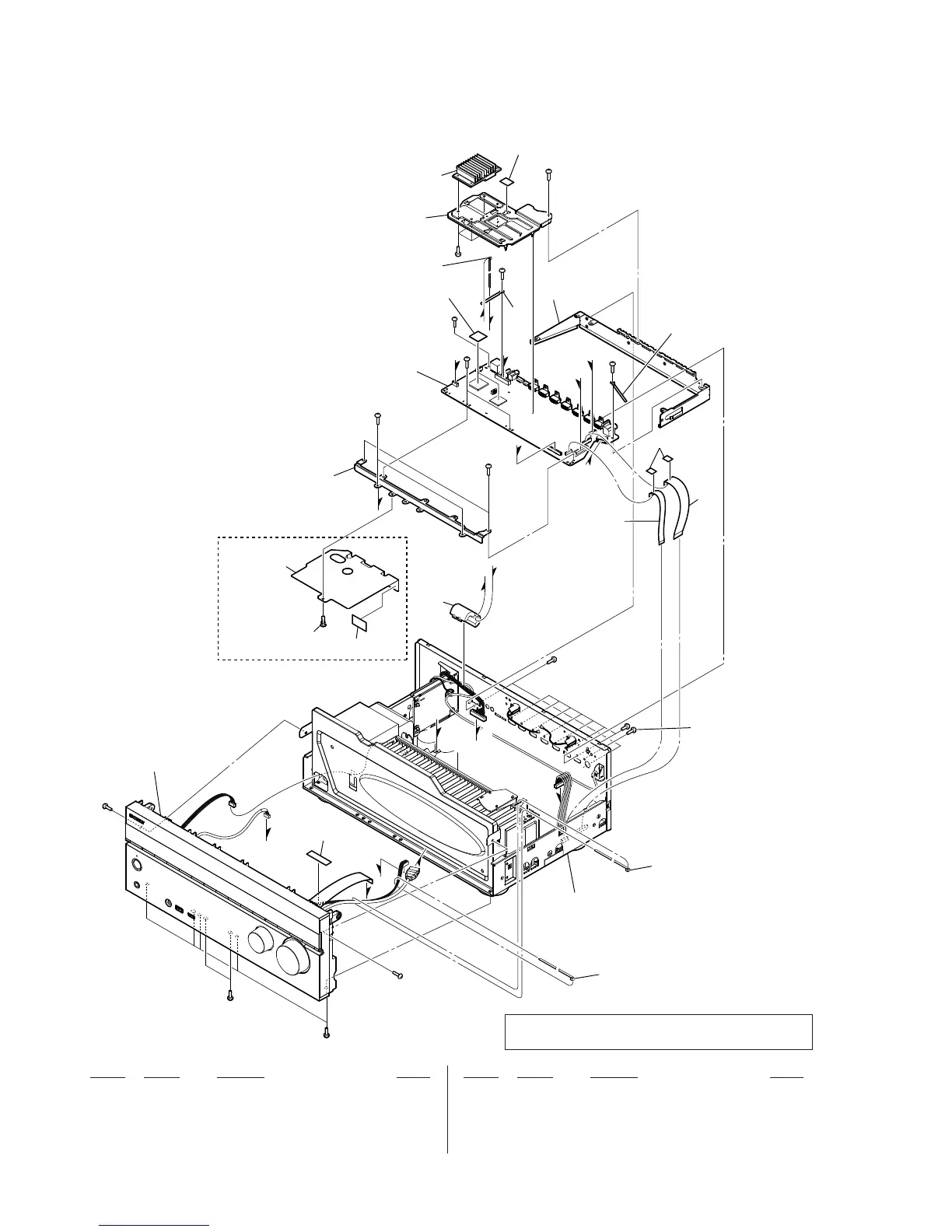

7-3. MB-1409 BOARD (DN1060)
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
101 1-828-240-61 WIRE (FLAT TYPE) (22 CORE)
102 1-828-360-61 WIRE (FLAT TYPE) (19 CORE)
103 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
104 4-974-510-11 SCREW (+BV 3X8 CU) (US, CND)
* 105 3-703-150-11 CLAMP
106 3-531-576-41 RIVET (DIA. 3), NYLON (AEP, UK, AUS)
107 4-547-202-01 SHEET, RADIATION
108 A-2074-366-A MB-1409 BOARD (for SERVICE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
I
J
H
J
I
(AEP, UK, AUS)
101
102
105
105
106
F
F
C
C
B
D
B
D
H
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
104 (US, CND)
#1 (AEP, UK, AUS)
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
108
107
not
supplied
not supplied
not
supplied
not
supplied
103
front panel section
back panel section
K
L
K
L
