STR-DN860/DN1060

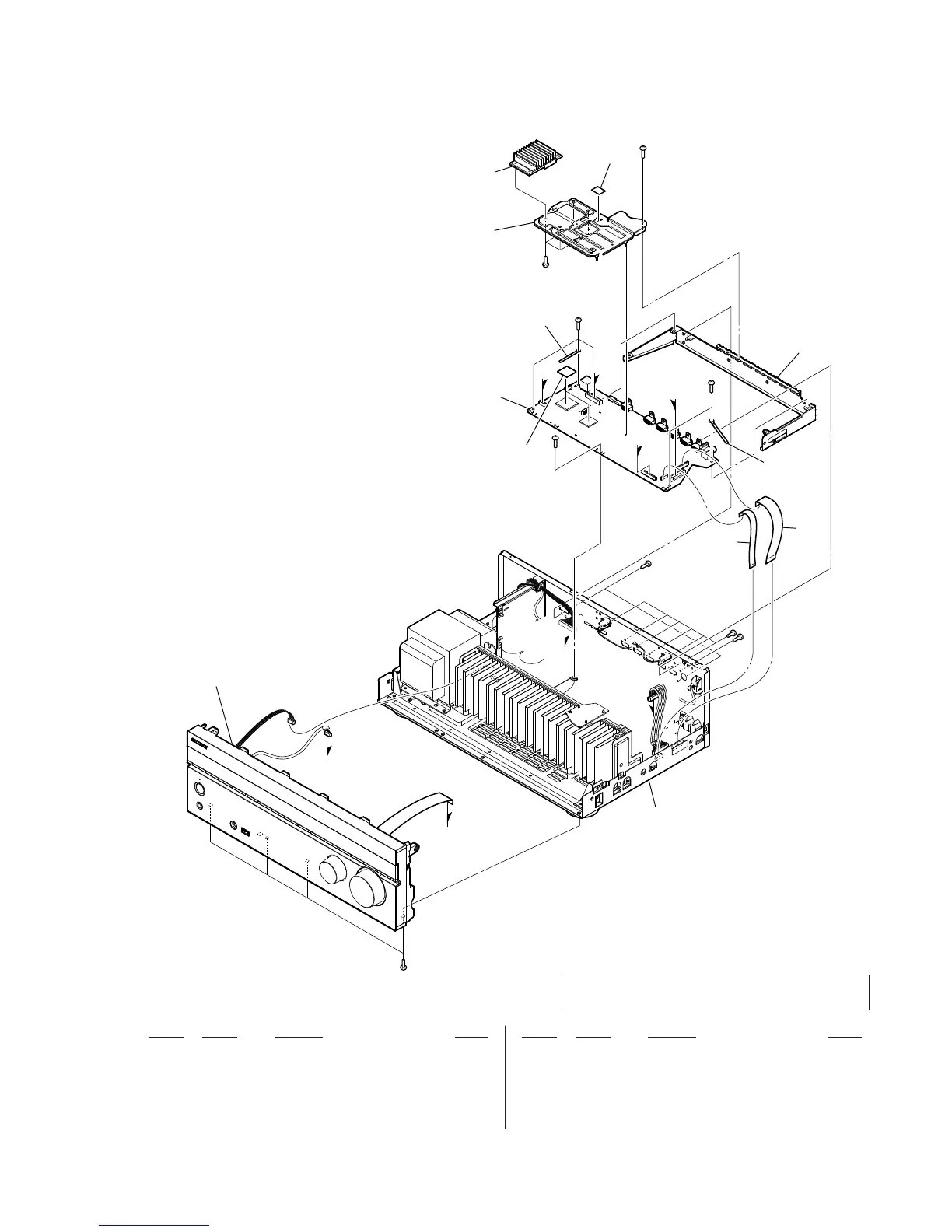

7-2. MB-1409 BOARD (DN860)
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
51 1-828-240-61 WIRE (FLAT TYPE) (22 CORE)
52 1-828-360-61 WIRE (FLAT TYPE) (19 CORE)
* 53 3-703-150-11 CLAMP
54 4-547-202-01 SHEET, RADIATION
55 A-2074-390-A MB-1409 BOARD (for SERVICE)
(AEP, UK, AUS, US, CND)
55 A-2074-394-A MB-1409 BOARD (for SERVICE) (TW)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
