2-12
BVM-A14
[Static Convergence Adjustment]
. Horizontal static convergence
1. Adjust RV1 (H STAT) on the C board to align the red
and green dots horizontally at the center of the screen
to overlap.

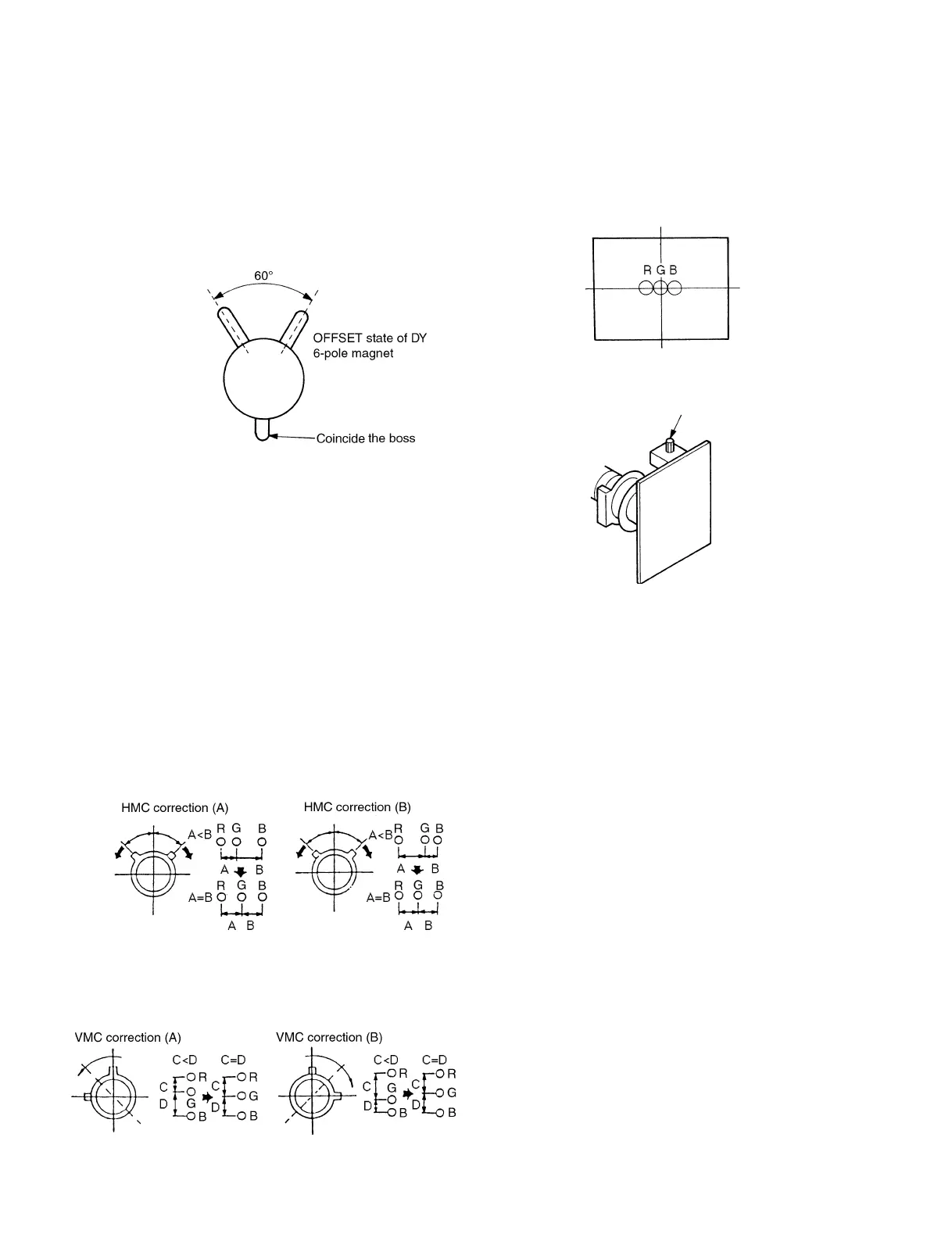

Fig. 1-15
Fig. 1-16
RV1 (H. STAT)
C board
[Convergence Adjustment]
. Preparation
1. Input the MODE9 480/60p (525p) cross-hatch signal
to the BKM-68X (analog component input adaptor).
2. Press the 16 : 9 button to set 4 : 3 mode.
3. Set the 6-pole magnet of the DY to the OFFSET state.
Fig. 1-12
4. Confirm that the following data is in the pre-set value
(128).
V CONV TOP
V STATIC CONV
V CONV BOTTOM
H STATIC CONV
n
These adjustment menus are located in the SYSTEM
CONFIGURATION menu → MAINTENANCE →
DEFLECTION (4/5).
. HMC and VMC correction by the 6-pole magnet
1. HMC (horizontal mis-convergence) correction by the
6-pole magnet and movement electronic beam
Fig. 1-13
2. Correction of 6-pole magnet VMC (vertical mis-
convergence) and movement of electronic beam
Fig. 1-14
