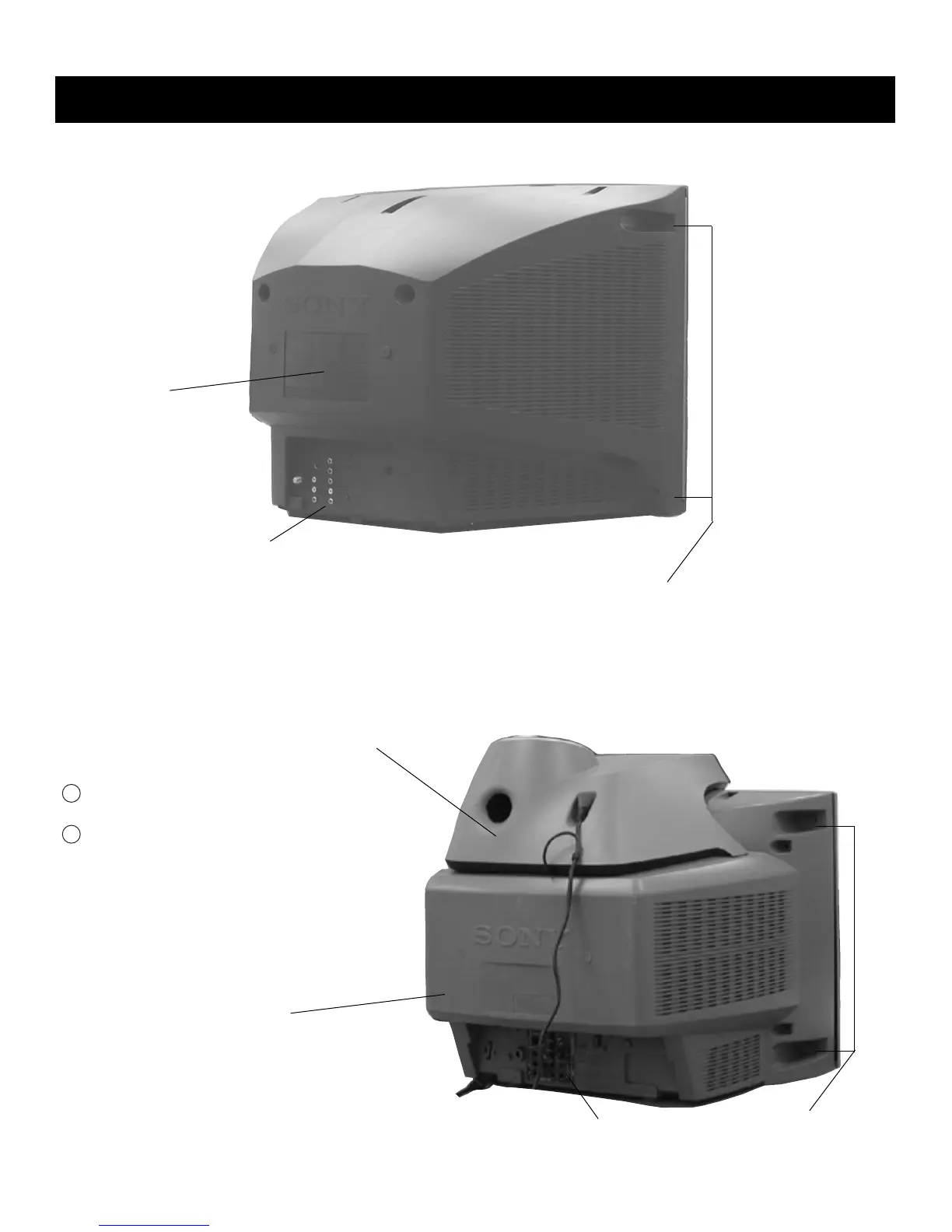

1-1. REAR COVER REMOVAL (ALL EXCEPT KV-21FA310)
SECTION 1: DISASSEMBLY
7 Screws +BVTP 4X16
Rear Cover
Sub Woofer
1
Lift to remove Sub-woofer.
2
Remove screws.
4 screw +BVTP 3 x 10
1-2. REAR COVER REMOVAL (KV-21FA310 ONLY)
7 Screws +BVTP 4X16
(KV-20FS120/21FM120/21FS120 Only)
6 Screws +BVTP 4X16
(KV-24FS120/25FS120 Only)
Rear Cover
3 screw +BVTP 3 x 12
(KV-20FS120/21FS120 Only)
1 Screw +BVTP 4X16
(KV-21FM120 Only)
3 screw +BVTP 3 x 10
(KV-24FS120/25FS120 Only)
