KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
14
11
12
13
10
9
20
19
15
8
6
3
1
22
22
5
4
17
18
16
21
13
2
7

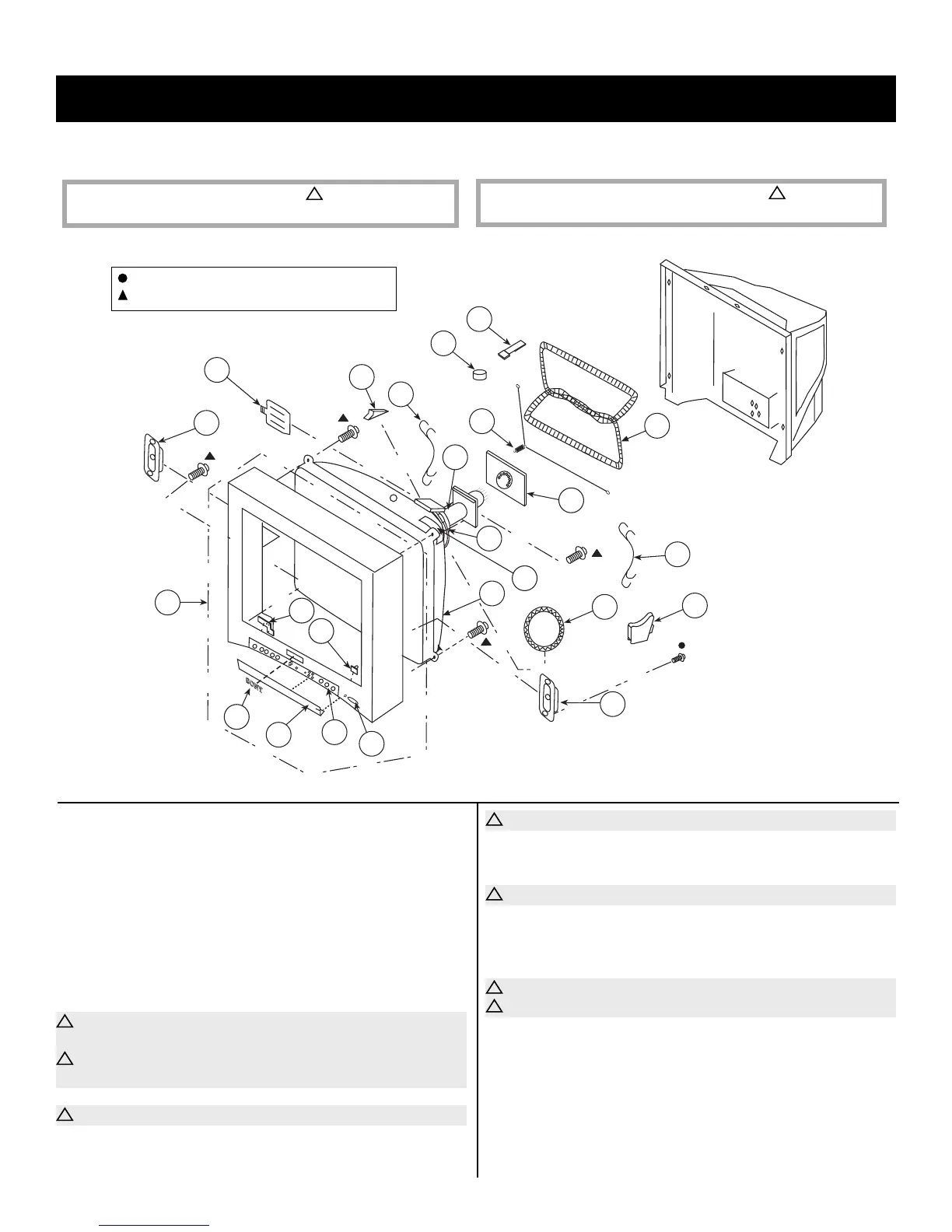

SECTION 6: EXPLODED VIEWS
6-1. PICTURE TUBE (KV-20FS120/21FS120 ONLY)
1 X-4042-988-1 BEZNET ASSY (20) [2-7]
(KV-20FS120 ONLY)
1 X-4042-990-1 BEZNET ASSY (21) [2-7]
(KV-21FS120 ONLY)
2 4-046-161-21 EMBLEM, SONY NO.8
3 4-102-301-11 DOOR
4 4-102-307-01 LABEL, DOOR
5 4-102-305-11 BUTTON, POWER
6 4-102-306-01 GUIDE, LED/IR
* 7 4-083-303-01 SPRING, METAL
!
8 8-738-831-05 CRT 21RSN(SDP)
(ALL EXCEPT KV-21FS120 L SOUTH)
!
8 8-738-838-05 CRT 21RSN(SDP)(SOUTH)
(KV-21FS120 L SOUTH ONLY)
* 9 4-074-576-01 CUSHION, DGC
!
10 8-451-505-71 DY Y21RSA-V
!
11 1-456-285-11 COIL, NA ROTATION (RT-154)
12 4-102-537-01 SUPPORT, CRT(20)
* 13 4-080-810-21 BAND, DEGAUSS COIL
* 14 A-1410-919-A CV (VAR) BOARD, MOUNTED
!
15 1-456-153-11 COIL, DEGAUSSING
16 4-083-414-01 PIECE A(110), CONV CORRECT
17 1-452-032-00 MAGNET, DISC
* 18 4-375-394-01 SPRING, TENSION
!
19 1-451-561-21 NECK ASSEMBLY
!
20 4-053-005-01 SPACER, DY
21 4-057-714-01 PIECE ASSY, TLH CORRECTION
22 1-825-831-11 LOUDSPEAKER (15X6.5CM)
4-384-096-01 SCREW (4X16), TAPPING, +P
4-365-808-01 SCREW (5), TAPPING
