Sony TRINITRON KV-21FA310 - Picture Tube (KV-21 FA310 Only)

56
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.

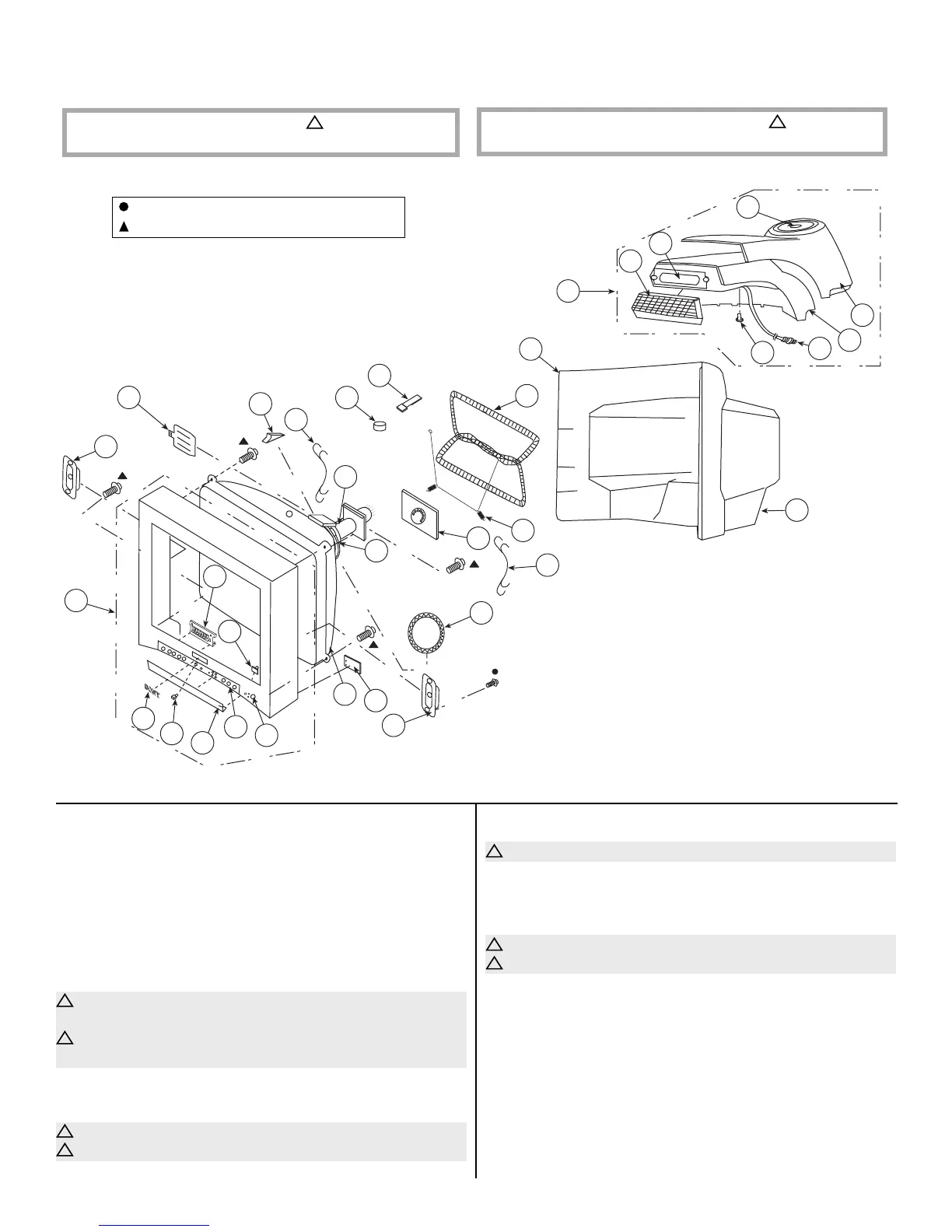

6-5. PICTURE TUBE (KV-21FA310 ONLY)
13
16
14
22
23
12
9
1
5
2
7
6
21
11
16
3
4
10
12
15
18
20
19
24
25
30
29
31
32
26
27
28
17
8
* 1 4-094-381-11 LABEL, 21FA TERMINAL
2 X-4043-168-1 BEZNET ASSY [3-9]
3 4-046-161-21 EMBLEM, SONY NO.8
4 4-042-192-01 CATCHER, PUSH
5 4-087-155-11 DOOR, CONTROL
6 4-074-895-71 LABEL, FRONT TERMINAL (20)
7 4-087-150-41 BUTTON, POWER
8 4-087-156-01 GUIDE, LIGHT
9 4-087-151-01 BUTTON, MULTI
!
10 8-738-831-05 CRT 21RSN(SDP)
(KV-21FA310 L NORTH ONLY)
!
10 8-738-838-05 CRT 21RSN(SDP)(SOUTH)
(KV-21FA310 L SOUTH ONLY)
* 11 A-1415-629-A HR (VAR) BOARD, MOUNTED
12 1-825-808-11 LOUDSPEAKER (19.2CMX4.2CM)
!
13 1-456-285-11 COIL, NA ROTATION (RT-154)
!
14 8-451-505-71 DY Y21RSA-V
* 15 A-1410-919-A CV (VAR) BOARD, MOUNTED
* 16 4-080-810-21 BAND, DEGAUSS COIL
* 17 4-375-394-01 SPRING, TENSION
!
18 1-456-153-11 COIL, DEGAUSSING
19 4-083-414-01 PIECE A(110), CONV CORRECT
20 1-452-032-00 MAGNET, DISC
21 4-057-714-01 PIECE ASSY, TLH CORRECTION
!
22 4-053-005-01 SPACER, DY
!
23 1-451-561-21 NECK ASSEMBLY
24 4-087-153-04 COVER, REAR
* 25 A-1606-602-A SPEAKER ASSY (21) [26-32]
* 26 4-101-825-01 GRILLE, CENTER (W21)
27 1-825-809-11 LOUDSPEAKER (19.2CMX4.2CM)
28 1-825-807-11 LOUDSPEAKER (13CM)
* 29 4-101-822-01 COVER, TOP (W21)
* 30 4-101-823-01 COVER, BOTTOM (W21)
* 31 1-828-903-11 CONNECTION CABLE
* 32 4-068-528-41 FOOT
4-384-096-01 SCREW (4X16), TAPPING, +P
4-365-808-01 SCREW (5), TAPPING
[ASSEMBLY INCLUDES]
