KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.

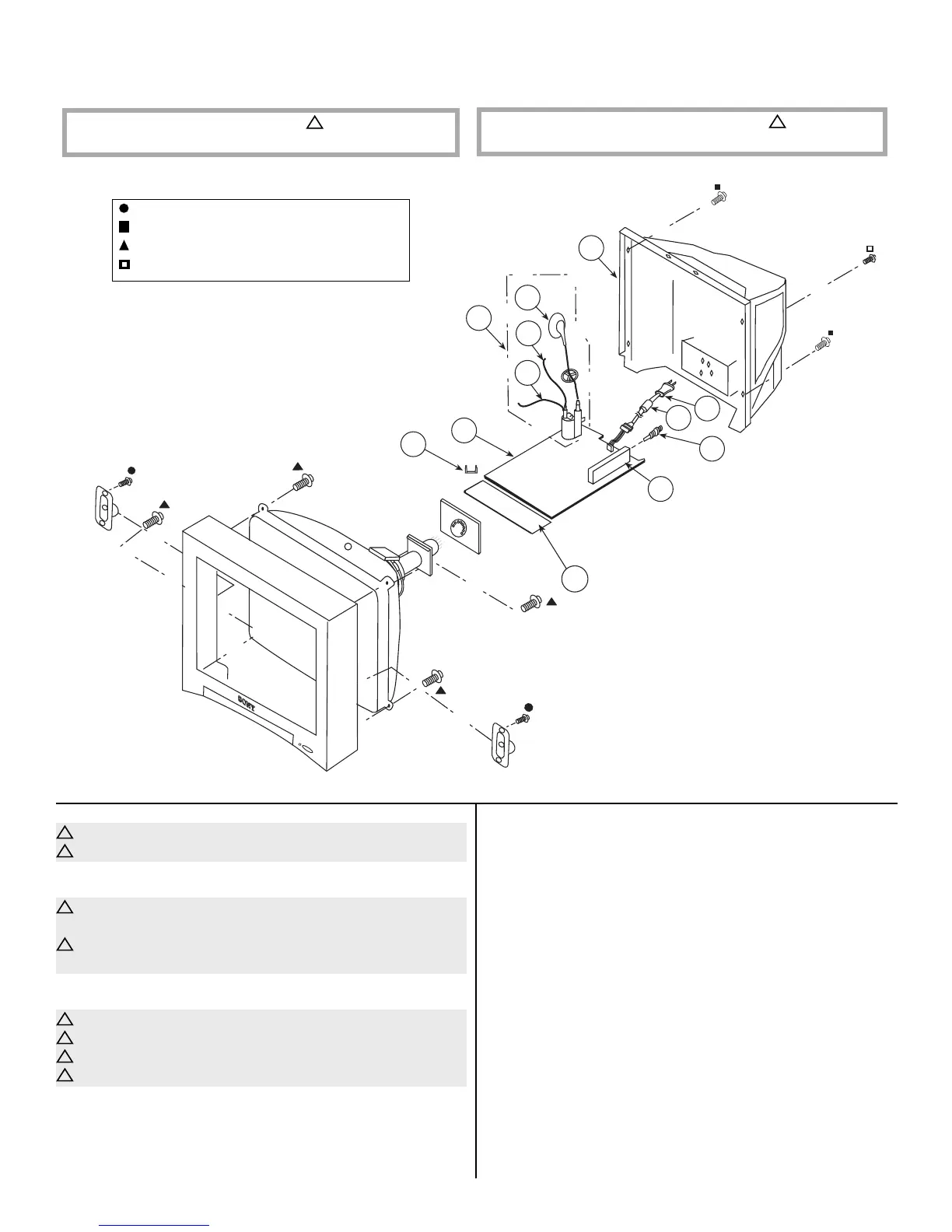

6-8. CHASSIS (KV-24FS120/25FS120 ONLY)
* 40 A-1415-580-A HB (VAR) BOARD, MOUNTED
!
41 8-598-593-50 TUNER, FSS BTF-WA421
!
42 1-766-374-11 PLUG, F-PIN
43 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
(KV-25FS120 L. SOUTH ONLY)
!
44 1-824-069-11 CORD, AC POWER(WITH CONNECTOR)
(ALL EXCEPT KV-25FS120 L. SOUTH)
!
44 1-757-840-12 CORD, POWER (WITH CONNECTOR)
(KV-25FS120 L. SOUTH ONLY)
45 4-102-310-01 COVER, REAR
!
46 1-453-336-11 FBT ASSY NX-4011//X4A4 [47-49]
!
47 1-251-642-52 CAP ASSY, HIGH-VOLTAGE
!
48 1-900-800-65 CONNECTOR ASSY, FOCUS LEAD
!
49 1-900-803-22 WIRE ASSY, G2 LEAD
42
50
51
44
45
47
48
49
46
43
40
41
* 50 A-1302-944-A A BOARD, COMPLETE
(ALL EXCEPT KV-25FS120 L. SOUTH)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 47-49)
* 50 A-1303-007-A A BOARD, COMPLETE
(KV-25FS120 L. SOUTH ONLY)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 47-49)
* 51 4-076-951-01 HINGE, PWB
4-384-096-01 SCREW (4X16), TAPPING, +P
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B)
To Next Page
