REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.

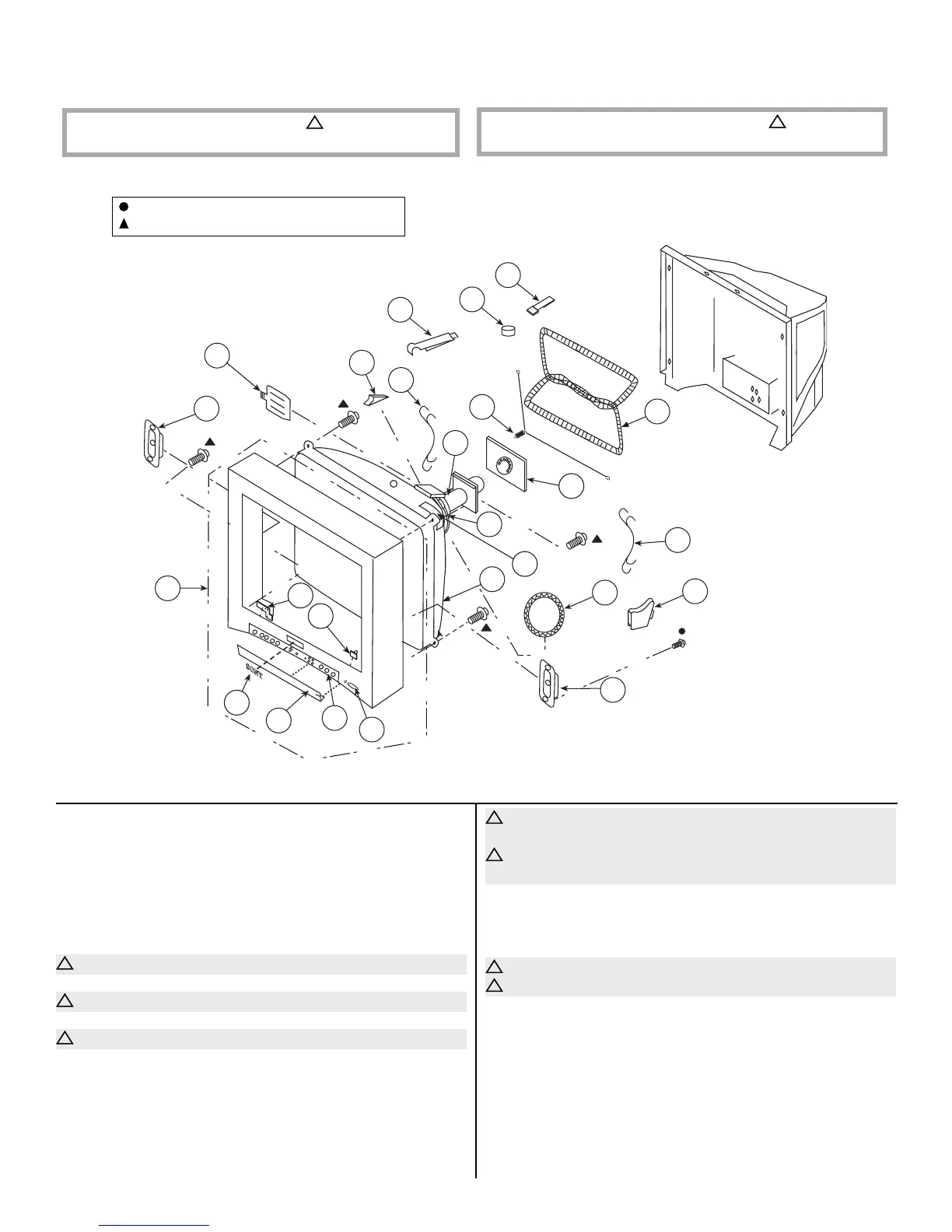

6-7. PICTURE TUBE (KV-24FS120/25FS120 ONLY)
1 X-4042-991-1 BEZNET ASSY [2-7]
2 4-046-160-31 EMBLEM, SONY NO.9
3 4-102-301-11 DOOR
4 4-102-307-01 LABEL, DOOR
5 4-102-305-11 BUTTON, POWER
6 4-102-306-01 GUIDE, LED/IR
* 7 4-083-303-01 SPRING, METAL
!
8 8-733-250-05 CRT 25RSN
9 4-089-346-01 CUSHION, DGC
!
10 1-451-475-11 DEFLECTION YOKE (Y25RSA)
!
11 1-452-896-11 COIL, NA ROTATION (RT-200)
12 4-102-536-01 SUPPORT, CRT(24)
* 13 4-080-810-21 BAND, DEGAUSS COIL
* 14 A-1415-605-A CV (VAR) BOARD, MOUNTED
!
15 1-419-509-21 COIL, DEGAUSSING
(ALL EXCEPT KV-25FS120 L. SOUTH)
!
15 1-456-576-11 DEGAUSSING COIL
(KV-25FS120 L. SOUTH ONLY)
16 4-083-414-01 PIECE A(110), CONV CORRECT
17 1-452-032-00 MAGNET,DISC
18 4-036-329-01 SPRING (B), TENSION
!
19 1-451-561-21 NECK ASSEMBLY
!
20 4-053-005-01 SPACER, DY
21 4-057-714-01 PIECE ASSY, TLH CORRECTION
22 4-102-312-01 CLIP, DGC
23 1-825-831-11 LOUDSPEAKER (15X6.5CM)
14
11
12
13
10
9
20
19
15
8
3
1
23
23
5
4
17
18
16
21
13
2
7
22
6
4-384-096-01 SCREW (4X16), TAPPING, +P
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
