11
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
Chassis Assembly
Claw
1
Push down on clips to release K Board, then unplug the 2 pin
woofer connector and move out of the way.
2
Press on catch tab to release A Board.
3
Disconnect remaining cables to allow A Board to be removed.
CV Board
A Board

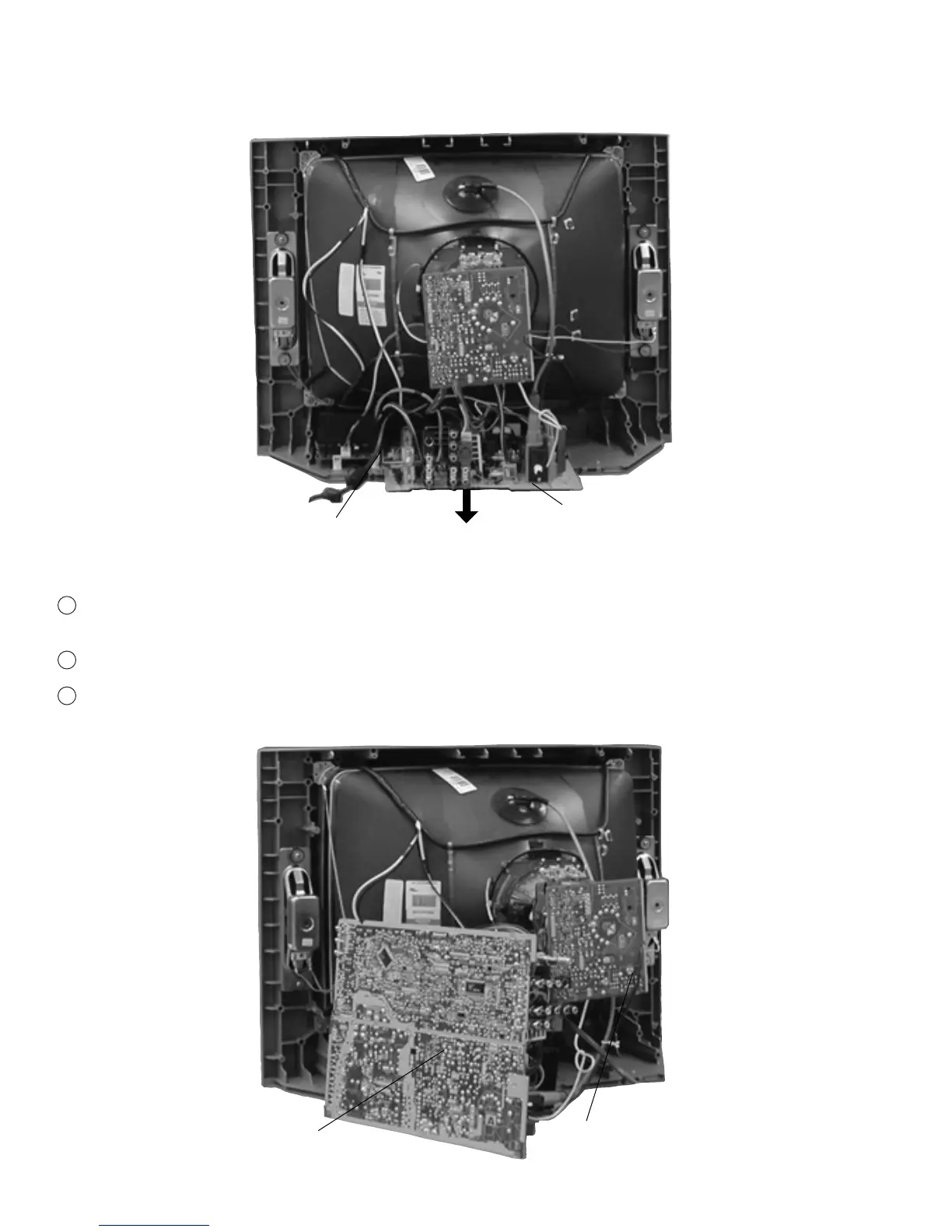

1-3. CHASSIS ASSEMBLY REMOVAL
1-4. SERVICE POSITION
To Next Page
