37
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120

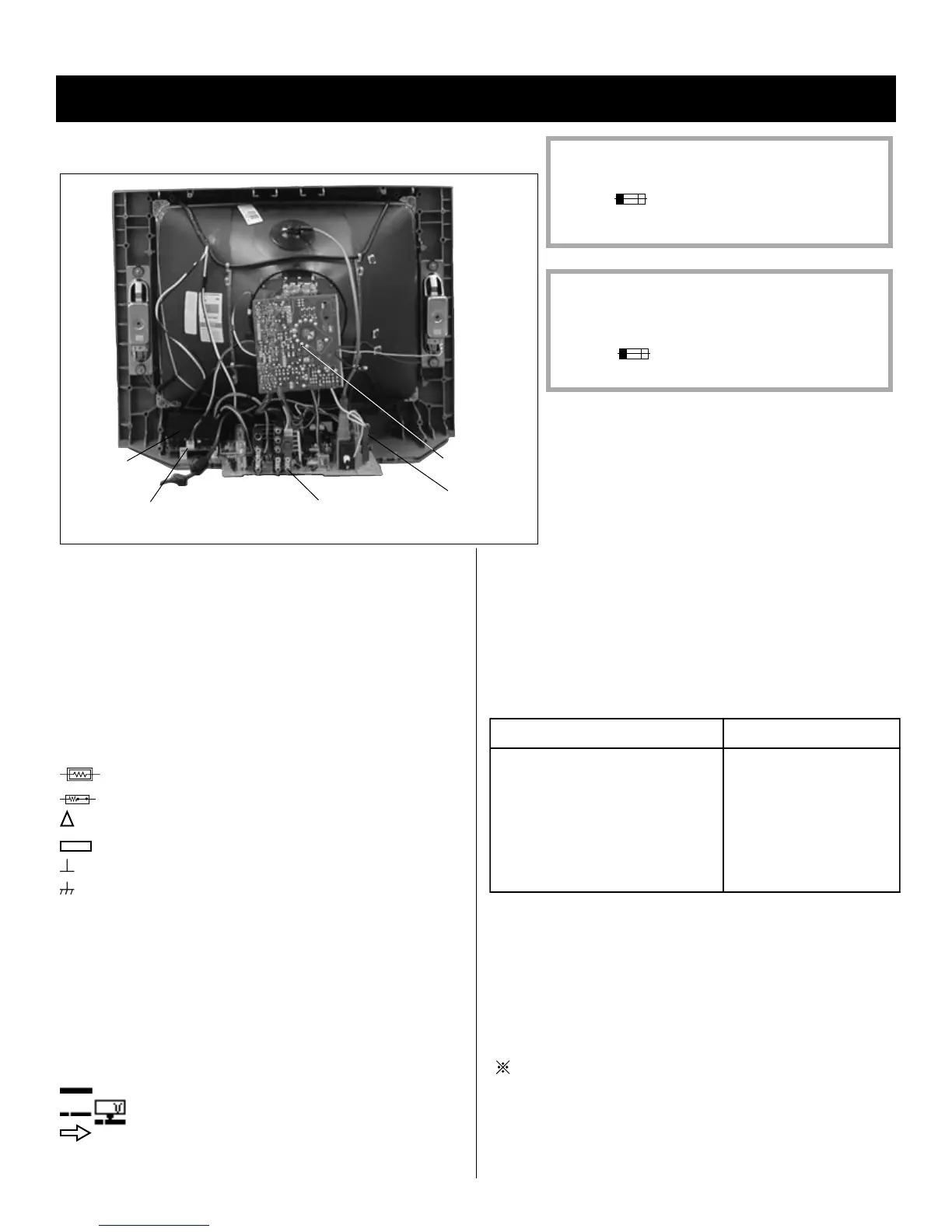

5-1. CIRCUIT BOARDS LOCATION
A Board
CV Board
K Board
(KV-21FA310 Only)
HR Board
(KV-21FA310
Only)
HB Board
(All except
KV-21FA310)
The components identifi ed by
X
in this basic schematic
diagram have been carefully factory-selected for each set in
order to satisfy regulations regarding X-ray radiation. Should
replacement be necessary, replace only with the value
originally used.
SECTION 5: DIAGRAMS
The components identifi ed by shading and
!
symbol are critical for
safety. Replace only with part number specifi ed.
The symbol indicates a fast operating fuse and is displayed
on the component side of the board. Replace only with fuse of the
same rating as marked.
Les composants identifi es per un trame et une marque
!
sont
critiques pour la securite. Ne les remplacer que par une piece portant
le numero specifi e.
Le symbole indique une fusible a action rapide. Doit etre
remplace par une fusible de meme yaleur, comme maque.
5-2. PRINTED WIRING BOARD AND
SCHEMATIC DIAGRAM INFORMATION
All capacitors are in µF unless otherwise noted. pF : µµF 50WV or less
are not indicated except for electrolytics and tantalums.
All electrolytics are in 50V unless otherwise specifi ed.
All resistors are in ohms. k=1000, M=1000k
Indication of resistance, which does not have one for rating electrical
power, is as follows: Pitch : 5mm Rating electrical power :
1
/
4
W in resistance,
1
/
10
W and
1
/
8
W in chip resistance.
: nonfl ammable resistor.
: fusible resistor.
: internal component.
: panel designation and adjustment for repair.
: earth ground
: earth-chassis
All variable and adjustable resistors have characteristic curve B, unless
otherwise noted.
Readings are taken with a color-bar signal input.
Readings are taken with a 10M digital multimeter.
Voltages are DC with respect to ground unless otherwise noted.
Voltage variations may be noted due to normal production tolerances.
All voltages are in V.
S : Measurement impossibillity.
: B+line.
: B-line. (Actual measured value may be different).
: signal path. (RF)
Circled numbers are waveform references.
REFERENCE INFORMATION
RESISTOR
: RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR
COIL
: LF-8L MICRO INDUCTOR
CAPACITOR
: TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
When replacing components identifi ed by
Y
, make the necessary
adjustments as indicated. If the results do not meet the specifi ed value,
change the component identifi ed by
X
and repeat the adjustment until
the specifi ed value is achieved.
(Refer to Section 3: Safety Related Adjustments on Page 17.)
When replacing the parts listed in the table below, it is important to
perform the related adjustments.
DY, T585, CRT, IC001, IC561,
IC600, C506, C507, C508, T511,
L510, C588, L588, C566, C561,
C563, D567, D568, D566, PH602,
R567, R568, R565, R566, R562,
R563, R561, R528……....A Board
HV HOLD-DOWN
RV565
Part Replaced (Y) Adjustment (X)
To Next Page
