54
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.

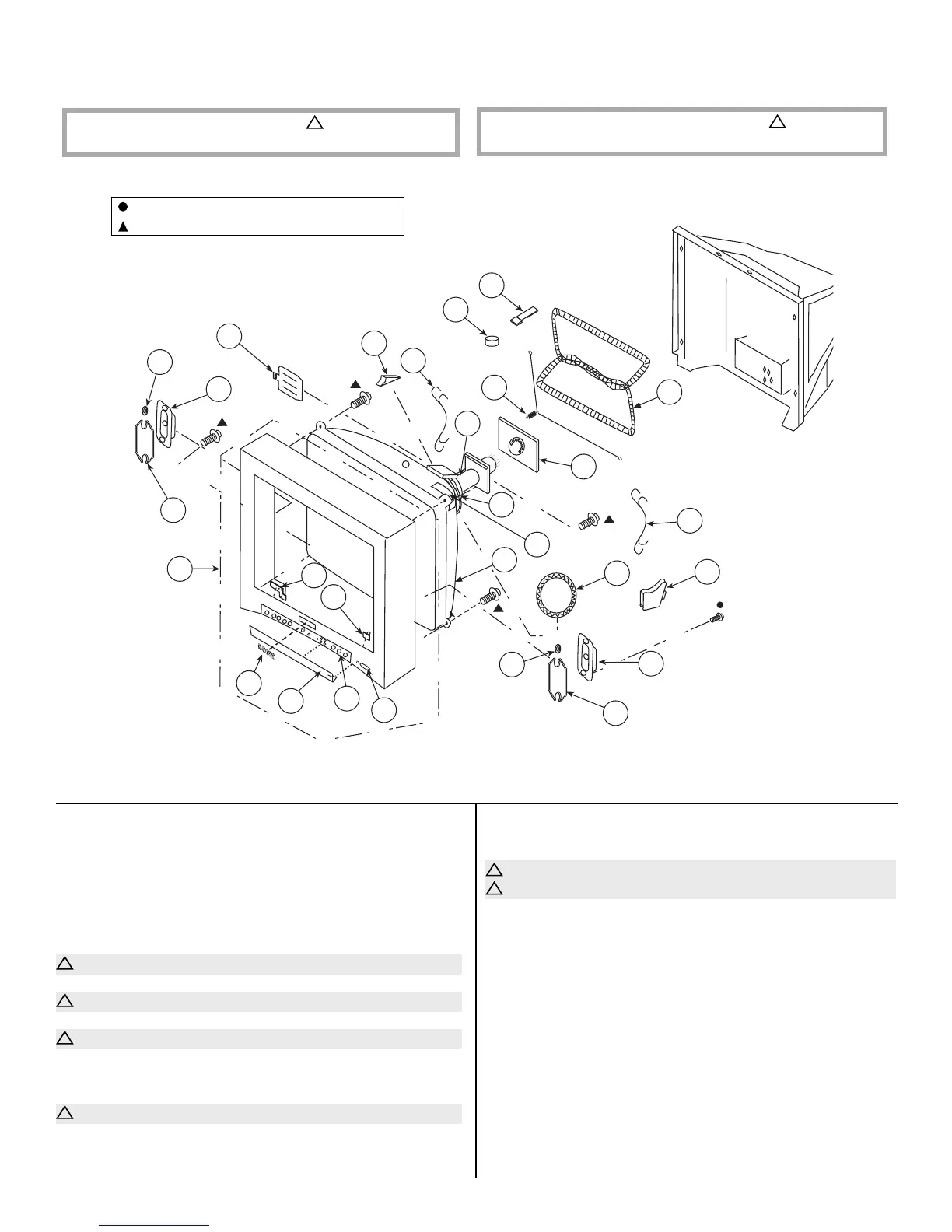

6-3. PICTURE TUBE (KV-21FM120 ONLY)
* 1 X-4042-989-1 BEZNET ASSY (21) [2-7]
2 4-046-161-21 EMBLEM, SONY NO.8
3 4-102-301-11 DOOR
4 4-102-307-11 LABEL, DOOR
5 4-102-305-11 BUTTON, POWER
6 4-102-306-01 GUIDE, LED/IR
* 7 4-083-303-01 SPRING, METAL
!
8 8-738-831-05 CRT 21RSN(SDP)
* 9 4-074-576-01 CUSHION, DGC
!
10 8-451-505-71 DY Y21RSA-V
!
11 1-456-285-11 COIL, NA ROTATION (RT-154)
12 4-102-537-01 SUPPORT, CRT(20)
* 13 4-080-810-21 BAND, DEGAUSS COIL
* 14 A-1410-919-A CV (VAR) BOARD, MOUNTED
!
15 1-456-153-11 COIL, DEGAUSSING
16 4-083-414-01 PIECE A(110), CONV CORRECT
17 1-452-032-00 MAGNET, DISC
* 18 4-375-394-01 SPRING, TENSION
!
19 1-451-561-21 NECK ASSEMBLY
!
20 4-053-005-01 SPACER, DY
21 4-057-714-01 PIECE ASSY, TLH CORRECTION
22 1-825-039-11 SPEAKER (15X6.5CM)
* 23 4-046-981-03 BRACKET, SPEAKER
* 24 4-374-745-91 CUSHION (A)
14
11
12
13
10
9
20
19
15
8
3
1
22
23
24
22
5
4
17
18
16
21
13
2
6
7
23
24
4-384-096-01 SCREW (4X16), TAPPING, +P
4-365-808-01 SCREW (5), TAPPING
