57
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
KV-20FS120/21FM120/21FS120/21FA310/24FS120/25FS120
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.

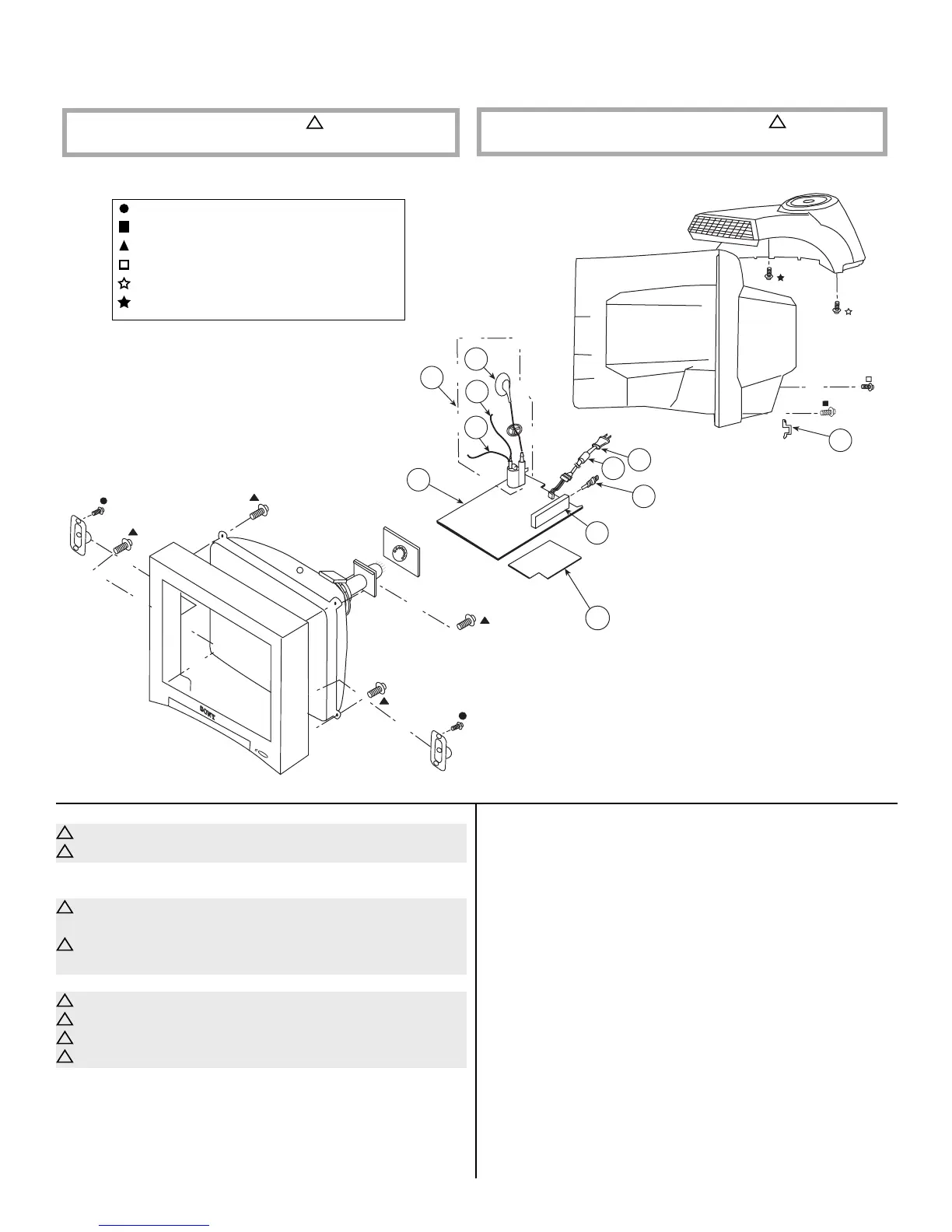

6-6. CHASSIS (KV-21FA310 ONLY)
42
49
44
46
47
48
45
43
40
41
50
* 40 A-1410-921-A K BOARD, MOUNTED
!
41 8-598-593-50 TUNER, FSS BTF-WA421
!
42 1-766-374-11 PLUG, F-PIN
43 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
(KV-21FA310 L SOUTH ONLY)
!
44 1-824-069-11 CORD, AC POWER (WITH CONNECTOR)
(KV-21FA310 L NORTH ONLY)
!
44 1-757-840-12 CORD, POWER (WITH CONNECTOR)
(KV-21FA310 L SOUTH ONLY)
!
45 1-453-316-21 FBT ASSY NX-1748//X4A4 [46-48]
!
46 1-251-642-52 CAP ASSY, HIGH-VOLTAGE
!
47 1-900-800-65 CONNECTOR ASSY, FOCUS LEAD
!
48 1-900-803-22 WIRE ASSY, G2 LEAD
* 49 A-1302-879-A A BOARD, COMPLETE
(KV-21FA310 L NORTH ONLY)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 46-48)
* 49 A-1302-953-A A BOARD, COMPLETE
(KV-21FA310 L SOUTH ONLY)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 46-48)
* 50 4-081-980-11 HOLDER, AC CABLE
4-384-096-01 SCREW (4X16), TAPPING, +P
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT (B)
4-365-808-01 SCREW (5), TAPPING
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
