Sony TRINITRON KV-DA29M81 - Page 89

– 99 –
KV-DA29M81
RM-W105

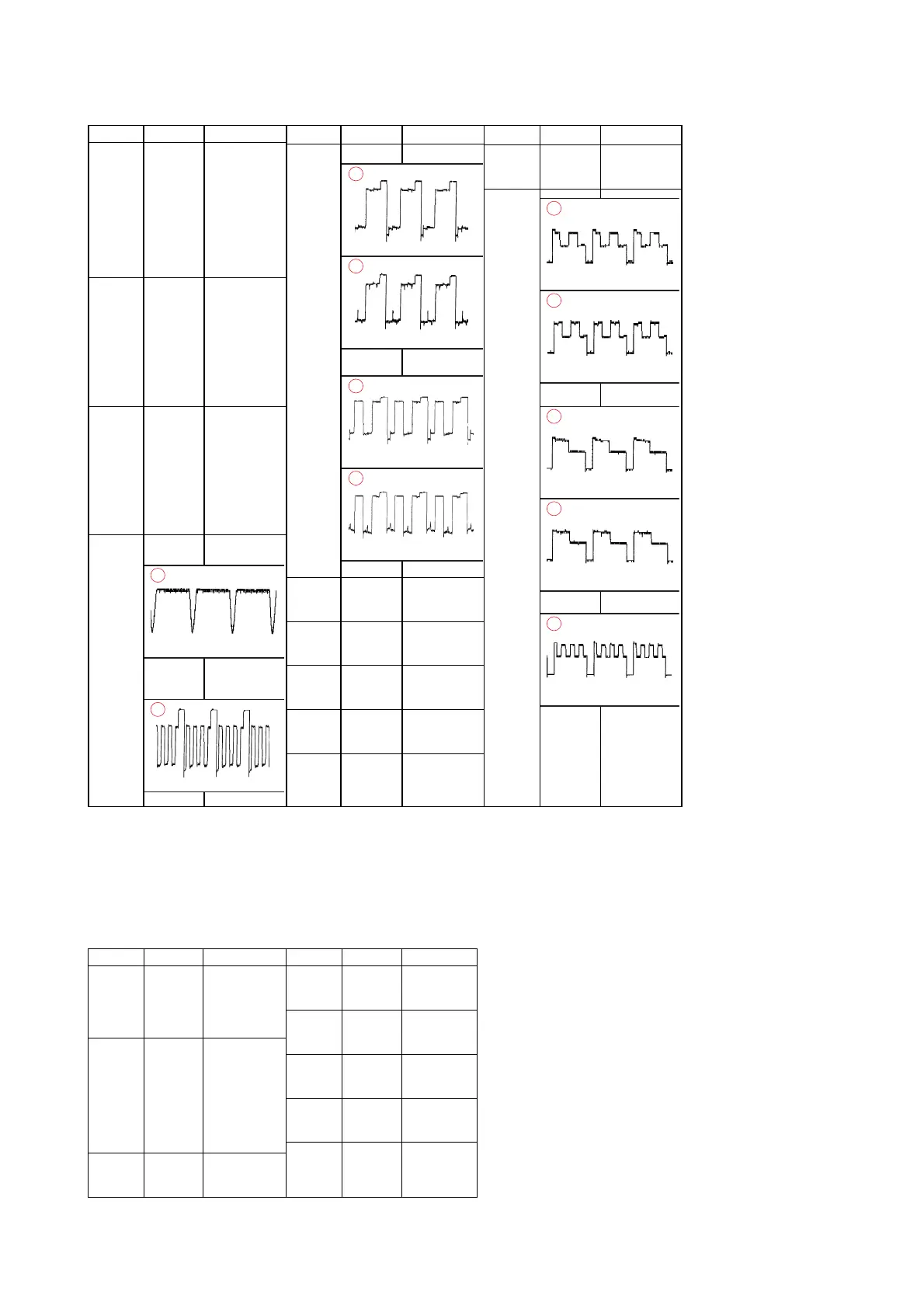

C BOARD VOLTAGE LIST AND WAVEFORM
Ref Pin No. Voltage[v]
IC9001 1 3.5
2 12.0
3 3.3
40
5 8.1
6 203.0
7 (122)[*]
8 (160)[156]
9 (122)[121.7]
IC9002 1 3.5
2 12.0
3 (3.3)[*]
40
5 8.0
6 203
7 123.8
8 (159.6)[156.7]
9 123.3
IC9003 1 3.5
2 12.0
3 3.3
40
5 8.2
6 203
7 (115.9)[113.7]
8 (155.6)[148.4]
9 (115.6)[113]
J9001 G2 276
H1 0
25.60Vp-p
4
H2 0
KB (*)[148]
156.0Vp-p
3
Ref Pin No. Voltage[v]
Ref Pin No. Voltage[v]
KG (158)[156]
132.0Vp-p
PA L
2
118.0Vp-p
NTSC
2
KR *
142.0Vp-p
PA L
1
140.0Vp-p
NTSC
1
Q9001 B 7.5
C 0.1
E 4.3
Q9009 B 3.4
C0
E 4.0
Q9010 B 3.3
C0
E 4.0
Q9011 B (*)[3.6]
C0
E4.2
Q9012 B 0.1
C (*)[0.2]
E0
4.80Vp-p
PA L
5
5.0Vp-p
NTSC
5
4.6Vp-p
PA L
6
4.4Vp-p
NTSC
6
5.0Vp-p
7
Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]
IC3800 1 *
2*
3*
4*
5*
IC6300 1 4.4
2 5.9
3 6.4
40
5 5.2
6 5.9
7 0.3
8 12.0
Q6300 B 0.5
C 2.4
E0
DL BOARD VOLTAGE LIST
Q6301 B -0.2
C 98.8
E0
Q6302 B 7.6
C0
E0
Q6303 B 0.3
C 0.6
E0
Q6304 B 0.2
C 0.5
E0
