Sony UP-895 - Service Information (Section 2); Board Layout and Disassembly

2-1
UP-895/(E)
SE-532 board
MA-99 board
SU-52 board
SE-531 board
KY-454 board
2-1. Board Layout
Section 2
Service Information
2-2. Disassembly
n

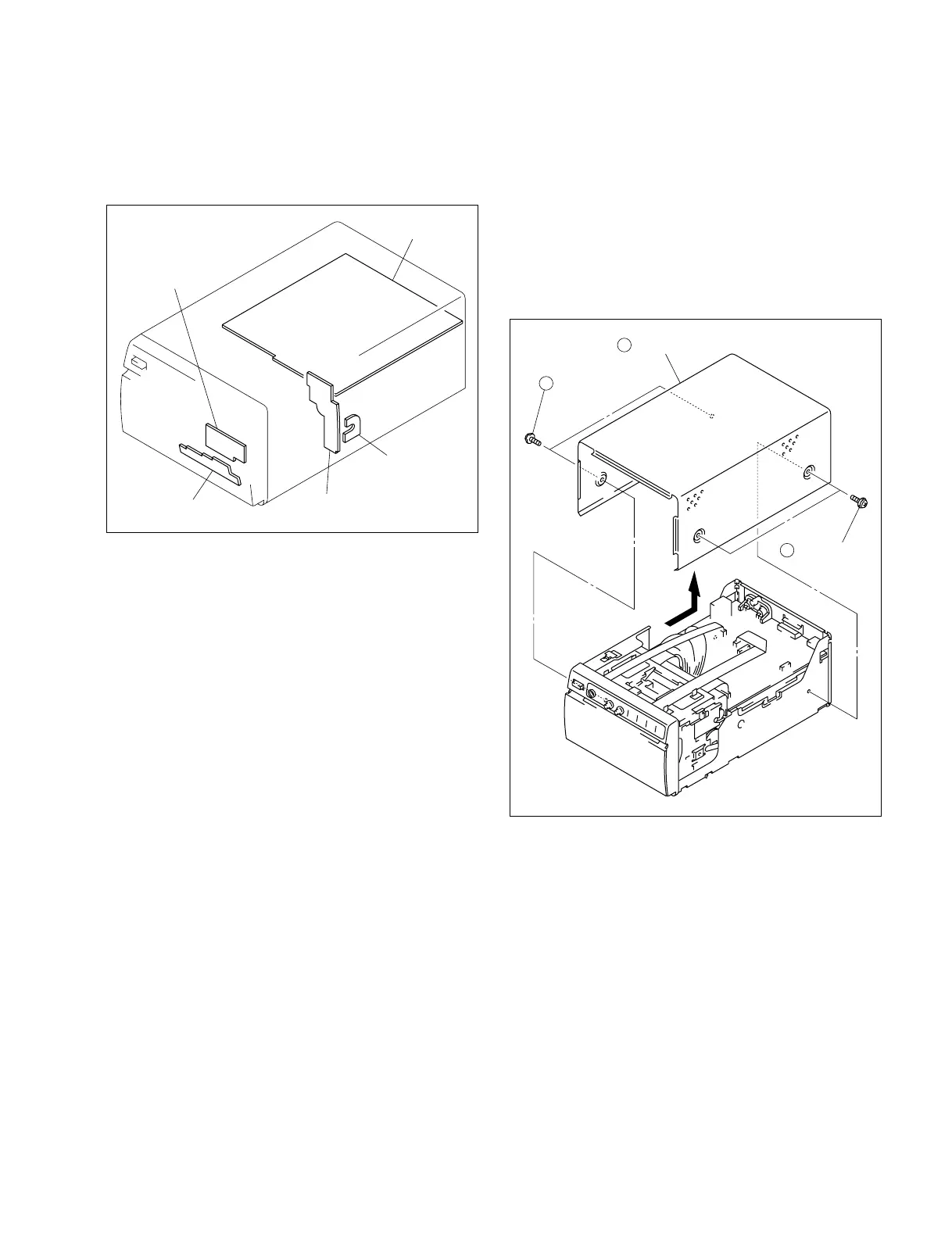

Remove the top cover in the order shown in the figure
during removal.
Removal of Top Cover
2
Top cover
1
M3 case
fixing screw
1
M3 case
fixing screw
