Sony UP-895 - Exploded Views

8-2
UP-895/(E)

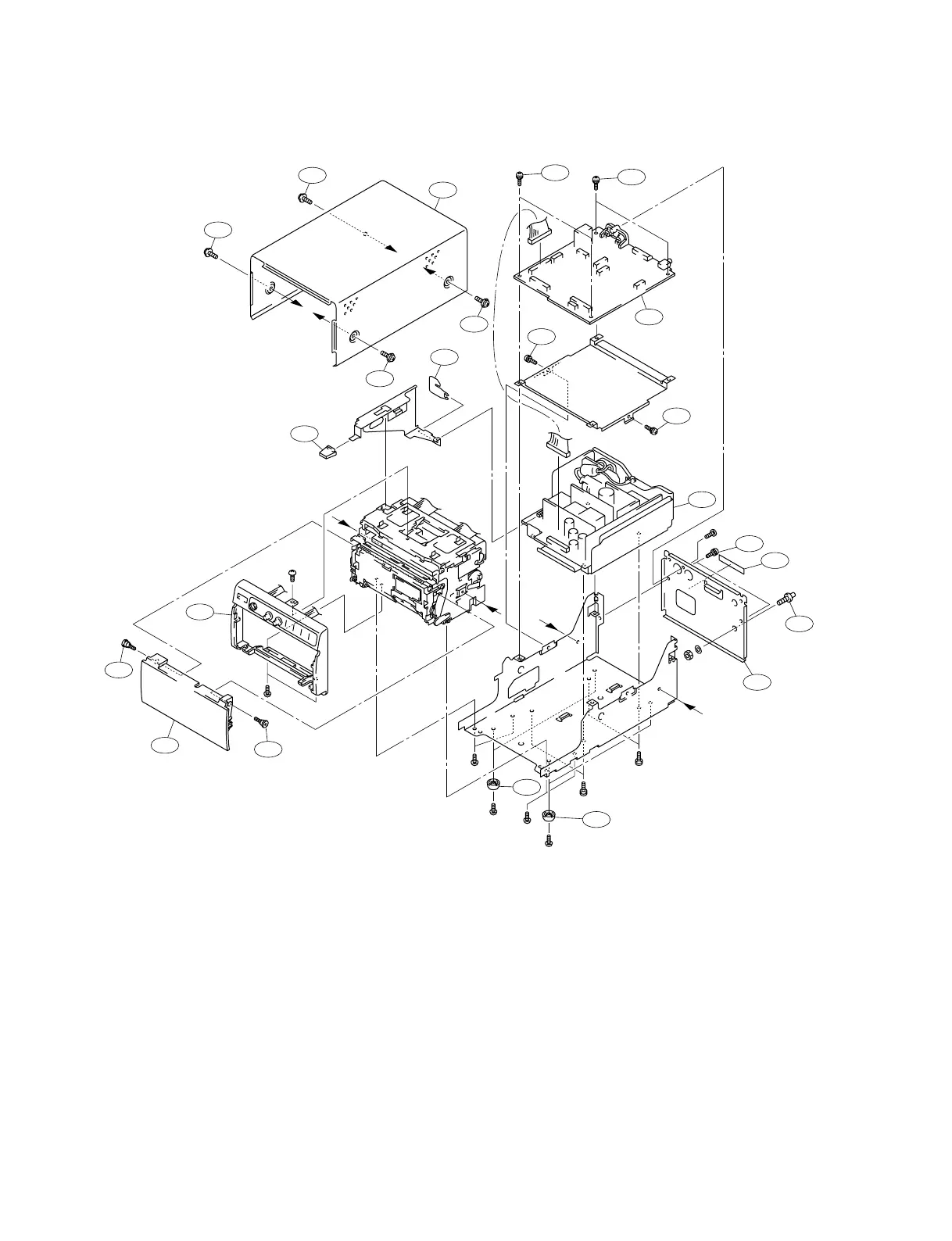

Front Panel and Switching Regulator
14
14
11
6
2
7
7
10
14
13
1
13
3
12
9
13
5
4
12
14
8
13
13
A
B
C
D
C
D
PS 3x6
LW6
N6
BTP 3x8
PS 3x6
BVTT 3x6
BVTT
3x6
BVTT 3x6
BVTT
3x6
BVTT
3x6
BVTT
3x6
A
B
1 A-8323-913-A o MOUNTED CIRCUIT BOARD, MA-99
2 1-418-820-11 s PANEL UNIT, FRONT
3 ! 1-468-456-12 s REGULATOR, SWITCHING
4 3-175-740-01 o TERMINAL
[for UP-895MD(UC,SY), UP-895CE(CE)]
5 3-179-847-01 o LABEL(NORTHERN EUROPE),CAUTION
[for UP-895CE(CE), UP-895MD(SY)]
6 3-187-313-21 o BUTTON, POWER
7 3-623-875-02 s SCREW,STEP
8 3-623-889-01 o TOP COVER
9 3-623-894-02 o PANEL,REAR
[for UP-895CE(CE), UP-895MD(UC,SY)]
3-623-894-12 o PANEL,REAR
[for UP-895(J,UC), UP-895MD(J)]
10 3-623-912-03 s PANEL,DOOR [for UP-895(J,UC)]
3-623-912-13 s PANEL,DOOR [for UP-895MD(J,UC,SY)]
3-623-912-23 s PANEL,DOOR [for UP-895CE(CE)]
11 3-623-919-01 o STOPPER,ROD
12 3-734-866-01 s FOOT
13 4-034-937-01 s SCREW (M3X8), TAPPING (ST)
14 4-886-821-11 s SCREW,M3X6 CASE (SILVER)
8-2. Exploded Views
No. Part No. SP Description No. Part No. SP Description
